4. INTERFACE BETWEEN NC AND PMC

B–62835EN/01

162

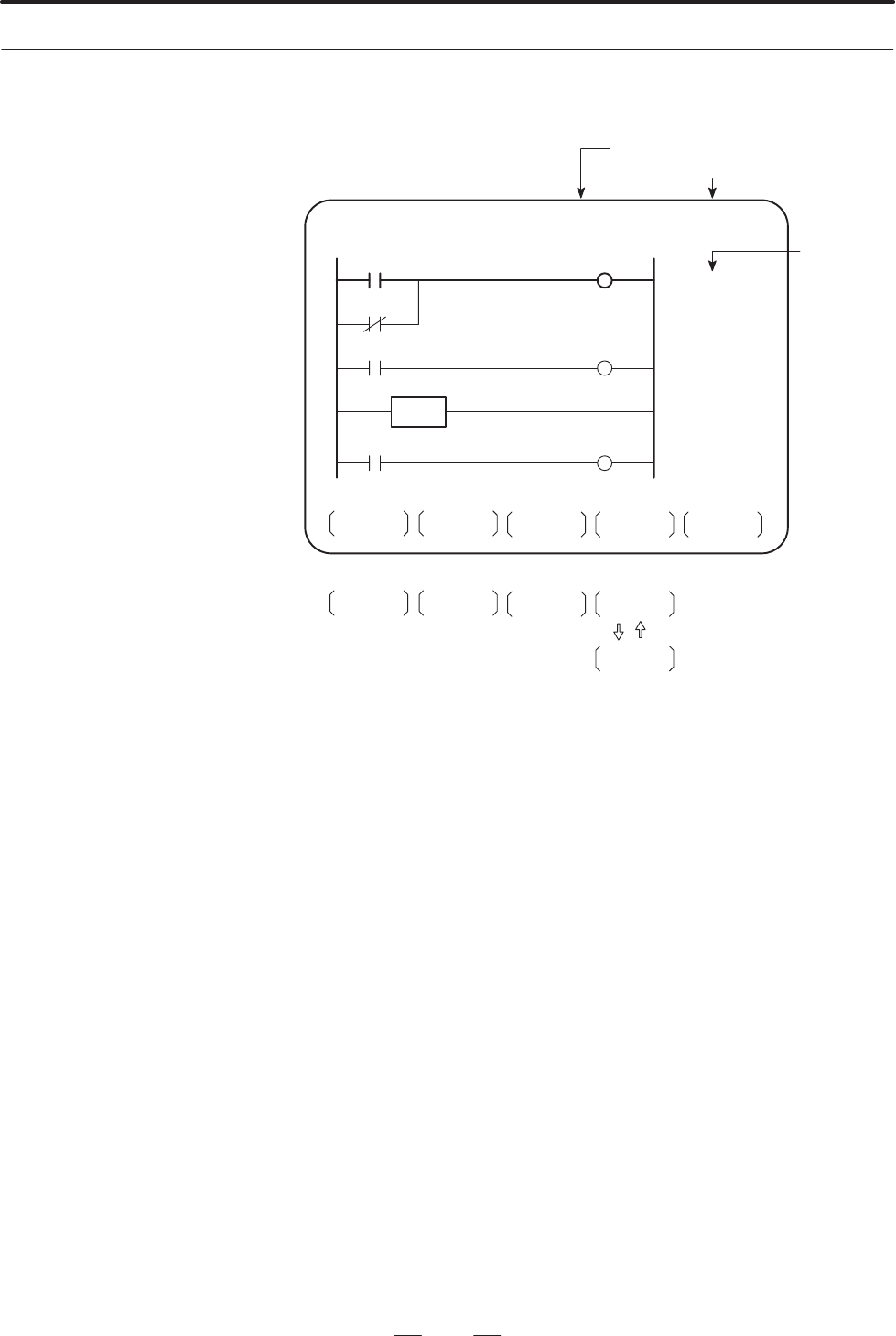

Press soft key [PMCLAD], and a sequence program is displayed

dynamically and operation monitoring can be confirmed :

LADDER NET 0001–0004

LOG1

TOP

BOTTOM SRCH

Number of net displayed

Comment

MONIT RUN

LOG1

X008.4 *ESP

PORD POR

END1

ALWAYS1

EMERGENCY

POWER ON

STOP

RESET

W–SRCH N–SRCH

Ladder display

F–SCRH ADRESS

Other soft keys

SYMBOL

Switched each

time pressed

RUN/STOP status

1. Low brightness display Contacts : open Relay : off

2. High brightness display Contacts : closed Relay : on

1. Use the page keys and cursor keys to change display positions.

2. [TOP]:Searches top of ladder.

3. [BOTTOM]:Search bottom of ladder.

4. Address.bit,[SRCH] or Signal name, [SRCH]

5. Address.bit,[W–SRCH] or Signal name ,[W–SRCH]

6. Net no.[N–SRCH]:Ladder is displayed from the specified net.

7. Functional instruction no. [F–SRCH] or Functional instruction

name[F–SRCH]

8. [ADRESS]:Signal is displayed by address and bit no.

9. [SYMBOL]:Signal is displayed by signal name (symbol).

(If symbol is not registered at program preparation time, the address

of the signal is displayed).

[Remarks]

D The search function searches a signal in the forward direction and

displays the ladder with the searched signal at its head. Because there

may exist plural contacts, repeat the search operation to find plural

locations, repeat the search operation to find plural locations with the

specified signal.

D If a specified signal is not found up to the end of the program (ladder),

execution returns to the head of a program and search continues.

4.3.2

PMCLAD SCREEN

D Contents displayed

D Search method
