4. INTERFACE BETWEEN NC AND PMC

B–62835EN/01

172

The DPL/MDI panel is used to set PMC system parameters and create and

execute the sequence program.

(1) Setting and displaying PMC system parameters (SYSTEM PARAM)

– The type of counter data (BCD or binary) can be selected.

(2) Editing the sequence program (EDIT)

– The sequence program can be edited (input, addition, search, and

deletion) by using the ladder mnemonics display.

(3) Executing the sequence program (RUN/STOP)

– The execution of the sequence program can be started and

stopped.

NOTE

1 The indication at the bottom left of each key applies to the

PMC programmer (DPL/MDI) function.

2 For keys such as the key, the indication on the left

applies when the key is pressed once and that on the right

applies when the key is pressed twice.

(Example) Pressing the key once enters ”D” and

pressing it twice enters ”R.”

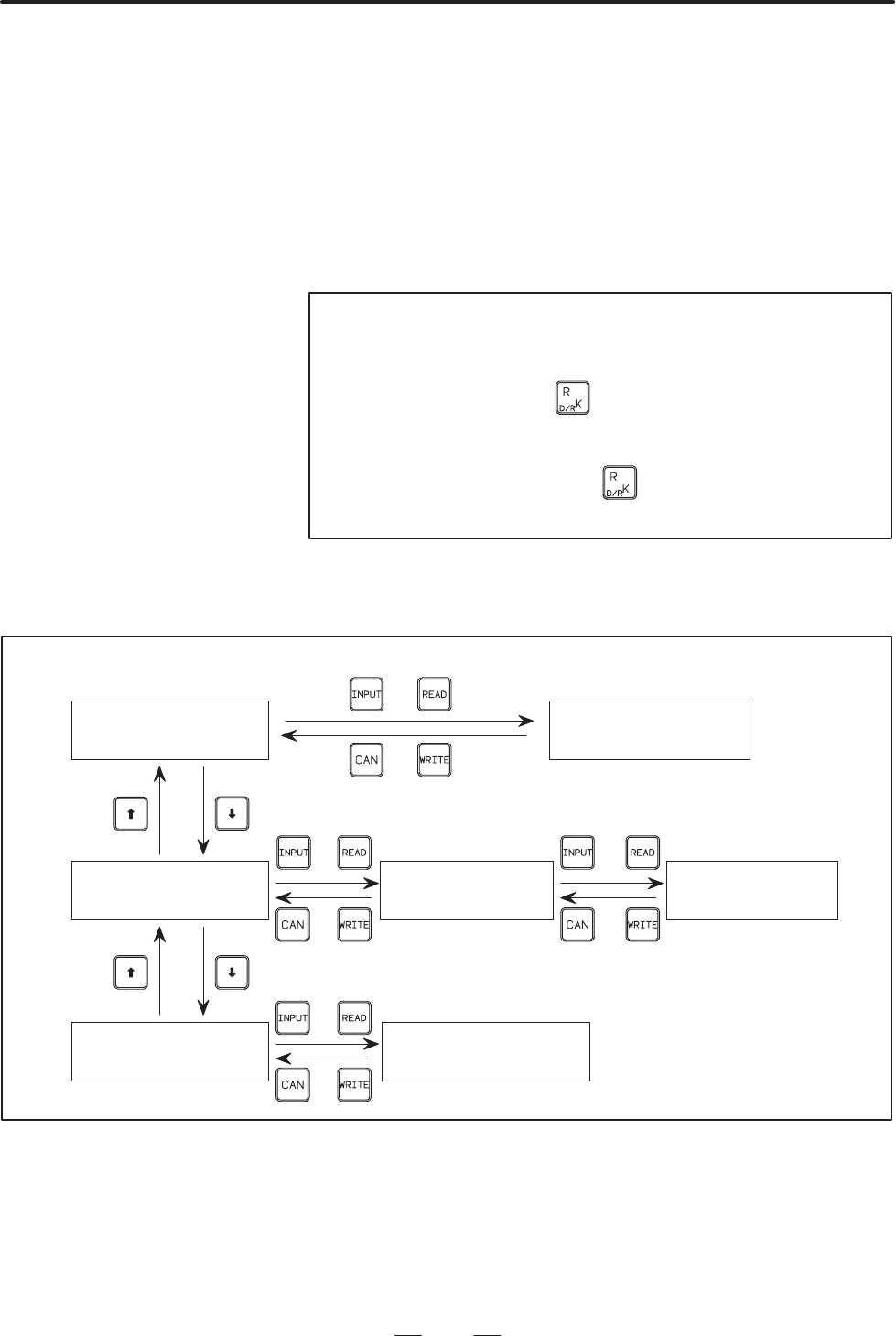

The screen configuration for the PMC programmer (DPL/MDI) function

is as follows:

PMC PRG MENU 1/3

>RUN/STOP

PMC PRG MENU 2/3

>EDIT

PMC PRG MENU 3/3

>SYSTEM PARAM

LADDER RUN/STOP

MONITOR (STOP)

PMC EDIT 1/1

>LADDER

CTR TYPE=BCD

(BINARY=0/BCD=1)

N0001

RD X0000.0

PMC programmer menu Sequence program start and stop

PMC editing menu Editing ladder mnemonics

Setting and displaying PMC system parameters

4.4

OPERATION ON THE

DPL/MDI
