7. AC SPINDLE (ANALOG INTERFACE)
245

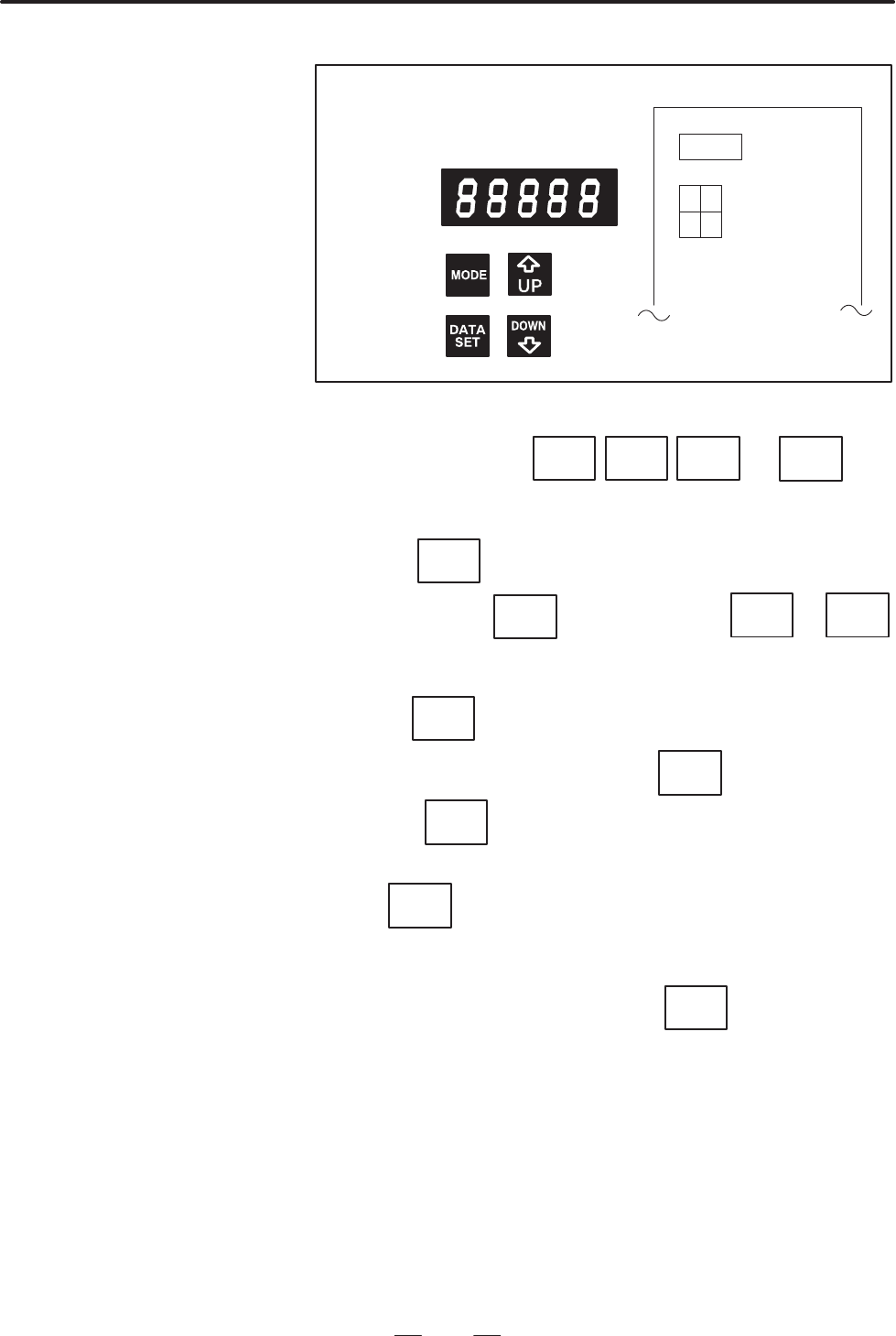

Parameters can be set and confirmed
through the display and the setting switch
on the PCB.
PCB
Display
Setting
switch
Display
Setting
switch
1. If the PCB is mounted a jumper SH, set it to SET.
2. Press the setting switch
MODE
,
DATA
SET
,
⇑
UP
and
DOWN
⇓
at the
same time for more than 1 second and when the display shows FFFFF,
release the buttons.
3. Press the
MODE button and a parameter (mode) no. is displayed.
4. Press and hold the
MODE button and press the
⇑
UP
or
DOWN
⇓
button, then the number increases or decreases by 1.
5. Value of parameter is shown on the display in 4 digits about 0.5 second
after the
MODE button is released.
6. Value of parameter increases by one by
⇑
UP
button and decreases
by one by
DOWN
⇓
button.
7. Perform the same operation for another parameters.
8. Press
DATA
SET
button at last.
When the display shows 88888, the setting value is stored in memory.
* If you turn off power before pressing
DATA
SET
button, the values of
parameters return to the previous values.
