4.INTERFACE BETWEEN NC AND PMC

173

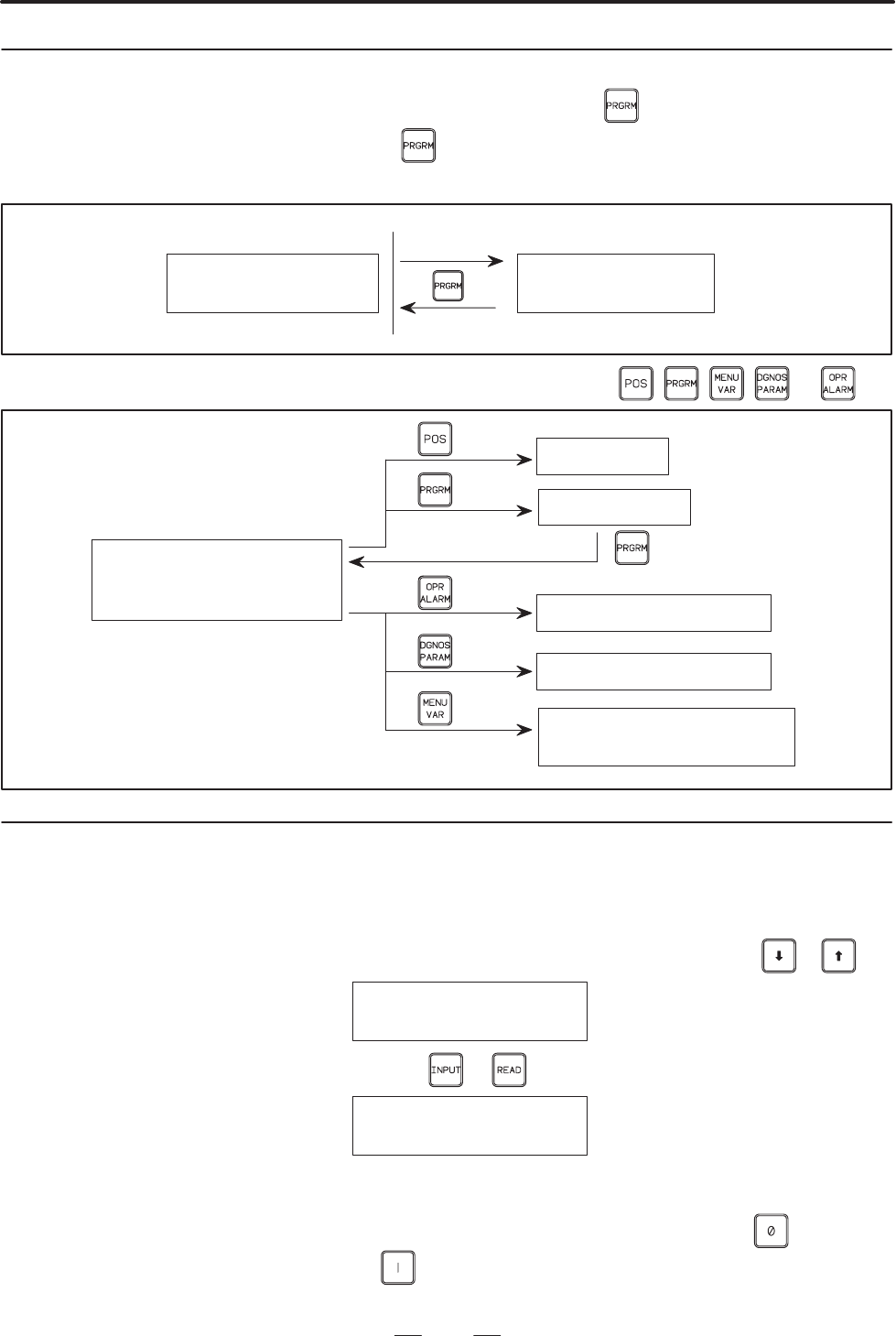

To operate the PMC programmer, set K17#1 of the keep relay area for

PMC parameters to 1, then press the

key two times on the DPL/MDI

(press the

key further when the program screen is selected), thus

causing the PMC programmer menu to be displayed.

<O0001> N010 G90

G01 G43 X10 ;

PMC PRG MENU 1/3

>RUN/STOP

Program screen PMC programmer menu screen

Can be switched only when K17#1 = 1.

To return to the CNC screen, press the , , , , or key.

PMC programmer screen

(PMC programmer menu)

(PMC editing menu)

Current

Position screen

Program screen

Alarm/Message screen

Parameter/Diagnostic screen

Offset/Setting/Macro

Variable screen

(K17#1=1)

Selecting SYSTEM PARAM on the PMC programmer menu displays the

system parameter screen. If the sequence program is running, selecting

this function automatically stops the program.

1 Display the PMC programmer menu.

2 Display the SYSTEM PARAM item by pressing the

or key.

PMC PRG MENU 3/3

>SYSTEM PARAM

3 Press the or key. The system parameter screen appears.

CTR TYPE = BIN

(BINARY=0/BCD=1)

4 The current counter data type is displayed on the screen.

(a) Specify the type of the counter value to be used for the CTR

functional instruction, as binary or BCD (enter

for binary or

for BCD).

4.4.1

Selectingthe PMC

Programmer Menu

4.4.2

Setting and Displaying

System Parameters

(SYSTEM PARAM)
