7. AC SPINDLE (ANALOG INTERFACE)

B–62835EN/01

240

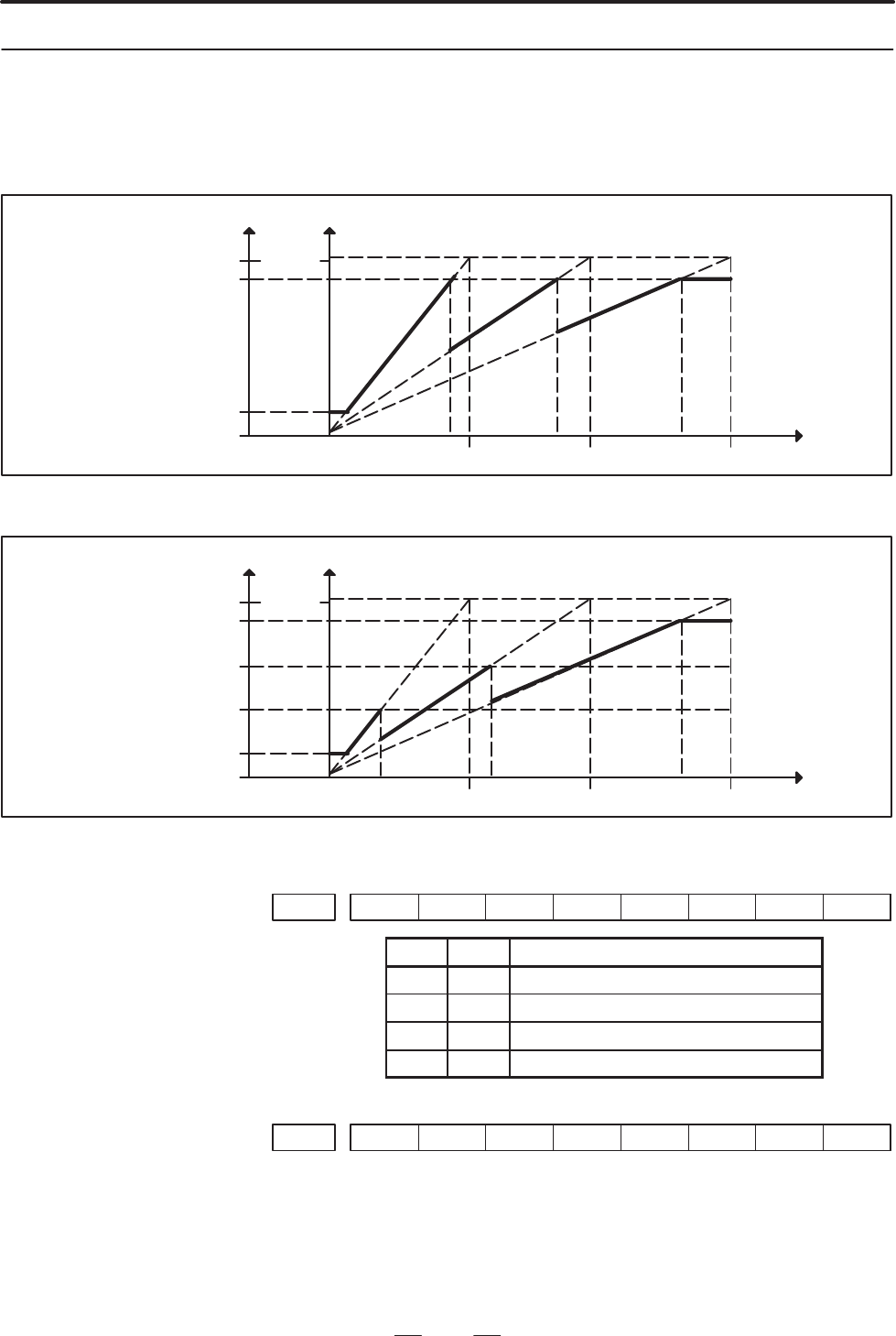

1 Gear change method A(PRM3705#2=0)

SVC Motor speed

(4095) 10V

PRM 3736

Max

Gear 1 Gear 2 Gear 3

S code

0 PRM 3741 PRM 3742 PRM 3743 (RPM)

PRM 3735

2 Gear change method B(PRM3705#2=1)

SVC Motor speed

(4095) 10V

PRM 3736

Max

Gear 1 Gear 2 Gear 3

S code

0 PRM 3741 PRM 3742 PRM 3743 (RPM)

PRM 3735

PRM 3752

PRM 3751

TCW3706

CWM

#5 #4 #3 #2 #1 #0

TCW CWM Sign of output voltage

0 0 + with M03 or M04

0 1 – with M03 or M04

1 0 + with M03, – with 04

1 1 – with M03, + with M04

3705

#6 #5 #4 #3 #2

SGB

#1 #0

#2 (SGB) Spindle speed taken when gear is changed is

0 : Max. speed for each gear

1 : Set by respective parameters (PRM542, 543, 585, 586)

7.1.2

Calculation of S Analog

Voltage and Associated

Parameters
