2. HARDWARE

B–62835EN/01

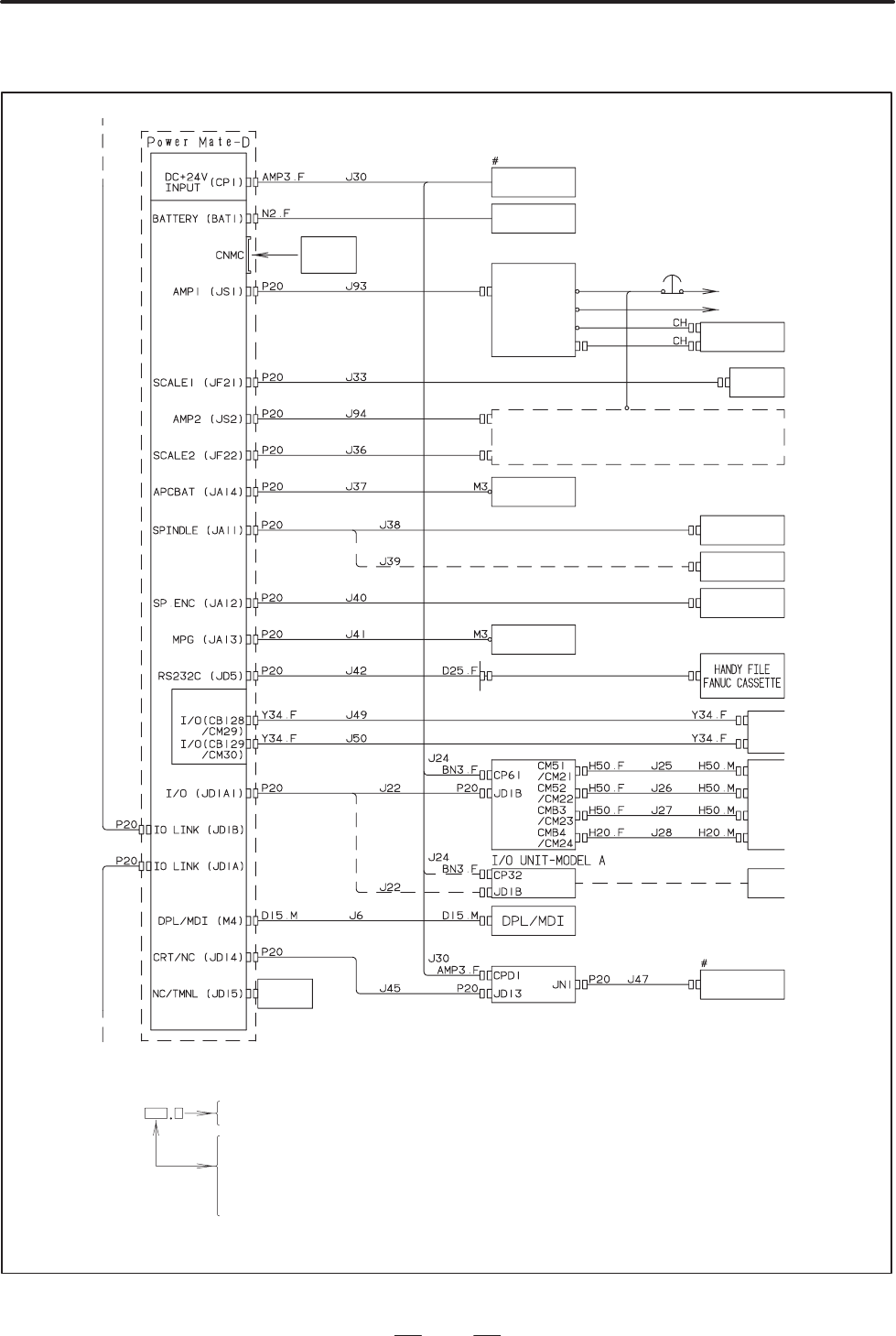

b)        

Note 1 : Connector and terminal symbols

M : Male connector

F : Female connector

H50 : Honda Tsushin MR connector (50 pins) BN3 : Burndy, brown (3 pins)

H20 : Honda Tsushin MR connector (20 pins) N2 : Japan Aviation Electronics (2 pins)

AMP3 : AMP Japan connector (3 pins) Y34 : Yamaichi (34 pins)

D15 : D–sub connector (15 pins) M3 : M3 screw terminal

D25 : D–sub connector (25 pins) CH : Varies with the AC motor

P20 : Honda Tsushin PCR connector (20 pins)

Note 2 : The +24 VDC power supply (marked #) and mode selection switch (marked #) should be prepared by the customer.

Note 3 : All cables except the RAM battery back–up battery cable should be prepared by the customer.

Emergency stop

100VAC, 1φ

200VAC, 3φ

Separate type

pulse corder

1st axis servo motor

(Built–in type serial

pulse coder)

2nd axis servo amplifier/2nd axis servo motor/built–

in type serial pulse coder/separate type pulse coder

Battery 6V for ab-

solute pulse coder

Analog spindle

controled circuit

Serial spindle

controled circuit

Position coder

Relay connector

Manual pulse

generator

I/O card

Power

magnetic

Power

magnetic

Power

magnetic

CRT/MDI unit

Switch for selec-

tion mode

Next Power Mate

Terminal unit

(PCR connec-

tor)

Power supply P.C. board

Base P.C. board

Memory

card

+24VDC power

supply

Battery 3V for

RAM battery backup

1st axis servo

amplifier

Upper control unit

Built–in I/O

card
