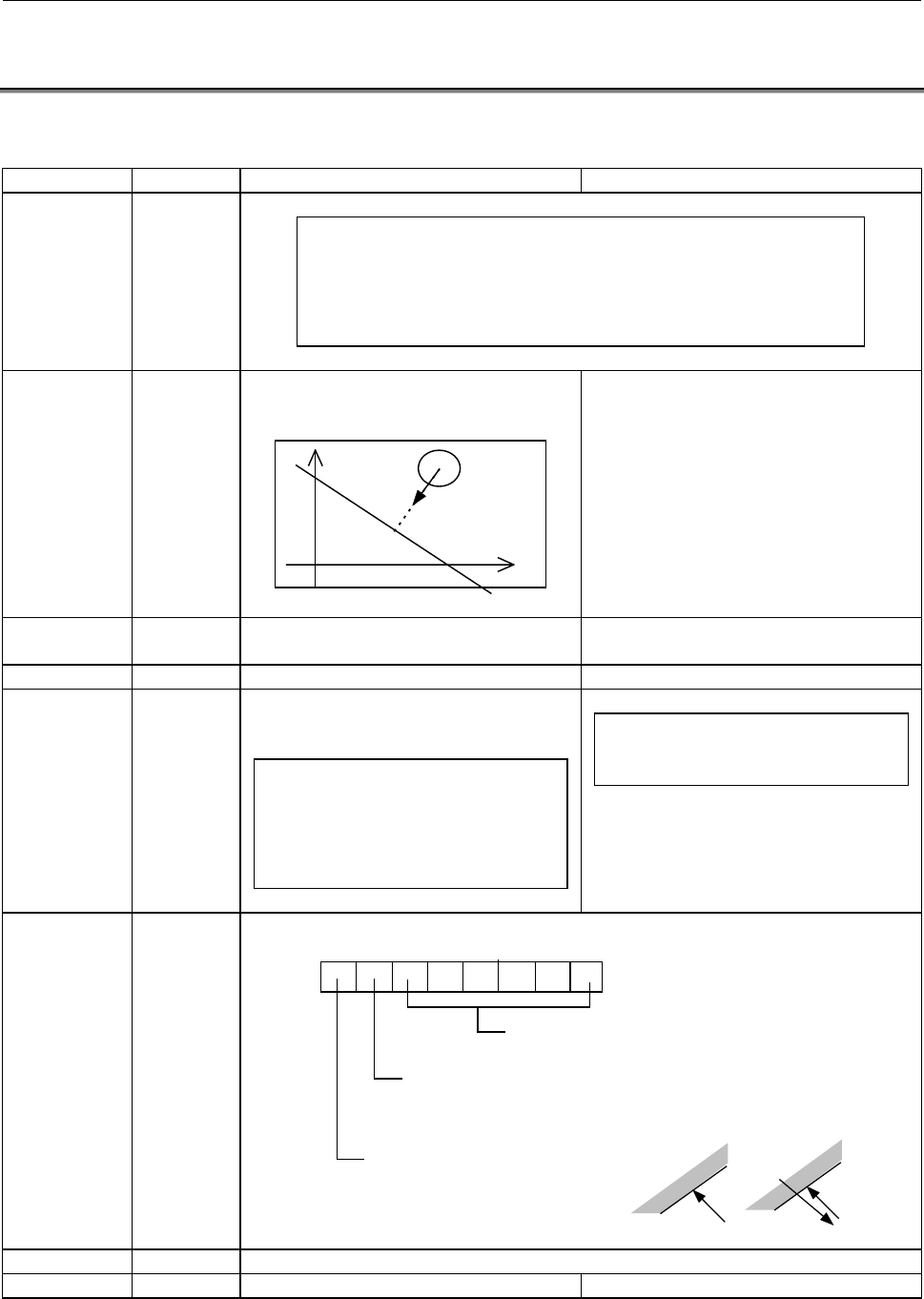

B-63343EN/02 USER PROGRAM 7.PMC CUSTOMIZING TOOLS

- 105 -

7.9 GUIDANCE HANDWHEEL CONTROL SIGNALS

1) Custom macro program <--> CNC interface

Address Size Line Circle

R961 1 byte

0 : Not execute line nor circle

1 : Line

2 : Circle (CW)

3 : Circle (CCW)

R962 to R965 4 bytes X-axis approaching direction

(vector component)

Tool

X-axis center (X

)

R966 to R969 4 bytes Z-axis approaching direction

(vector component)

Z-axis center (Z

)

R970 to R973 4 bytes Distance from origin to a line (P) Radius of a circle (R)

R974 1 byte Moving direction at rotating a guidance

handwheel to normal direction

0 : +90 degrees to approaching

direction

1 : -90 degrees to approaching

direction

0 : Cut inside of a circle

1 : Cut outside of a circle

Note)Moving direction at rotating a guidance

handwheel to normal depends on a value of

R961

R975 1 byte

#7 #0

Setting of limit available or not

0 : Not available

1 : Available

Setting of limit area at limit function being available

0 : Area of approaching direction is forbidden

1 : Opposite area of approaching direction is forbidden

Set 0 always

R979 1 byte Information of setting change

R980 to R983 4 bytes Distance from actual position to a line Distance from actual position to a circle
