1 This function is enabled only when bit 7 (ABSPS) of parameter No.

5issetto1.

2 This function can be used only with the peripheral equipment control

interface. When this function is used, the direct command interface

cannot be used.

3 When synchronous processing is being performed with this function,

the setting of bit 7 (ABSPS) of parameter No. 5 cannot be modified.

4 When this function is used, and t he alarm output command signal

DSAL (Yy+0#3) needs to be turned on, the signal must be turned on

2 msec or more before the response data read completion signal

(ABSRD) is inverted. See the timing chart below.

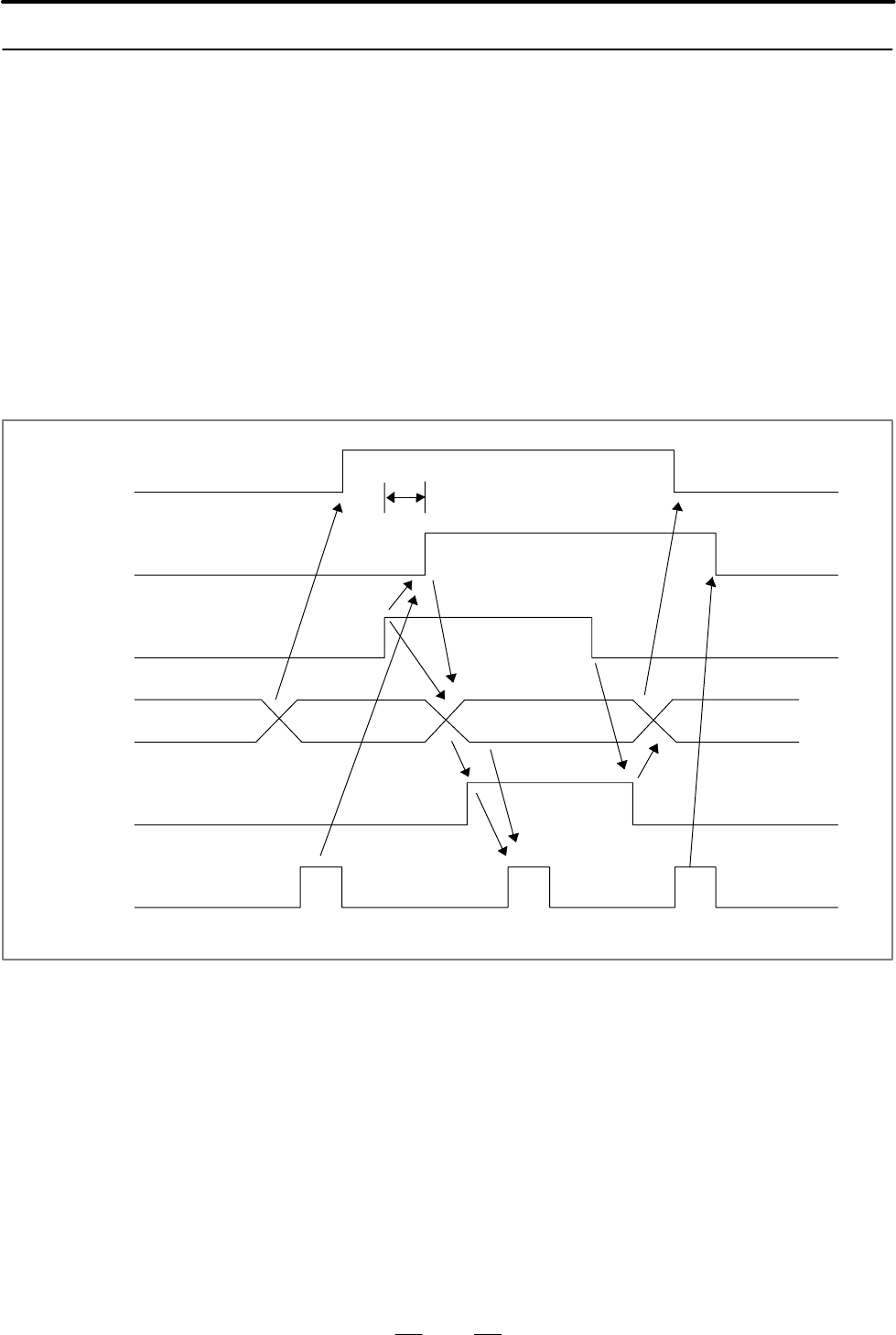

(Timing chart)

ABSRD 1

(Yy+1#4 ) 0

ABSWT 1

(Xx+1#0 ) 0

DSAL 1

(Yy+0#3) 0

DSALO 1

(Xx+2#3) 0

POS2 ALM POS3

POS2 ALM POS3POS1

2msec

Data

Read by the

host

5 The number of times the EEPROM (memory for holding parameters)

can be rewritten to is limited (to several ten thousands times). So, do

not rewrite parameters frequently. If parameters need to be rewritten

frequently, set bit 3 (NEPRM) of parameter No. 004. In this case,

however, rewritten parameters are lost when the power is turned off.

3.8.5

Notes
