3. ACTION AGAINST NOISE

B--65245EN/02

TROUBLESHOOTING AND

COUNTERMEASURES

148

The AC/DC solenoid and relay are used in the power magnetics cabinet.

A high pulse voltage is caused by coil inductance when these devices are

turned on or off.

This pulse voltage induced through the cable causes the electronic circuits

to be disturbed.

D Use a spark killer consisting of a resistor and capacitor in series. This

type of spark killer is called a CR spark killer.(Use it under AC)

(A varistor is useful in clamping the peak voltage of the pulse voltage,

but cannot suppress the sudden ris e of the pulse voltage. FANUC

therefore recommends a CR spark killer.)

D The reference capacitance and resistance of the spark killer shall

conform to the following based on t he current (I (A)) and DC

resistance of the stationary coil:

1) Resistance (R) : Equivalent DC resistance of the coil

2) Capacitance (C) :

(←F)

I : C urrent at stationary state of the coil

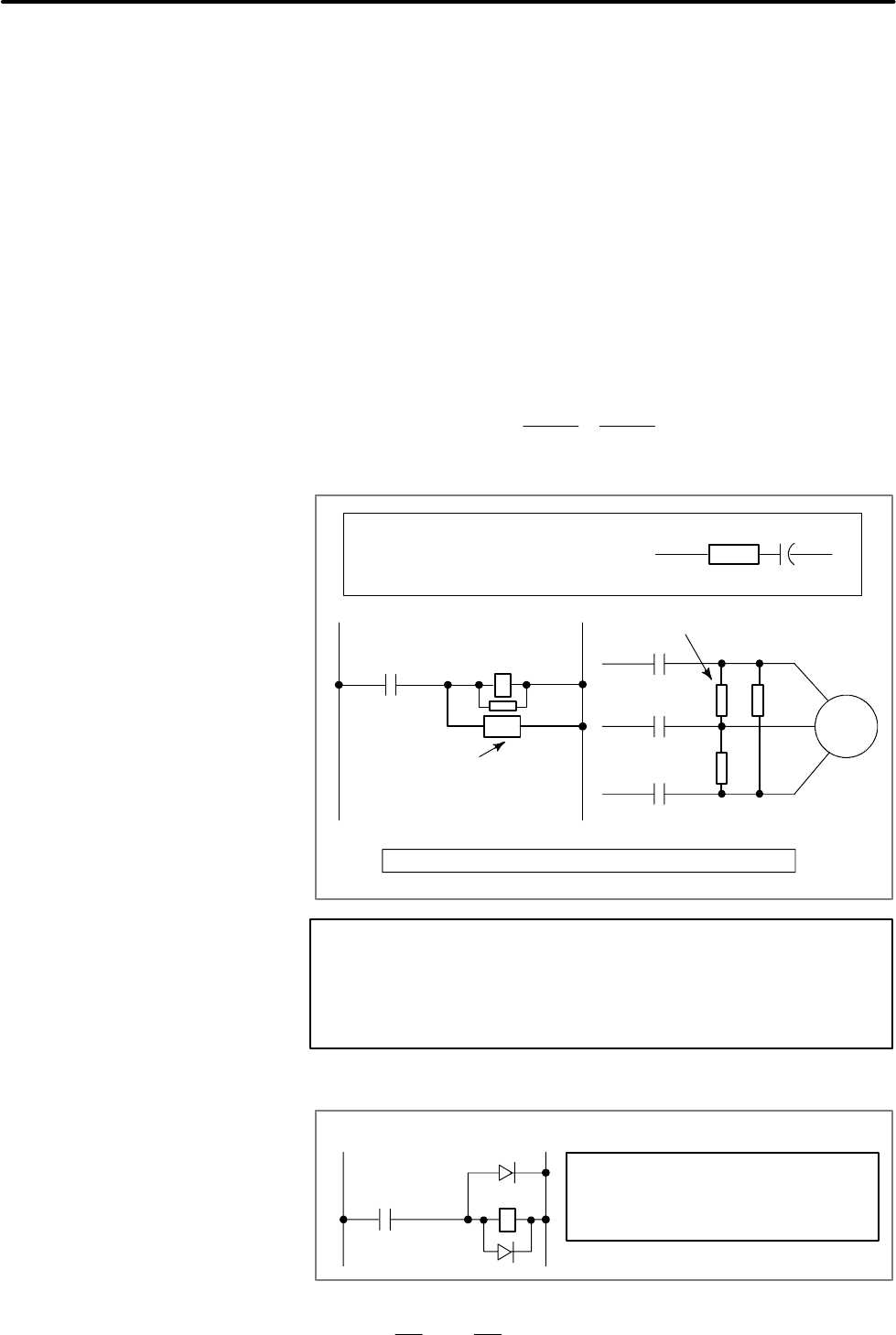

Equivalent circuit of the spark killer

Spark killer

Motor

relay

Mount the noise eliminator near a motor or a relay coil.

NOTE

Use a CR-- type noise eliminator. Varistor --type noise

eliminators clamp the peak pulse voltage but cannot

suppress a sharp rising edge.

D Diode is used for direct--current circuits

Use a diode which can withstand a

voltage up to two times the applied

voltage and a current up to two times

the applied current.

Diode

DC relay

D Noise Suppressor

Notes on selecti ng the

spark killer
