B–63294EN/02 1. OVERVIEW OF Super CAPi M

– 95 –

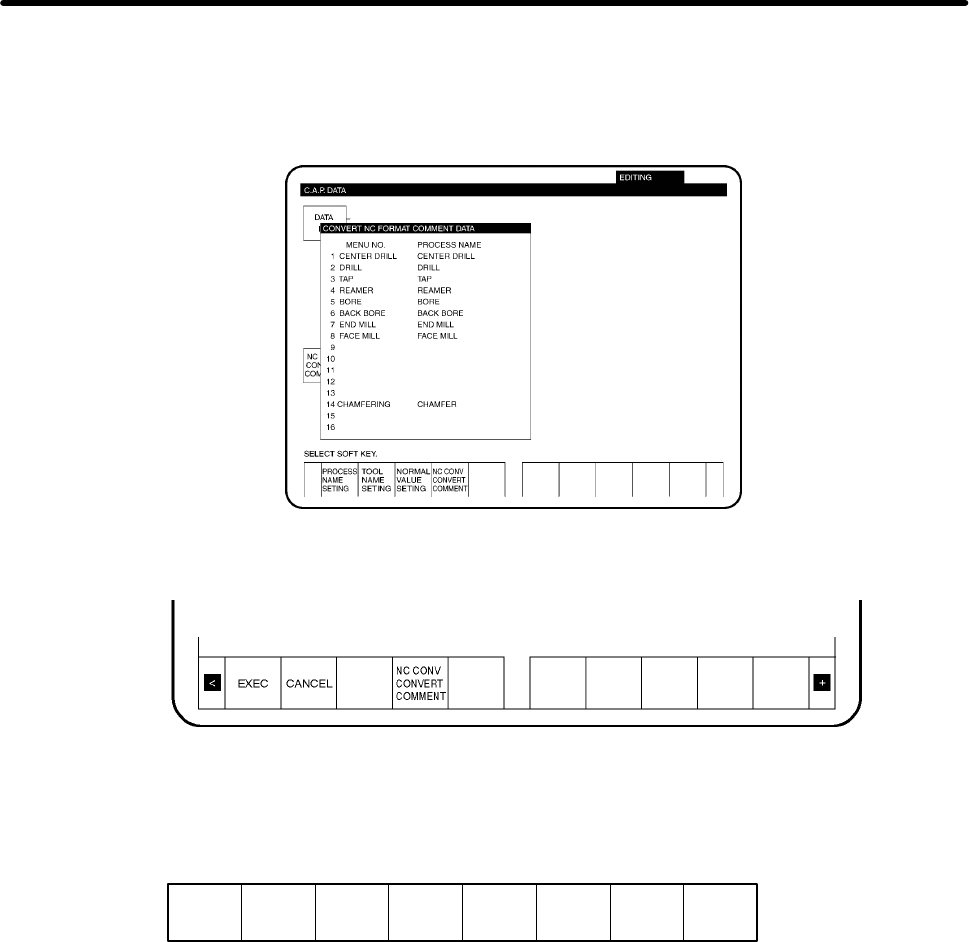

The menu names under MENU NO. are displayed, referencing the menu definition table.

NOTE Menu No. 17 and No. 18 are dedicated to contouring, and are not output as comment data. The

NC language menu does not call a machining macro, so that comment data cannot be output.

In addition, the hole position menu is a figure menu, so that it is not output as comment data.

5. Pressing [TOOL NAME SETTING] displays the following screen:

Additional tool names under ”MENU NO.” are displayed, referencing the menu definition table.

6. Pressing [STANDARD SETTING] in (4) or (5) displays the following soft keys:

Pressing the [EXEC] key set the standard values. On the process name setting screen, the standard pro-

cess names are set. On the tool name setting screen, the standard tool names are set. (The data shown

on the screen of (4) or (5) is set.)

Pressing the [CANCEL] key returns the screen display to the screen of (4) or (5).

#7 #6 #5 #4 #3 #2 #1 #0

9140 NCC

NCC : In NC program conversion, process data is output:

0 : With no comment.

1 : With comment data.
