SUPER CAPi M Operators manual Page 231

Operators manual

Page of 462

/ 462

B–63294EN/02

2. MACHINING MENU DESCRIPTIONS

– 221 –

2.7.6 Polygonal pokt (with radius) (ZP06)

INPUT THE X COORD OF THE CUT IN THE Z AXIS DIRECTION.

< INPUT

END

GUIDAN

PROGRAM O1000 PAGE :01/ EDITING

COORDINATES : W= * Y : Y= RAD. :YH=

STARTING X : U= RAD.: Z= POINT–3 X :YI=

STARTING Y : V= POINT–2 X :YF= Y :YJ=

POINT–1 X : X= Y :YG= RAD. :YK=

POCKETTING :POLY–R POCKET

NO. CYCLE PROCESS TOOL NAME

001 AUXILIARY INITAL SETING

002 POCKETTING POCKETTING PREP.END MILL

( ,V)U

1 2 3 4 5 6 7 8

W COORDI-

NATE

UNUSED WORK

CO 1

WORK

CO 2

WORK

CO 3

WORK

CO 4

WORK

CO 5

WORK

CO 6

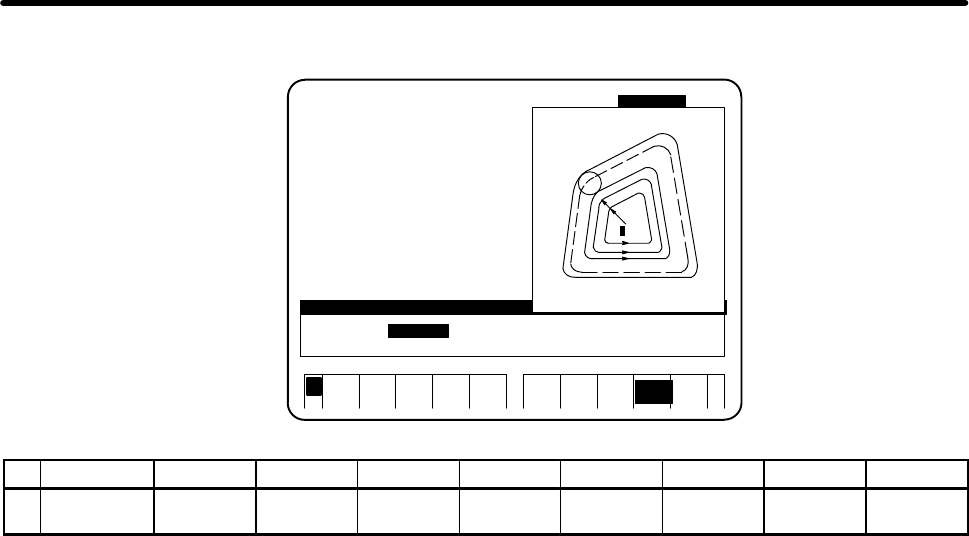

1) Screen explanation

Select when machining an arbitrary polygonal pocket with a corner radius at each vertex.

The number of vertices is 3 or 4.

2) Input item explanation

Z : APEX–1 RAD.

Input the value of the corner radius at each vertex. Input a value which is larger than the radius

of the tool used.

(Refer to 2.7.5 2) for other input items.

3) Explanation of movements

The basic movements in this process are similar to the polygonal pocket (ZP05).
