B–63294EN/021. OVERVIEW OF Super CAPi M

– 66 –

1.5.5 Changing the screen display colors

The colors used to display the conversational program screen and animated simulation screen can be set as

desired. The second page of the drawing parameter screen for animated simulation is used to set the display

colors.

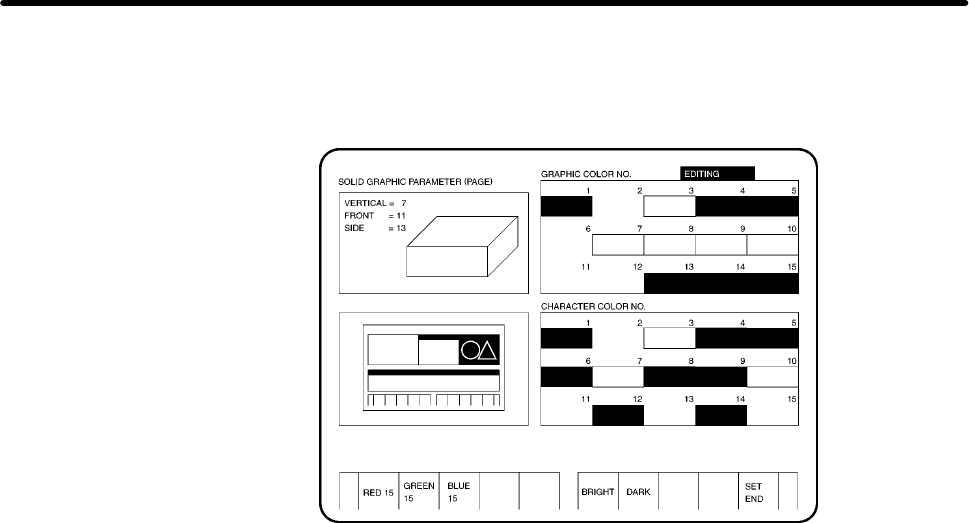

1. Setting the Display Colors

The top half of the screen is used to set the colors of the blank figure (top, front, and side) as displayed

by animated simulation. The bottom half of the screen is used to set the colors displayed on the conversa-

tional screen. 16 colors, selected from a range of 4096, can be displayed simultaneously. Each color can

be set by combining 16 levels of red, blue, and green. On the conversational screen, the numbers dis-

played for the colors correspond to the numbers assigned to the parts of the screen. The screen colors

can be set by comparing the sample screen, shown on the left, with the color numbers shown on the right.

Set the colors as follows:

Position the cursor to the number of the color to be set, using the arrow keys on the keyboard. Select the

color component to be adjusted by pressing the [RED], [BLUE], or [GREEN] soft key. The pressed soft

key is displayed in reverse video, and adjustment of the corresponding color component is enabled. Use

the [BRIGHT] and [DARK] soft keys to adjust the brightness. Each time the [BRIGHT] or [DARK] soft key

is pressed, the brightness is adjusted by one level. Once the brightness of the selected component has

been set as desired, the color displayed under the selected number changes accordingly. Simultaneously,

on the sample screen, the color of the parts corresponding to that color number is also changed.

The following table lists the correspondence between the color numbers and the parts of the conversation-

al screen:
