SUPER CAPi M Operators manual Page 395

Operators manual

Page of 462

/ 462

B–63294EN/02

2. MACHINING MENU DESCRIPTIONS

– 385 –

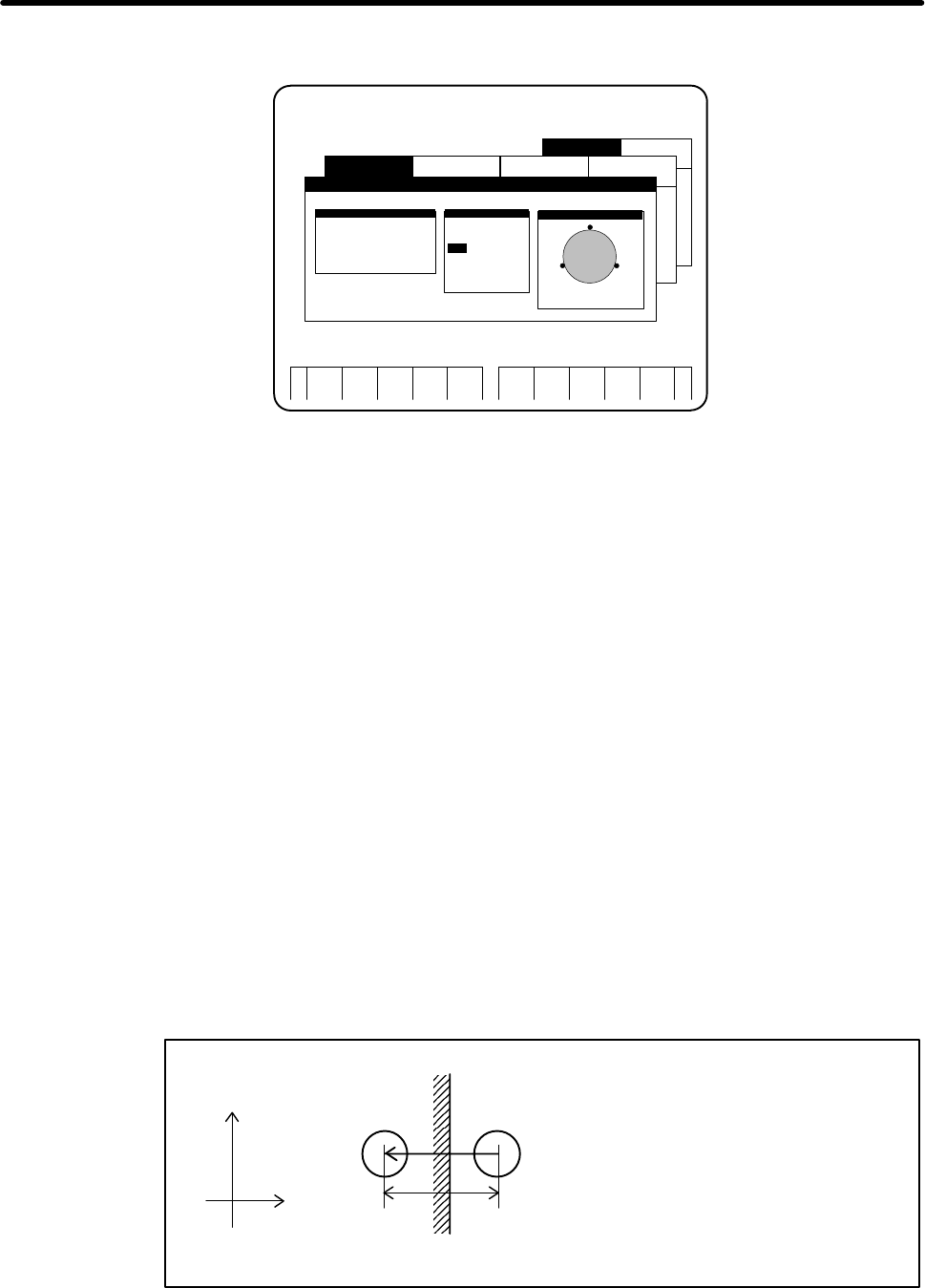

(1) Circle Center Measuring

When the softkey [CIRCLE CENTER] is pressed, the circle center measuring screen is displayed.

SELECT PT.,PRESS [X+,X-,Y+,Y-] TO APPROACH MEASURE POINT WITH TOUCH SENSOR.

Y–Y+X–X+< END

PROGRAM O5002 (TEST2) PAGE :01/ SETUP

NO. CYCLE PROCESS TOOL NAME TOOL NO N–DIA FEED SPINDL

001 AUXILIARY INITAL SETING

002 FACING FACING PREP. FACE MILL 73

FACIMG PREP. FACE MILL 71

FACING SQUARE BIDIR

PROCESS END

003 HOLE TAPPING CENTER DRILL 3

TAPPING DRILL 15

TAPPING TAP 25

HOLE PATERN PARALLELOGRM

PROCESS END

CENTERING-

WORK COORDI-

NATE

004 AUXILIARY END OF PROG.

TOOL MEASURE

TOOL OFFSET

CIRCLE CENTER SQUARE CENTER CORNER Z AXIS REF.

GUIDANCE

CURRENT POSITION MEAS. POINT

ABSOLUTE MACHINE

X –2.013 X –2.013

Y –63.924 Y –63.924

Z –79.001 Z –79.001

PT1 X –52.090

Y –30.012

PT2 X –10.098

Y –30.012

PT3 X

MEASURE 3 POINTS

WORK

COORD.

PT2

REF. CENTERING –– CIRCLE CENTER MEASURE

(1) When the softkey [X+] is pressed, the spindle moves in X+ direction.

(2) When the softkey [X- ] is pressed, the spindle moves in X- direction.

(3) When the softkey [Y+] is pressed, the spindle moves in Y+ direction.

(4) When the softkey [Y- ] is pressed, the spindle moves in Y- direction.

(5) When the softkey [WORK COORD. ] is pressed, the setup function advances to the work coordinate

setting screen.

Operation

(1) Select a measuring point with the cursor key.

(2) The measuring point can be approached with the touch sensor, by using the hand wheel or JOG op-

eration. Move the touch sensor to a position as shown in the sketch below. The distance between the

touch sensor and the workpiece must be less than ”A”. Distance A is called additonal amount and can

be set at the data setting screen.

(3) Approach the measuring point with the touch sensor, by pressing one of the X+, X- , Y+, Y- softkeys.

For example, by pressing softkey [X- ] , the touch sensor approaches the workpiece in X-direction.

After the touch sensor touches the workpiece, the measure point coordinates are displayed. At this

time the touch sensor separates from the workpiece and moves to return position by the return

amount. In case of remeasuring, reselect one of the X+, X- , Y+, Y- softkeys.

(4) For measuring the second and third measure point, repeat procedure (2) and (3). Separate the mea-

sure points at least by the value of minimum movement. If the distance is below minimum movement,

the error message ”DISTANCE BETWEEN MEASURE POINTS TOO SHORT” is displayed, and the

coordinate of the measure point can not be set (applies only for circle center measuring).

(5) The result of centering is correct, when the X, Y center point is diplayed in the guidance window. Next,

press the softkey [WORK COORD. ] and the work coordinate setting screen will be displayed.

(6) By pressing softkey [END] or [<] , the setup function returns to the main menu.

Y+

X+

(15.0, 0, 0)

(0, 0, 0)

WORKPIECE TOUCH

SENCOR

CONDITION :

RETURN AMOUNT = 10.000

ADDITIONAL AMOUNT = 100.000

FEEDRATE = 10.000

1. Move touch sensor to position a, by manual operation.
