2. MACHINING MENU DESCRIPTIONS
– 292 –
Registration in memory
ZY15 (escape) X_Y_B_C_D_E_R_F_A
X : Escape point coordinate X
Y : Escape point coordinate Y
B : Target point coordinate X
C : Target point coordinate Y
D : Auxiliary escape point X
E : Auxiliary escape point Y
R : Escape radius
F : Escape rate Z
A : Escape type
Results of outputting NC statements
G02/03G90X***Y***R***F***; Cutting feed to the escape point
G01Z#6993F***; Cutting feed to the Z axis escape point
G00Z#6995; Rapid traverse to the Z axis target point
G40X***Y***D0; Rapid traverse to the auxiliary point
X***Y***; Rapid traverse to the target point
Not output if the target point is not specified.

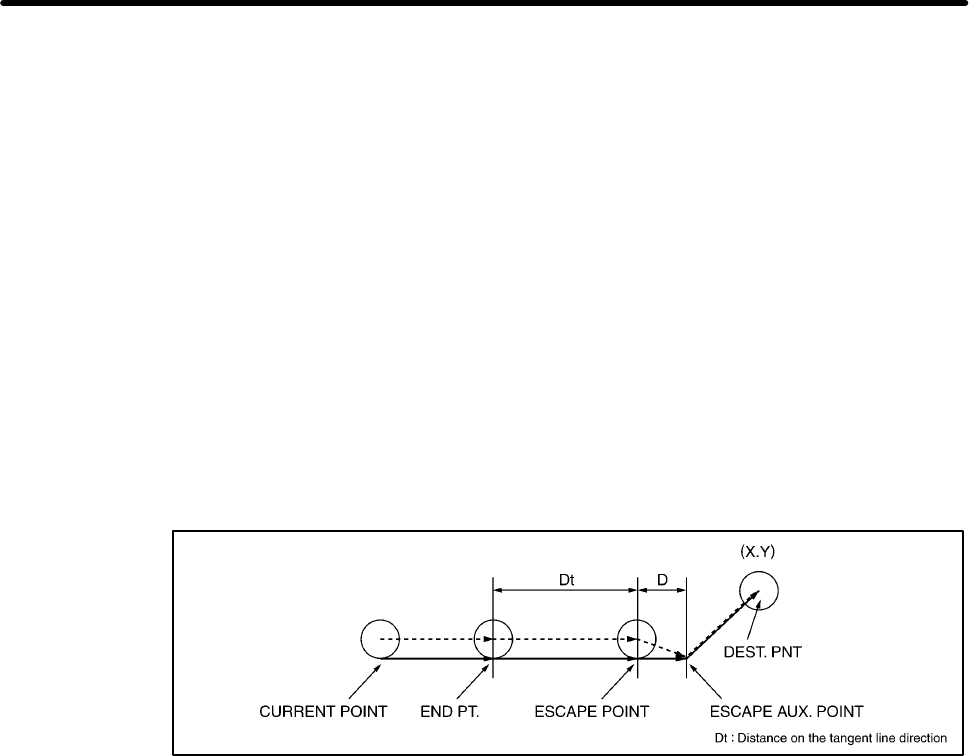

(b) For TANGENT
Registration in memory
ZY15 (escape) X_Y_B_C_D_E_F_A_
X : Escape point coordinate X
Y : Escape point coordinate Y
B : Target point coordinate X
C : Target point coordinate Y
D : Auxiliary escape point X
E : Auxiliary escape point Y
F : Escape rate Z
A : Escape type
Results of outputting NC statements
G01X***Y***F***; Cutting feed to the escape point
G01Z#6993F***; Cutting feed to the Z axis escape point
G00Z#6995; Rapid traverse to the Z axis target point
G40X***Y***D0; Rapid traverse to the auxiliary point
X***Y***; Rapid traverse to the target point
Not output if the target point is not specified.
