SUPER CAPi M Operators manual Page 37

Operators manual
B–63294EN/02 1. OVERVIEW OF Super CAPi M
– 27 –
9. After checking that all the data is correctly entered, press the soft key [INPUT END]. The parallel dia-
gram process is incorporated into the program. The hole position menu screen is displayed again.
0807
SELECT SOFTKEY.
0504030201
<
PROCES
END

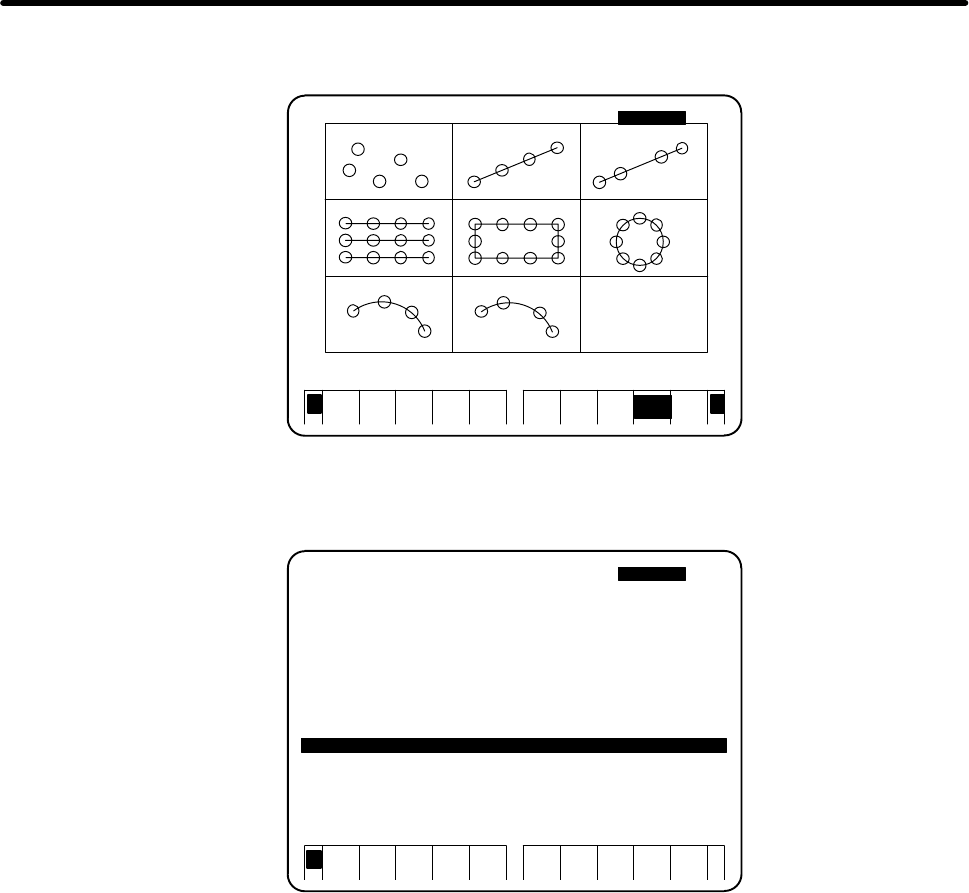

PROGRAM O1000 PAGE :01/ CREATING
GUIDAN
CE
06
01 POINTS 02 LINE SAM.SP
04 GRID
03 LINE DIF.SP
05 PARALLELOGRM
08 ARC DIFF SP
06 BOLT HOL CIR
07 ARC SAME SP
TO BE CONTINUE
NEXT PAGE.
+
10. To select another hole position menu, follow the same steps as when the parallel diagram menu is
selected. To terminate drilling, press the soft key [PROCES END]. The original program screen is
displayed again.
SELECT SOFTKEY.
NC LAN
GUAGE
POCKET
TING
SIDE C
UTING
FACINGHOLE< PROGRM
END
AUXILI
ARY
PROGRAM O1000 PAGE :01/ CREATING
NO. CYCLE PROCESS TOOL NAME TOOL NO N–DIA FEED SPINDL
2+1/2
CCV
2+1/2
CVX
001 AUXILIARY INITAL SETING
002 FACING FACING PREP. FACE MILL 72. 40.000 773. 1431.
FACING PREP. FACE MILL 73. 50.000 309. 572.
FACING SQUARE BIDIR
PROCESS END
003 HOLE TAPPING CENTER DRILL 3. 3.000 42. 4240.
TAPPING DRILL 12. 4.000 50. 5000.
TAPPING DRILL 14. 8.000 318. 3180.
TAPPING TAP 25. 10.000 280. 254.
HOLE PATERN PARALLELOGRM
PROCESS END
Repeat these steps to select another machining menu and enter desired data until a desired machining
program is created.
