5. Drawing parameters

Press [GRAPH PARAM] to change the tool path drawing parameters. The following drawing parameter

screen appears:

XYZZ

XYZXZZYYZXY

SET

END

PATH GRAPHIC PARAMETER

ZXY

AXES = START SEQ. NO. = 0

ROTATION ANGLE = END SEQ. NO. = 0

TILTING ANGLE = TOOL RADIOS COMP. = ON

SCALE = 0.65 PART FIGURE DISP. = OFF

MAX.(CENTER) X= 3.154 TOOL FIGURE DISP. = OFF

Y= COLOR PATH = WHITE

Z= –7.731 AUTO CHANGE = OFF

MIN. I= 0.000 TOOL FIG. = WHITE

J= 0.000 TOOL POS. = WHITE

K= 0.000

XYZ

8.654

After setting required parameters, press [SET END]. The screen display returns to the original execution

screen.

The meanings of each parameter are described below.

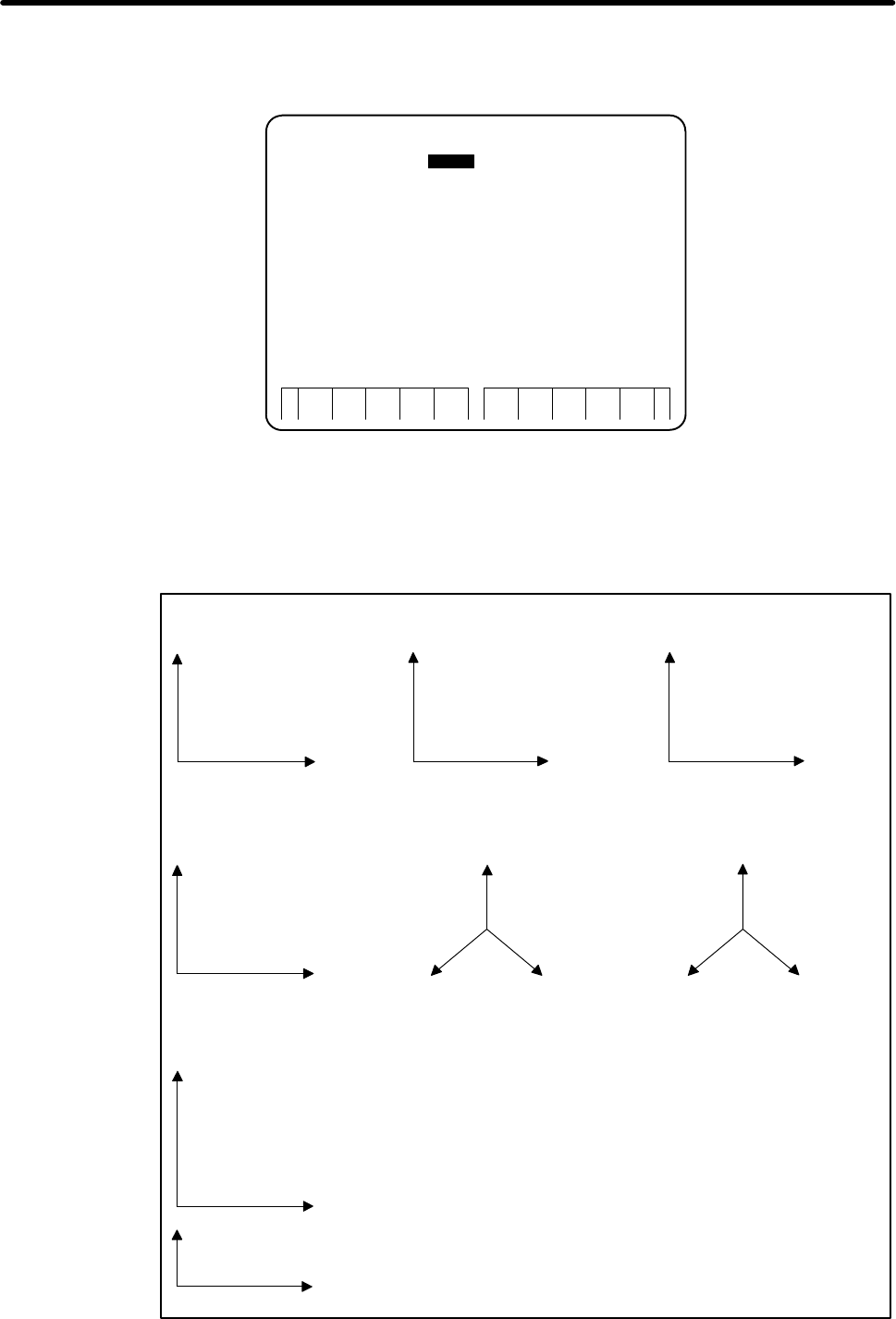

(1) Drawing screens

Seven types of drawing screens are available for selection.

X–Y plane Y–Z plane

Bi–plane (X–Y, X–Z)

Isometric projection drawing (ZXY)Isometric projection drawing (XYZ)

X–Z plane

Z–Y plane
