SUPER CAPi M Operators manual Page 183

Operators manual
B–63294EN/02
2. MACHINING MENU DESCRIPTIONS
– 173 –

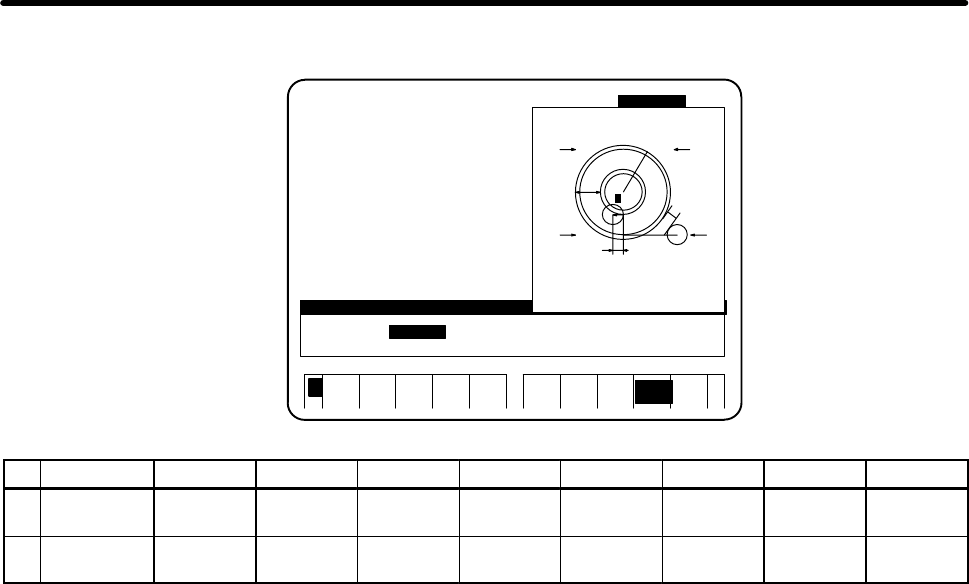

2.5.7 Circular surface (Ring) (ZF07)
INPUT THE X COORD OF THE CENTER OF THE CIRCULAR SURFACE.
<
INPUT
END
GUIDAN
CE
PROGRAM O1000 PAGE :01/ EDITING
COORDINATES : W= * RING WIDTH : I=
X CO–ORD : X= START POINT : B= (4)
Y CO–ORD : Y= APPROACH :YC= 5.
RADIUS : R= ESCAPE :YD= 1.
FACING :CIRCLE DRING
NO. CYCLE PROCESS TOOL NAME
001 AUXILIARY INITAL SETING
002 FACING FACING PREP. FACE MILL
(1)
(3)
(2)
(4)
YC
I
R
YD
( ,Y)
X
1 2 3 4 5 6 7 8
W COORDI-
NATE
UNUSED WORK
CO 1
WORK
CO 2
WORK
CO 3
WORK
CO 4
WORK
CO 5
WORK
CO 6
B START
POINT
1) 2) 3) 4)
1) Screen explanation
Select only when a edge of the circular surface is machined. This menu is effective when machining such
as facing of the joint about the workpiece whose midair is cylindrical.
2) Input item explanation
I : RING WIDTH
Input the width of the ring.
YD : ESCAPE
Input the gap between the inner frame of the workpiece and the center coordinates of the tool at
the point where cutting ends. It is assumed to be 1 mm unless input.
Refer to 2.5.2 2) for other input items.
3) Explanation of movements
Except for the shape of the circular surface (Ring), the machining movements are the same as the machin-
ing movements for a quadrangular surface (Ring) (ZF06).
2.5.8 Copy (Random) (ZF08)
Refer to 3.3.10 Hole Pattern Copy (Random) (ZL09)
2.5.9 Copy (Pattern) (ZF09)
Refer to 3.3.11 Hole Pattern Copy (Pattern) (ZL10)
