2. Execution of drawing

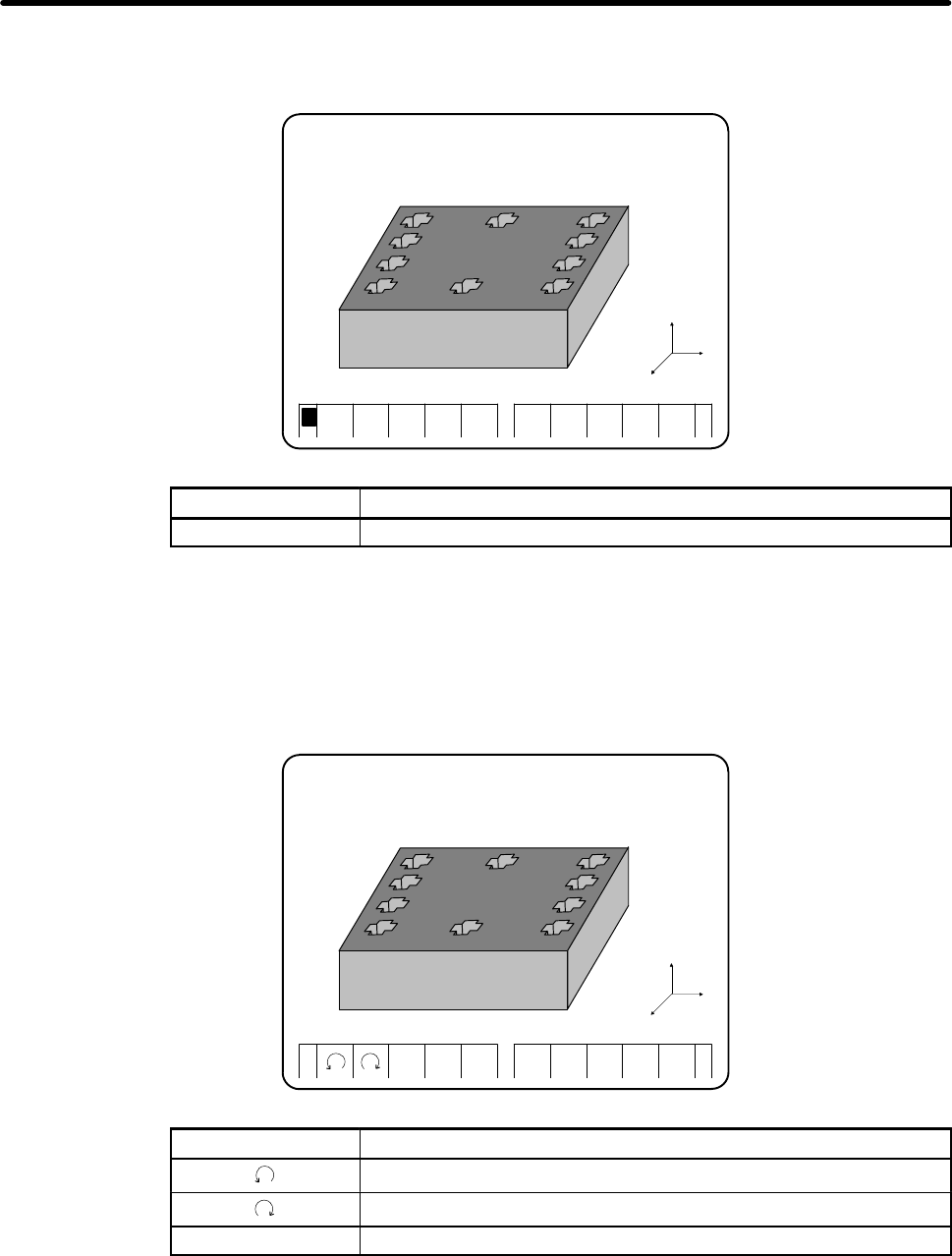

Press [DRAW START] to execute animated simulation. During execution, only soft key [STOP] can be
used.
MEM **** *** *** 16:16:05
ROTA–
TION
GRAPH
PARAM
PATH
GRAPH
DRAW
START
SECT.
PLAN
TOP
VIEW
3–PLAN
PATH GRAPHIC (EXECUTION)
X 0.000
Y 0.000
Z 0.000
01234 N01000
z
X
Y
<
Soft key Meaning
STOP Terminates drawing forcibly.
When drawing is terminated forcibly using this soft key, it may take a short time before drawing terminates
completely.
When end of program (M02/M30) is executed, drawing is terminated, and the soft key display automatically
returns to that of the original execution screen. A generated animated simulation drawing is preserved until
the power is turned off unless a drawing parameter is changed or a new drawing operation is started.
3. Drawing rotation
A drawing can be rotated by pressing [ROTATION].
z
X
Y
MEM **** *** *** 16:16:56
SET
END
PATH GRAPHIC (ROTATION)
X 0.000
Y 0.000
Z 0.000
01234 N01000
Soft key Meaning
Rotates a blank in the counterclockwise direction around the vertical axis.
Rotates a blank in the clockwise direction around the vertical axis.
SET END Pressed after setting is completed.
