SUPER CAPi M Operators manual Page 65

Operators manual

Page of 462

/ 462

B–63294EN/02 1. OVERVIEW OF Super CAPi M

– 55 –

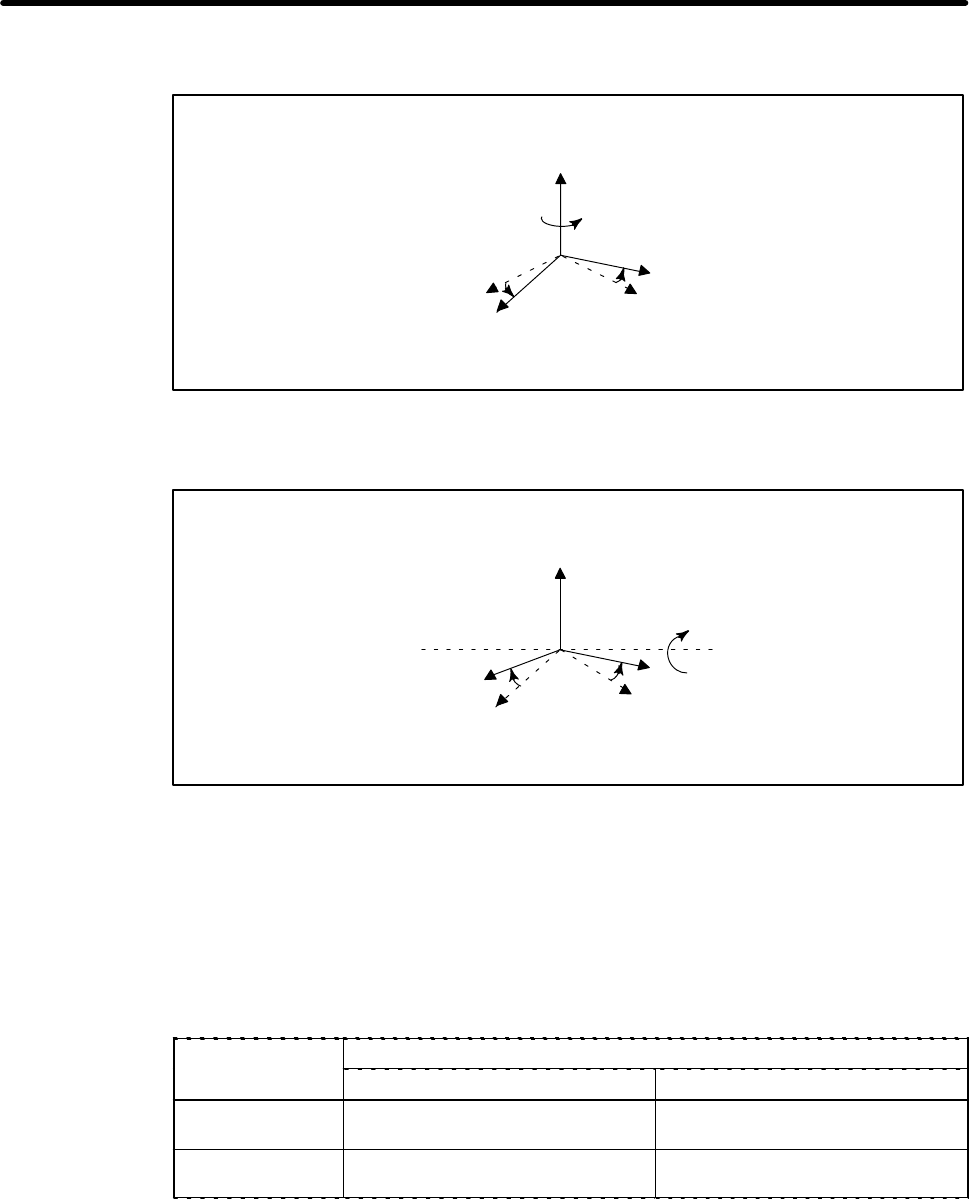

(2) Horizontal rotation angle

This parameter specifies an angle of rotation (–180_ to +180_ ) around the vertical axis in degrees.

(3) Vertical rotation angle

This parameter specifies a tilt angle (–180_ to +180_ ) with respect to the vertical axis.

(4) Scale factor

A value from 0.01 to 100.00 can be specified. When 1.0 is set, an actual–size drawing is generated.

When 0 is set, a scale factor is automatically determined. (Usually, a scale factor is automatically de-

termined so that this parameter need not be set.)

(5) Maximum value (center)/minimum value

The coordinates (X,Y,Z) of a drawing center, or maximum drawing coordinates (X,Y,Z)/minimum draw-

ing coordinates (I,J,K) are set. These settings depend on the value of the drawing scale factor as indi-

cated below.

Drawing scale

Setting

Drawing scale

factor value

Addresses X, Y, and Z Addresses I, J, and K

Value other than 0

Drawing center coordinates on the X,

Y, and Z axes

Ignored

Maximum drawing coordinates on

the X, Y, and Z axes

Minimum drawing coordinates on the

X, Y, and Z axes

(Usually, the scale factor parameter and maximum value (center)/minimum value parameter are auto-

matically determined so that these parameters need not be set.)
