2. MACHINING MENU DESCRIPTIONS
– 309 –
Y
1.
2.
(End point of 1., start point of 2.)

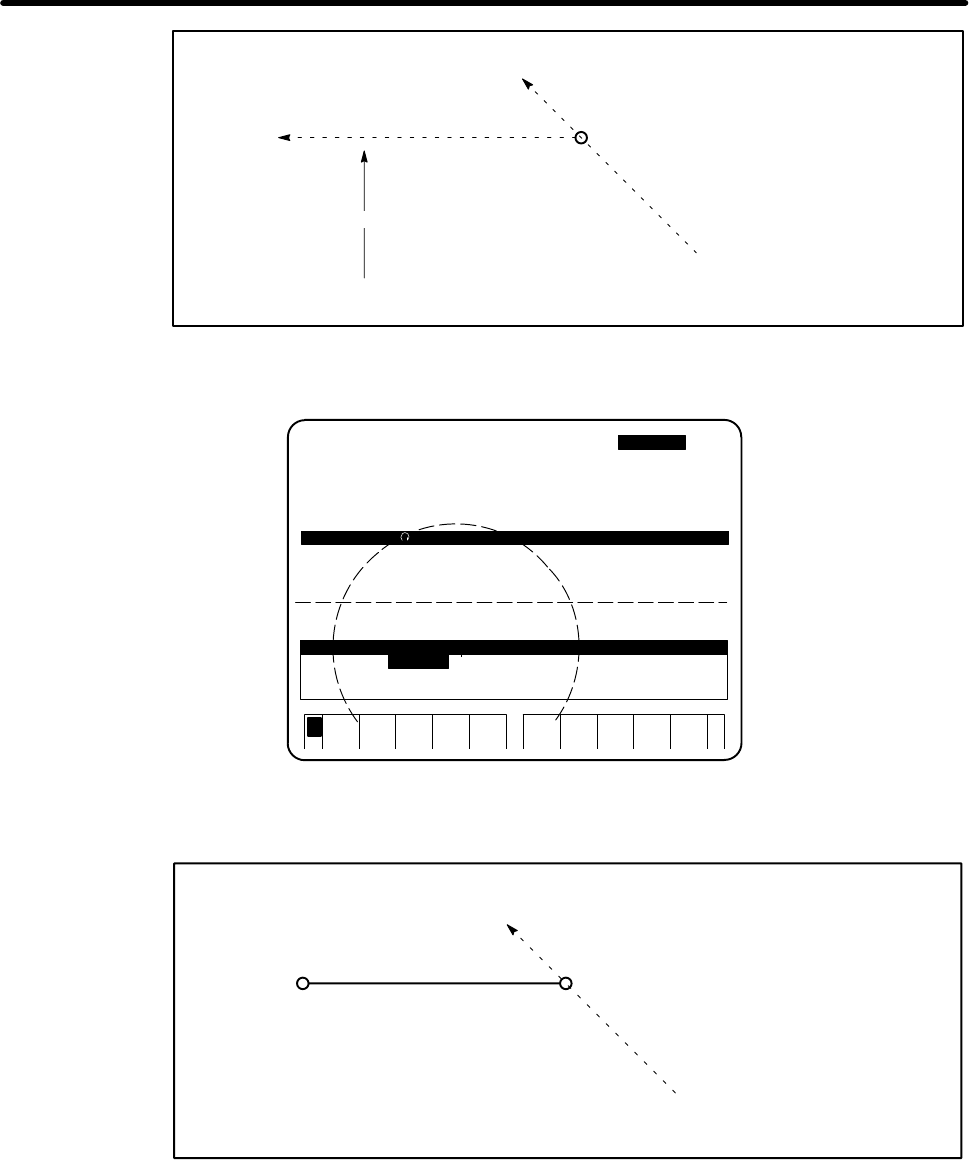

When the figure block is an arc, the intersection selection request screen (below) is displayed.
Specify 1 or 2 to select a desired intersection.
DEPRESS THE SOFT KEY.
POINT2POINT1
<
INPUT
END
PROGRAM O6000 PAGE :01/ CREATING
CONTOUR FROM (SELECT CROSSING)
NO. CYCLE PROCESS TOOL NAME TOOL NO N–DAI FEED SPINDL
001 AUXILIARY INITAL SETING
002 POCKETTING CONTOR POCKETEND MILL 62. 4.000 57. 3180.
1 (START OF POCKET WALL)
2 START PT. X= 0. Y= 0.
3 ← X= –50. Y= 0.
5 → X= Y=
6
CROSSING NMB : P=
4 X= Y= R=
3. When (X) and (Y) are programmed
⇒ The intersection between the current and preceding figure blocks is calculated.
(X,Y)
1.
2.
(End point of 2.)
(End point of 1., start point of 2.)
Previous page
Next page
