SUPER CAPi M Operators manual Page 32

Operators manual

Page of 462

/ 462

B–63294EN/021. OVERVIEW OF Super CAPi M

– 22 –

11. To change the machining conditions selected by the automatic tool selection function and automatic

cutting condition function, press the soft key [WINDOW CHANGE]. The cursor is moved to the ma-

chining condition screen. Place the cursor on the data to be changed and enter desired data. To

change the tool ID number and automatically specify it, press the soft key [F.S.AUTO]. The automatic

cutting condition function is executed for the tool and the corresponding cutting conditions are dis-

played. To return the cursor to the C window, press the soft key [WINDOW CHANGE].

GUIDAN

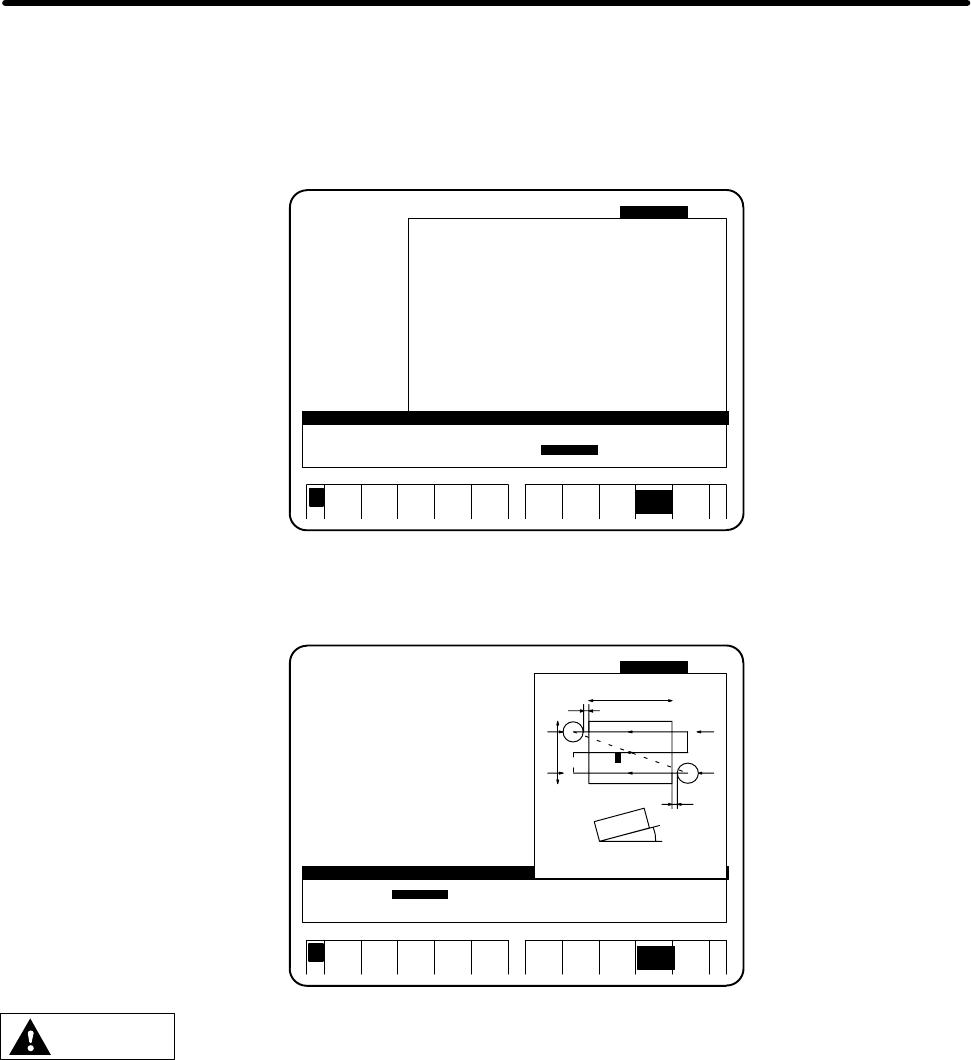

GROUP COPY :YB= UNUSED FINISHING : Y= 2.

Z POINT : Z= 0. THICKNESS : U= 100.

REMOVAL : V= 20. TOOL ID NO. : T=

PITCH : J= 5.

001 AUXILIARY INI

NO. CYCLE PRO

INPUT THE TOOL ID NUMBER OF THE TOOL TO BE USED.

WINDOW

CHANGE

F.S.

AUTO

INPUT

END

TOOL

INFORM

PROGRAM O1000 PAGE :01/ CREATING

CUTTING DATA1/1 PROCESS 2 PROCESS 1

TOOL ID NO. T= 73. 72.

TOOL NAME Q= FACE MILL FACE MILL

PROCESS B= FINISHING ROUGHING

H OFFSET NO. H= 173. 172.

D OFFSET NO. D= 73. 72.

COOLANT M=COOLNT M7 COOLNT M7

SPINDL SPEED S= 572. 1431.

FEED RATE F= 309. 773.

CUT WIDTH(%) E= 70. 70.

Z–ESCAPE K= 3. 3.

72.

FACING :FACING PREP.

12. After checking that all data is correctly entered, press the soft key [INPUT END]. The system automati-

cally checks all the input data. If all the data is correct, the facing start process is incorporated into

the program and menu of [SQUARE BIDIR] is automatically displayed in the window.

INPUT THE X COORD OF THE CENTER OF THE QUADRANGLE.

< INPUT

END

GUIDAN

PROGRAM O1000 PAGE :01/ CREATING

COORDINATES : W= * V LENGTH : V= ESCAPE :YD= 5.

X CO–ORD : X= ANGLE : A= 0.

Y CO–ORD : Y= START POINT : B= (4)

U LENGTH : U= APPROACH :YC= 5.

FACING :SQUARE BIDIR

NO. CYCLE PROCESS TOOL NAME

001 AUXILIARY INITAL SETING

002 FACING FACING PREP. FACE MILL

FACING PREP. FACE MILL

(1)

(3)

(2)

(4)

( ,Y)

After figure data has been entered, check that the specified figure can actually be machined us-

ing the selected machining type and tools.

If the figure is not specified correctly, the tool may collide with the workpiece and/or machine,

possibly causing damage to the tool and/or machine, or even injury to the user or bystanders.

WARNING
