1. Fanuc
  2. SUPER CAPi M

SUPER CAPi M Operators manual Page 255

Operators manual
B–63294EN/02
2. MACHINING MENU DESCRIPTIONS
– 245 –
2.9.1 2 + 1/2 Convex cut prep. (ZV01)
INPUT THE Z COORD OF CUTTING FEED STARTING POINT FOR MACHINING.
PROCES
WINDOW
F.S
AUTO
< INPUT
END
GUIDAN
CE
TOOL
INFORM
PROGRAM O1000 PAGE :01/ EDITING
GROUP COPY :YB= UNUSED SIDE PITCH : I= BOTTOM FINSH : Y= *
R POINT : R= SIDE FINISH : X= * FINISH PITCH : K=
Z POINT : Z= BOTTOM REMOV : V= TOOL ID NO. : T=
SIDE REMOVAL : U= BOTTOM PITCH: J=
2+1/2 CVX :2.5CVX CUT PREP
NO. CYCLE PROCESS TOOL NAME
001 AUXILIARY INITAL SETING
YF
MAX NUM.OF TOOLS–3
I
T
Z
U
V
J
X
K
R
1 2 3 4 5 6 7 8
YB GROUP
COPY
UNUSED A–GROUP B–GROUP C–GROUP
B CUTTING
DIR.
ROUGH-
ING
BOTTOM
FINISH
SIDE
FINISH
M COOLANT COOLANT
M7
COOLANT
M8
NONE

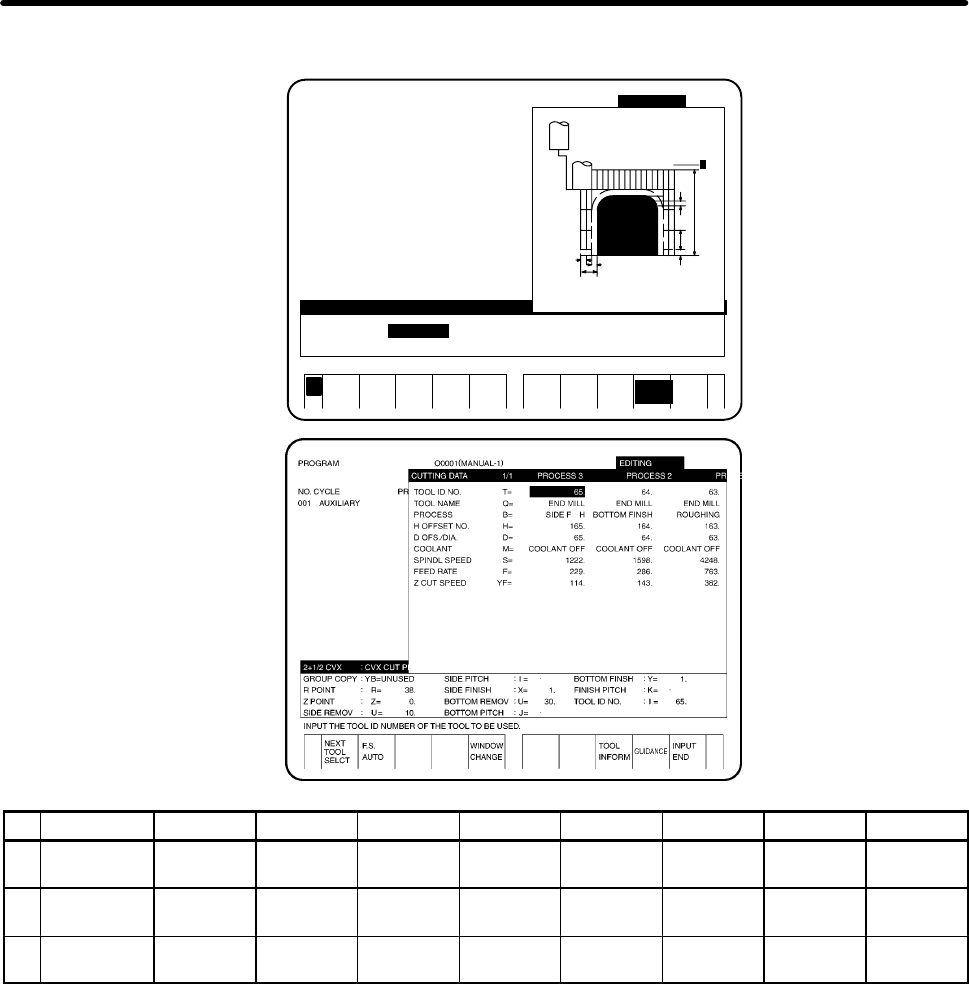

1) Screen description
Always select this screen at start of the 2.5 convex cutting. Input the position data in the Z direction and
data on tools. The pre–tool and machining process are automatically set by ”TOOL AUTO”. A maximum
of three tools can be used and there are three processes, namely, rough cutting, bottom finish, and side
finish.
2) Input item description
YB : GROUP COPY
When the group copy is selected, use this menu to specify whether the group copy is valid or not.
When no setting value, it is realized that ”GROUP COPY = UNUSED”.
R : R POINT
Always input the Z coordinate at cutting feed start point on machining. Be sure to input.
Z : Z POINT
Always input the Z coordinate on the machining end surface. Be sure to input.
U : SIDE REMOVAL
Always input the removal of side. However, the setting in the case of convex square column, the
wider side becomes a reference.
