B–63294EN/021. OVERVIEW OF Super CAPi M

– 96 –

1.8 Other Functions

1.8.1 Program list

(1) Overview

The program list can contain the program type, program name, program creation date, and program size,

in addition to the program number. By positioning the cursor within the list, any program can be selected,

copied, or deleted.

(2) Operation and screen

The program list screen can be displayed from [1] to [4] of the basic menu screen, shown below:

NOTE 1 The program list can be displayed from only [2], [3], or [4] if parameter No. 9132 is set accordingly.

NOTE 2 You can use any of [1], [2], [3], or [4] in EDIT or back ground edit mode. For [3] or [4], switch the

mode to MEMORY on the graphic screen.

#7 #6 #5 #4 #3 #2 #1 #0

FANUC standard settings

9132 MN4 MN3 MN2

MN2 to 4 : MN2, MN3, MN4: Determines whether the program list is displayed from [2], [3], or [4].

0 : Not displayed

1 : Displayed

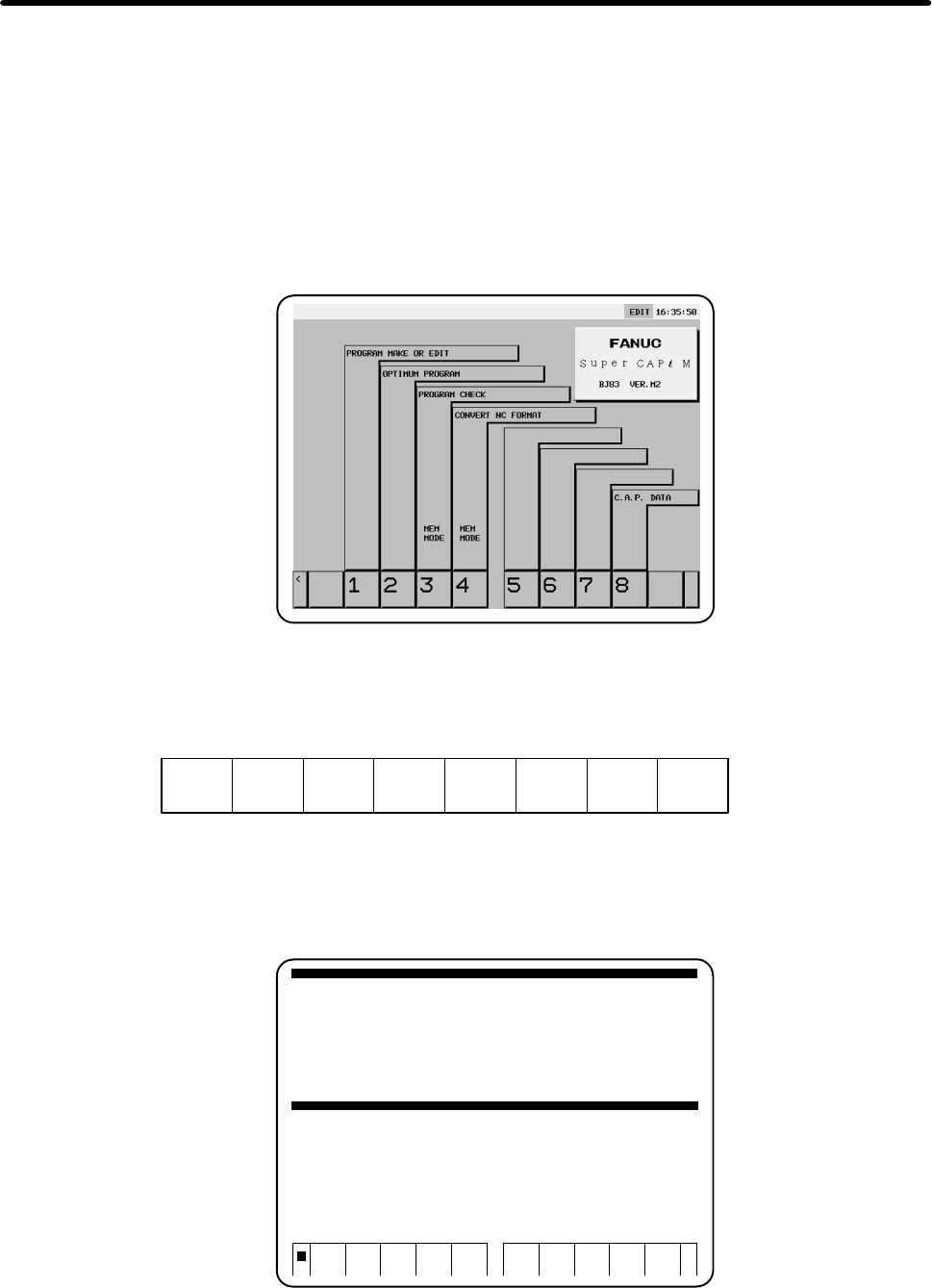

Press [1] on the basic menu screen. The following program list screen is displayed:

INPUT PROGRAM NO. >_

PROG.

SELECT

LI-

BRARY

MODIFY

TITLE

PROG.

DELETE

PROG.

COPY

PROGRAM DIR. PAGE 01/01 EDIT

PROGRAM NO. USED: 13 FREE: 987

MEMORY AREA USED: 4480 FREE: 33120

NO. TYPE NAME CREATE DATA SIZE

0001 CAP TEST–1 DEMO 94–10–06 11:47 80

0002 CAP TEST–2 SUS304 94–10–06 11:49 80

0003 CAP TEST–3 FCD45 94–10–06 11:50 80

0004 CAP TEST–4 SKD11 94–10–06 11:51 80

0005 CAP TEST–5 SUS41 94–10–06 11:52 80

0006 CAP TEST–6 ALUME 94–10–06 11:53 80

0007 CAP TEST–7 SPECIAL 94–10–06 11:56 80

0011 OPT U–AXIS DEMO 94–10–06 14:21 480

1000 CAP MANUAL–194–10–06 12:02 400

1002 OPT U–AXIS DEMO 94–10–06 14:22 480

1003 CNV MANUAL–194–10–06 14:27 2000

2000 NC 80

0010 CAP U–AXIS DEMO 94–10–06 13:09 480
