SUPER CAPi M Operators manual Page 33

Operators manual
B–63294EN/02 1. OVERVIEW OF Super CAPi M
– 23 –
13. Enter desired machining data and press the soft key [INPUT END]. The system automatically checks
the input data. If all the data is correct, the square two–way facing process is incorporated into the
program. The detailed menu screen for facing is displayed again.
WHEN COPYING EACH MENU,SELECT EITHER ONE
IN ADVANCE.
0807
SELECT SOFTKEY.
0504030201
<
PROCES
END
PROGRAM O1000 PAGE :01/ CREATING
GUIDAN
CE
06

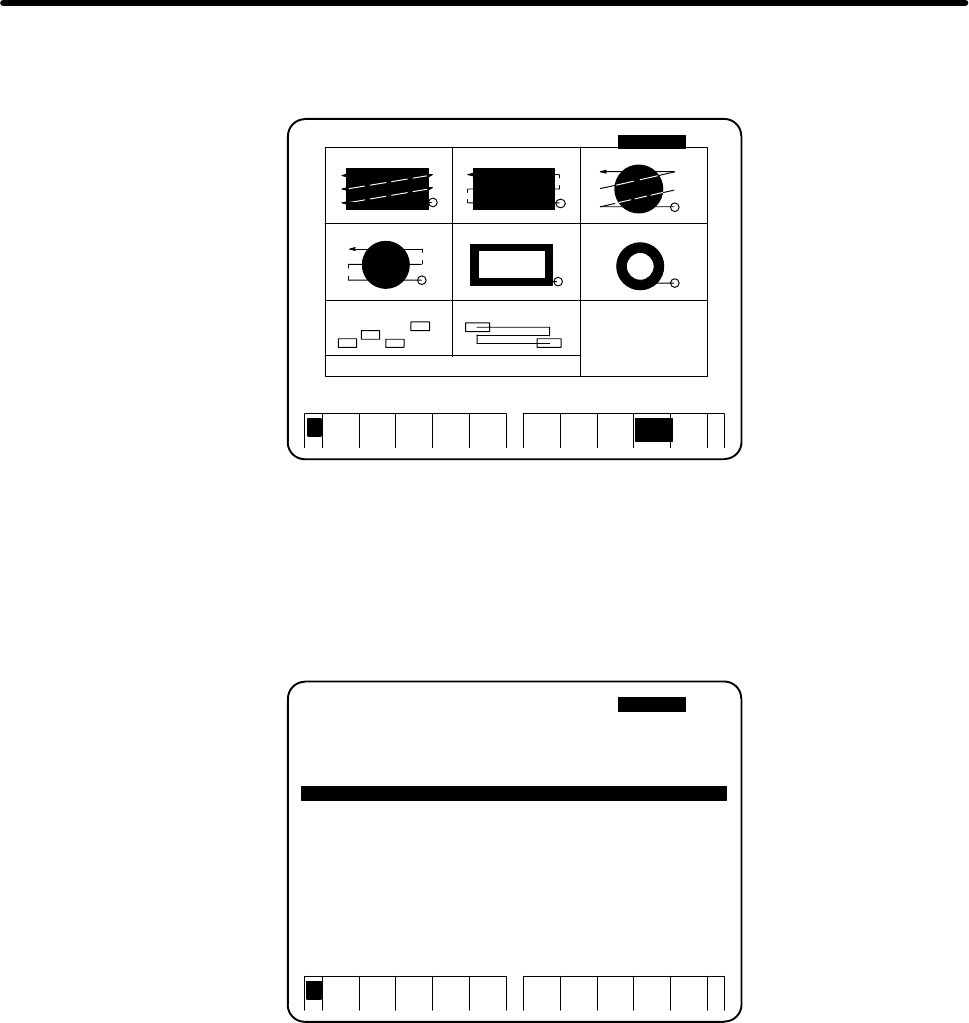

01 SQUARE UNIDIR 02 SQUARE BIDIR
04 CIRCLE BIDIR
03 CIRCLE UNIDIR
05 SQUAREFRING
08 COPY PATTRN
06 CIRCLE DRING
07 COPY RANDOM
NOTE If the return key, [<], at the bottom left corner of the screen is pressed instead of the soft key [IN-
PUT END], the following message appears on the screen: MAKING PROCESS IS LOST, O.K.?
(YES –> [<], NO –> [CAN]). When the [<] key is pressed again, the start menu for the preceding
process is deleted. This prevents the creation of a machining process which does not consist
of a start menu, figure menu, and process end. If the start menu of such a preceding process
remains, there is danger that the resultant machining program cannot be executed.
14. To terminate the facing menu, press the soft key [PROCES END]. The first screen is displayed again.
The terminated process is incorporated in the program screen.
NC LAN
GUAGE
POCKET
TING
SIDE C
UTING
FACINGHOLE< PROGRM
END
AUXILI
ARY
PROGRAM O1000 PAGE :01/ CREATING
NO. CYCLE PROCESS TOOL NAME TOOL NO N–DIA FEED SPINDL
2+1/2
CCV
2+1/2
CVX
001 AUXILIARY INITAL SETING
002 FACING FACING PREP. FACE MILL 72. 40.000 773. 1431.
FACING PREP. FACE MILL 73. 50.000 309. 572.
FACING SQUARE BIDIR
PROCESS END
