B–63294EN/02

2. MACHINING MENU DESCRIPTIONS

– 328 –

(2) Explanation of input items

R : NO. OF REPEAT

Specify the repetition count.

(3) Operation procedure

1. Create the figure to be repeated, then press the [TRANSLAT CO] soft key. The linear move-

ment screen is displayed.

2. Input 2 for NO. OF REPEAT (R), and press the [INPUT END] soft key.

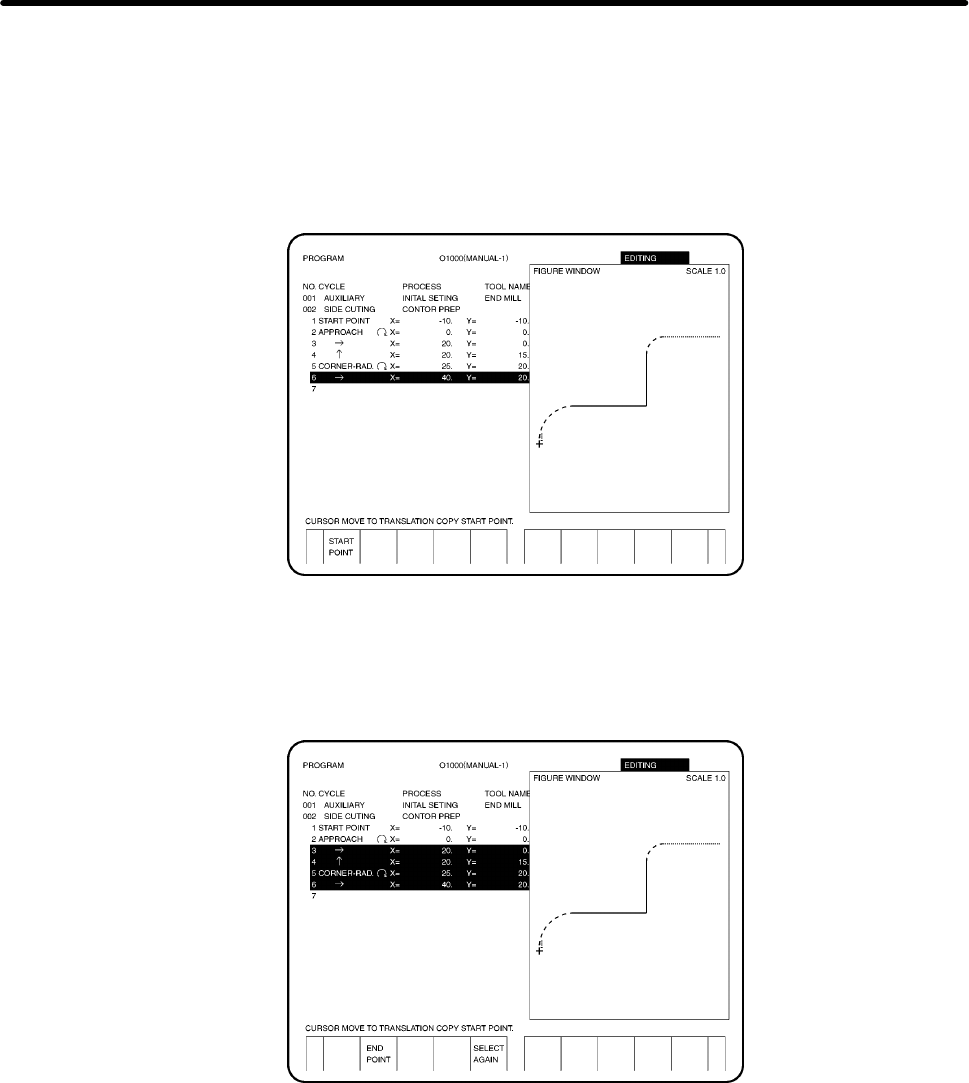

3. Position the cursor on the first block of the figure to be repeated, then press the [START

POINT] soft key.

4. The screen changes as shown in the figure below. Position the cursor on the last block of

the figure to be repeated, then press the [END POINT] soft key.

Press the [RANGE RE–ESTABLISH] soft key, and the screen shown in 2 reappears.

5. The screen changes as shown in the figure below. The figure resulting from the repetition is

displayed on the screen.

Press the [RANGE RE–ESTABLISH] soft key, and the screen shown in 2 reappears.
