2. MACHINING MENU DESCRIPTIONS
– 210 –

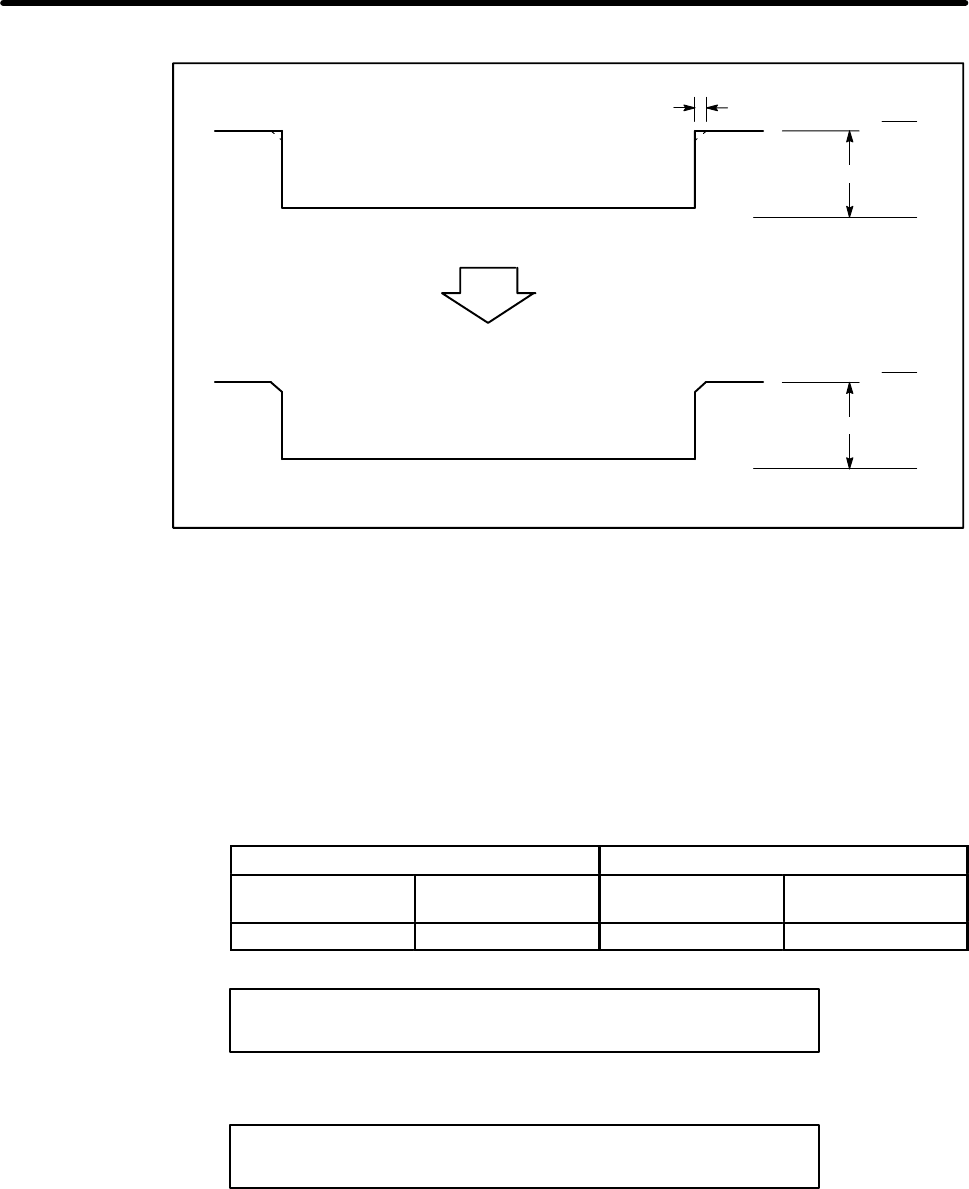

d) When the machining operation (B) is a chamfering operation.
Before chamfering
After chamfering
V
C
R
Z
V
R
Z
1. The chamfer (C) is cue in cut in one pass.
2. For the method of calculating the path of the chamfering tool, refer Side Preparation (ZS01) (3) (d).
e) When the machining operation (B) is a hole machining or hole (peck) operation.
NOTE 1 Which of hole machining and hole (peck) is to be performed is decided automatically, as follows:
Cutting condition file (No. 470) x Allowance (V) – Bottom finish allowance (Y)
No. 470: Maximum depth of cut for hole machining
If the above expression is true, hole (peck) machining is assumed. Otherwise, hole machining
is assumed.
NOTE 2 For an explanation of the machining operation, refer to ”(3) Operation description” of ”Drilling
(ZH01)” and ”Peck drilling (ZH02).”
NOTE 3 In canned cycles, the following G codes are output.
Hole machining Hole (peck)
Dwell performed Dwell not performed Retract >
Point R – Point Z
Retract
x Point R – Point Z
G82 G81 G73 G83
NOTE 4 Set the following parameters:
Depth of a single cut during hole (peck) machining
Unit of setting: 1/1000 mm
1/10000 inch
9222
Peck depth during hole (peck) machining (for a modal cycle)
Unit of setting: 1/1000 mm
1/10000 inch
9223
