SUPER CAPi M Operators manual Page 295

Operators manual

Page of 462

/ 462

B–63294EN/02

2. MACHINING MENU DESCRIPTIONS

– 285 –

4. Slanted line

1 2 3 4 5 6 7 8

B MOVEMENT

DIRECTION

½ ¾ ¼ ¿

H HORIZON-

TAL/RIGHT

ANGLE

HORIZON-

TAL

RIGHT

ANGLE

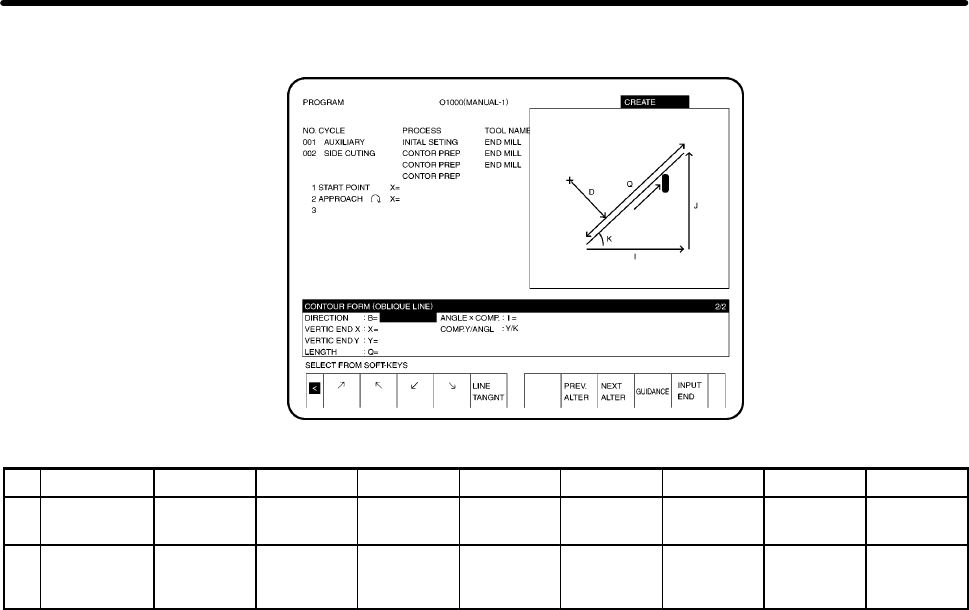

(1) Screen explanation

When the [½], [¾], [¼], or [¿] soft key is pressed on the figure selection screen, this screen appears.

(2) Explanation of input items

I : ANGLE X COMPONENT

Enter the X component of the angle.

J/K:ANGLE Y COMPONENT/ANGLE

Enter the angle or the Y component of the angle.

Usually, the angle can be specified in 0.001° units, with the angle of the right side of the X axis on the

screen being assumed 0° and the counterclockwise direction being assumed the positive direction.

Depending on the movement direction, however, the angle can be calculated as follows:

H : HORIZONTAL/RIGHT ANGLE

Select between the [HORIZONTAL] and [VERTICAL] soft keys to specify which of horizontal or right–

angle straight lines is to be defined in a previous block.

P : REFERENCE BLOCK NUMBER

When a horizontal or right–angle straight line is to be defined in a previous block, enter the block num-

ber.
