SUPER CAPi M Operators manual Page 43

Operators manual
B–63294EN/02 1. OVERVIEW OF Super CAPi M
– 33 –

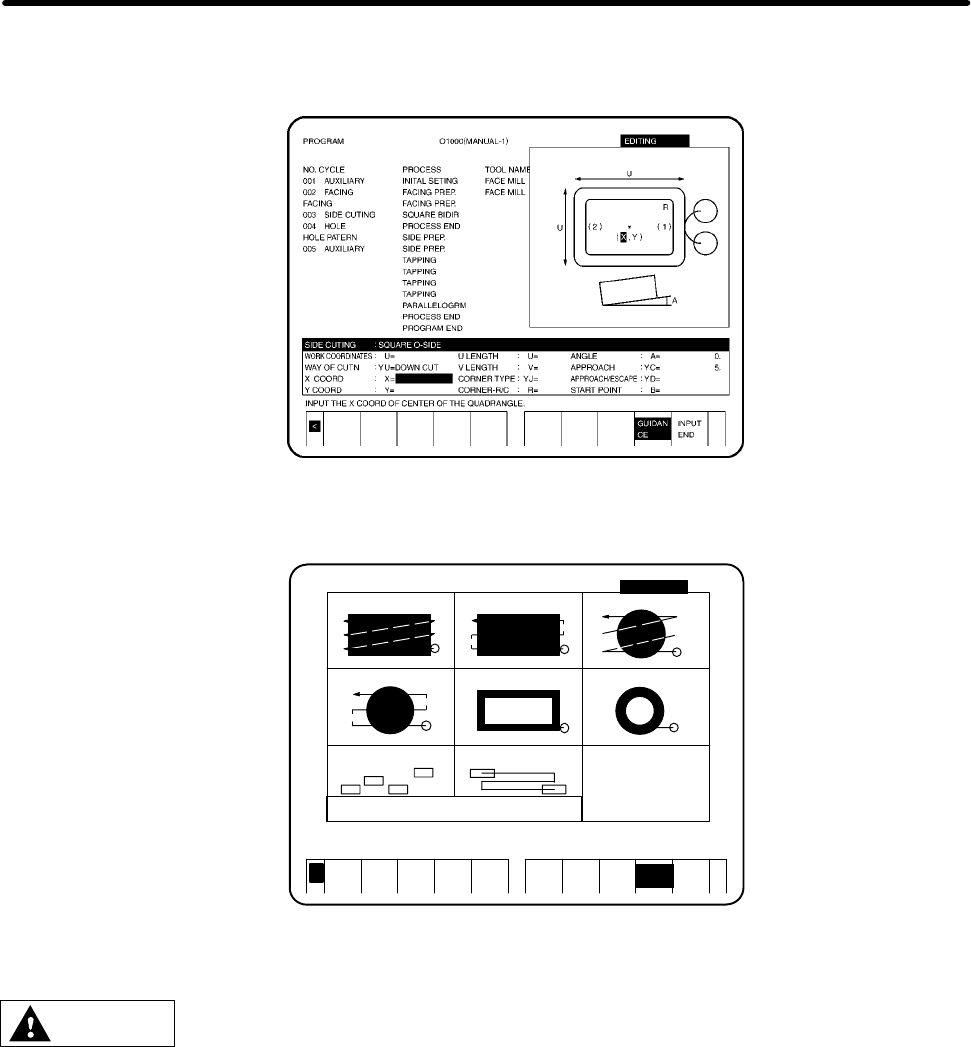

3. Select a desired machining menu and enter the machining data. The new process is added after the pro-
cess at which the cursor is currently placed. When a side cutting process is inserted, for example, the fol-
lowing screen is displayed:
NOTE 1 Usually, the process end need not be inserted. When a figure menu is inserted as shown below,
the soft key [PROCES END] is not displayed. The soft key [INSERT END] is displayed instead.
The process end is not inserted by pressing the soft key [INSERT END].
WHEN COPYING EACH MENU,SELECT EITHER ONE
IN ADVANCE.
0807
SELECT SOFTKEY.
0504030201
<
PROCES
END
PROGRAM O1000 PAGE :01/ EDITING
GUIDAN
CE
06
01 SQUARE UNIDIR 02 SQUARE BIDIR
04 CIRCLE BIDIR
03 CIRCLE UNIDIR
05 SQUAREFRING
08 COPY PATTRN
06 CIRCLE DRING
07 COPY RANDOM
NOTE 2 If the program end is inserted, the program may contain two program ends, causing a contradic-
tion. In this case, the system indicates the following alarm message and does not insert the pro-
gram end: END OF PROGRAM ALREADY EXISTS.
Whenever you insert a process, ensure that a logical machining sequence is maintained. If in-
serting a process produces a non–logical sequence, the sequence must be reedited, because
there is no copy of the sequence as it existed prior to insertion of the process.
If the machining sequence is logically incorrect, the tool may collide with the workpiece, or the
machine may be forced to perform machining that exceeds its physical capabilities, possibly
causing damage to the tool and/or machine, or even injury to the user or bystanders.
WARNING
