SUPER CAPi M Operators manual Page 80

Operators manual
B–63294EN/021. OVERVIEW OF Super CAPi M
– 70 –

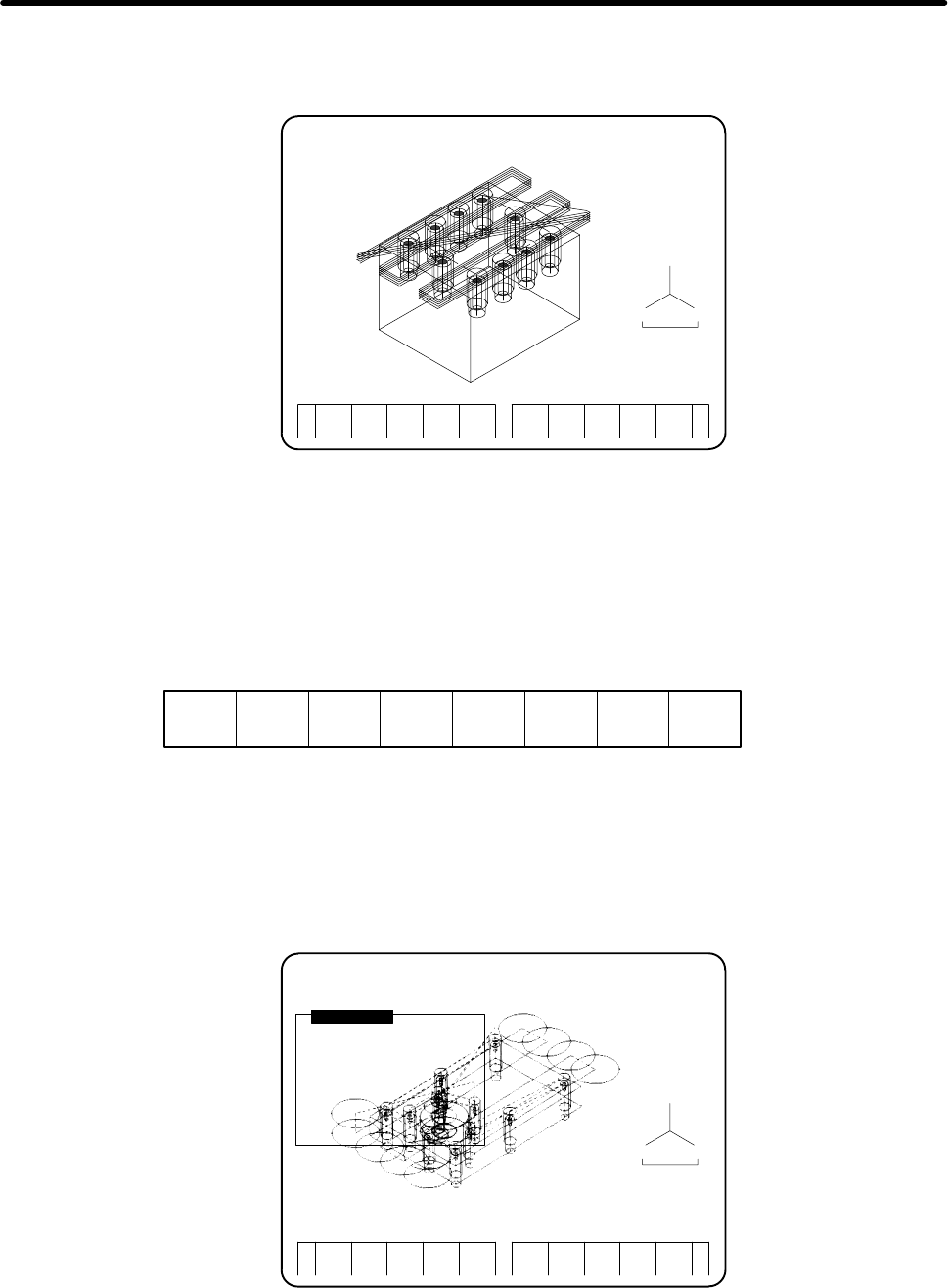

4. When [DECIDE] is pressed, the graphic screen below appears. Then press [DRAW START]. NC state-
ment output is executed as well as tool path drawing. (Tool path drawing is always performed after scaling
is executed.)
PRESS RETURN SOFTKEY MEM STRT *** *** 10:44:33 DRAWING
RETURN
PATH GRAPHIC (EXECUTION)
X –50.000
Y 0.000
Z 10.000
01234 N00007
50.4
z
XY
CONVERT NC FORMAT
When tool path drawing is started and NC commands are executed, the selected machining program is
converted to an NC statement program block–by–block for storage in a part program storage area or for
output to an external storage unit.
NOTE 1 If an NC statement program number specified for conversion is already registered in the NC
statement program storage area, P/S alarm 73 is always raised regardless of parameter setting.
In such a case, change the program number, or delete the existing program with the same pro-
gram number before starting conversion processing.
NOTE 2 If the following bit is set, the converted NC statements can be displayed in the tool path drawing.
#7 #6 #5 #4 #3 #2 #1 #0
FANUC standard settings
9133 CSB CDD
CDD : Determines whether the converted NC statements are displayed on the screen.
0 : Not displayed
1 : Displayed
CSB : Determines whether the converted NC statements are displayed one block by one block.
0 : Not displayed
1 : Displayed
MEM **** *** *** 16:44:27
PATH GRAPHIC (EXECUTION)
CONVERT NC FORMAT
X 0.000
Y 0.000
Z 0.000
O0030 N00030
35.9
z
XY
F 280.000
S 254
T25
MACHINING TIME
00:07:33
O0030 →O0033
X–65.Y40.;
G52X0.Y0.Z0.;
G52X0.Y0.Z0.;
X37.5Y29.;
X9.919Y8.961;
X20.454Y–23.461;
X54.546Y–23.461;
X65.081Y8.961;
G52X0.Y0.Z0.;
M30;
