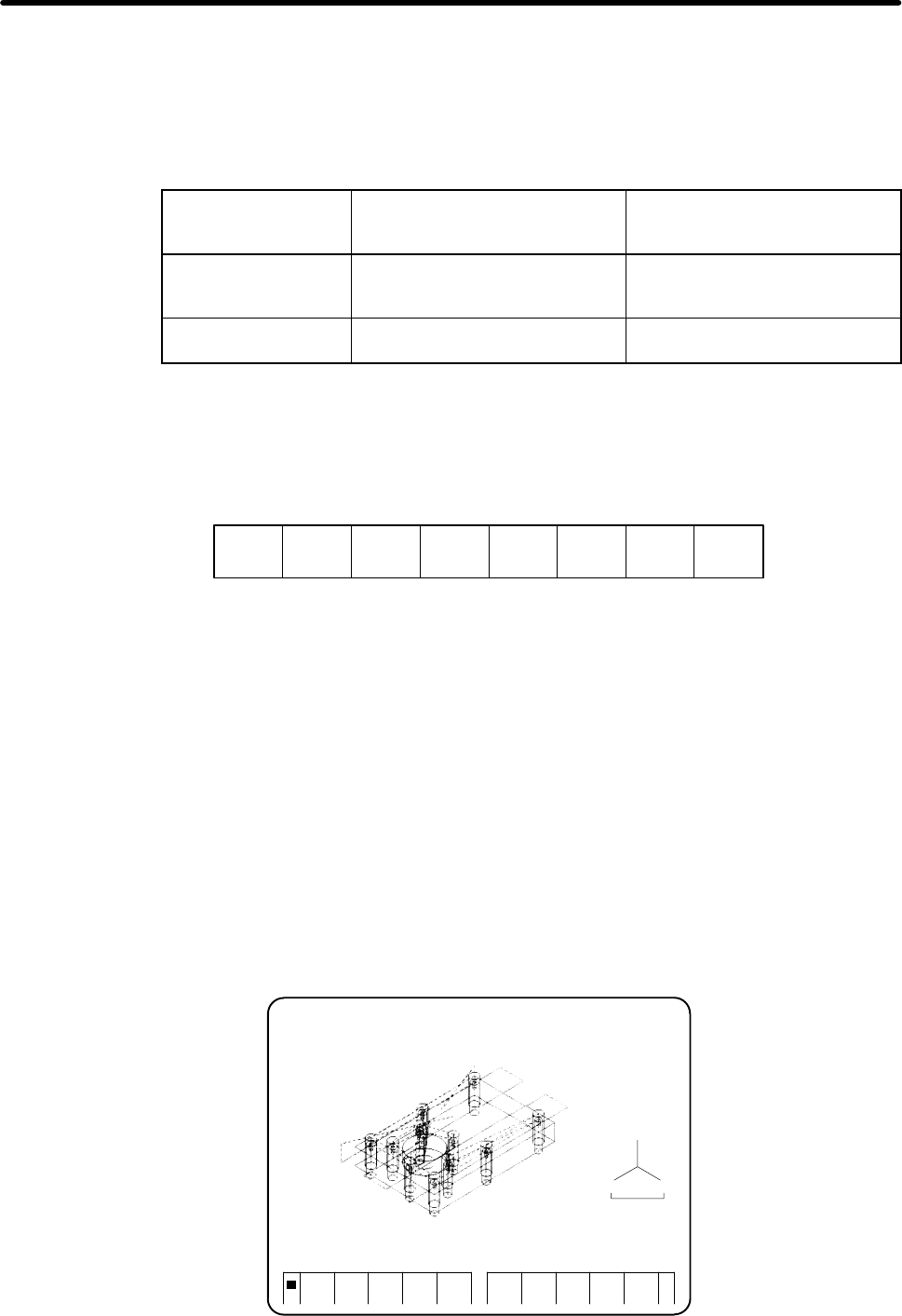

B–63294EN/02 1. OVERVIEW OF Super CAPi M

– 51 –

NOTE The soft keys [SCALING ON/OFF] and [SINGLE BLOCK] indicate drawing execution condi-

tions. Pressing these soft keys does not start operation.

fAdditional information on [SCALING ON/OFF]

Each time this soft key is pressed, the display of [SCALING ON] switches to [SCALING OFF],

or vice versa. Usually, the [SCALING OFF] mode is set. If [DRAW START] is pressed when

[SCALING OFF] is displayed, drawing is startedusing the current scale value data.

If [DRAW START] is pressed when [SCALING ON] is displayed, automatic scaling is peformed

before drawing is started. Scaling is performed according to the table below.

When the machining profile diplay

is provided by the drawing

parameter setting

When the machining profile diplay

is not provided by the drawing

parameter setting

Program created in the

conversational mode

Scaling is performed based on the

machining profile. Scaling time is

shorter(*1).

Scaling is performed based on the

tool path. Scaling time is longer.

Ordinary NC program Scaling is performed based on the

tool path. Scaling time is longer.

Scaling is performed based on the

tool path. Scaling time is longer.

*1 When bi–plane drawing is selected, scaling is performed based on the machining profile and the

tool path.

After the results of scaling are set in the maximum value and minimum value drawing parameters, drawing

is started. The tool path drawing is then displayed in the proper scale on the screen.

In addition, when a program number is changed, the [SCALING ON] mode can be set automatically by

specifying the below parameter.

#7 #6 #5 #4 #3 #2 #1 #0

9106 SCL

SCL: When the previous program number differs from the current program number on

the graphic screen:

0: The [SCALING OFF] soft key is displayed.

1: The [SCALING ON] soft key is displayed.

After drawing is performed in the [SCALING ON] mode, the mode is automatically switched to the [SCAL-

ING OFF] mode.

If scaling takes too long, drawing can be started earlier as described below.

1. Stop scaling by using soft key [STOP]. The maximum and minimum values obtained by this time are

set.

2. Press [DRAW START].

A slightly inaccurate scale value is used, but drawing can be performed by reducing the time for scaling.

f Additional information about [SINGLE ON/OFF]

Each time this soft key is pressed, the display of [SINGLE ON] switches to [SINGLE OFF], or vice

versa. The display of [SINGLE ON] represents the single block mode. When [SINGLE OFF] is

displayed, continuous drawing is performed.

2. Start of tool path drawing

Press [DRAW START] to start drawing.

MEM **** *** *** 15:09:21

TOOL

POS.

SOALEGRAPH

PARAM

SOLID

GRAPH

DRAW

START

SINGLE

OFF

SCALIN

G OFF

ERASE

PATH GRAPHIC (EXECUTION)

X 0.000

Y 0.000

Z 0.000

O0030 NO0030

35.9

F 280.000

S 254

T25

MACHINING TIME

00:07:33
