Power Mate 0 Connection manual Page 138

Connection manual
4. RESET & EMERGENCY STOP
B–63443EN/02
PMC INTERFACE
128
When the emergency stop signal *ESP turns to “0”, the emergency stop
is applied to the machine and the Power Mate is reset. This signal is
controlled by the B contacts of a pushbutton switch. The emergency stop
signal turns the servo ready signal (SA[3.2]) to “0”.
Overtravel detection by this Power Mate is handled by the software limit
function, and a limit switch for normal overtravel detection is not needed.
To prevent the machine from moving beyond the software limit through
servo feedback error, always install a stroke end limit switch (shown in
Fig. 4.1 below).
*ESP
*ESP
24V
24V
+X–X+n
Emergency stop limit switch
Emergency stop
Emergency stop temporary release
Power Mate

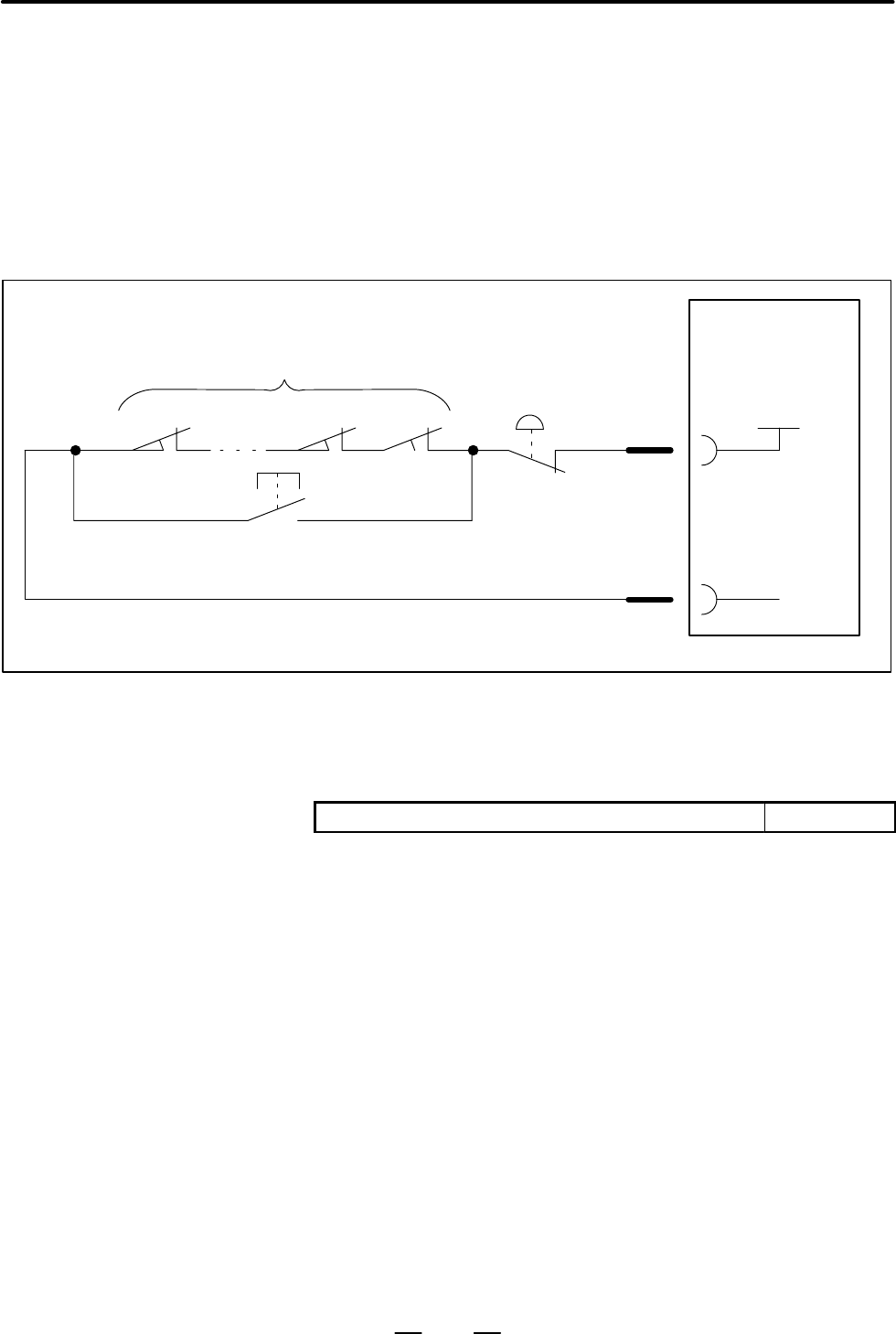

Fig.4.1 Connection of Emergency Stop Circuit
Refer to AC Servo Motor β series DESCRIPTIONS for the distance
SERVO MOTOR β series DESCRIPTIONS
B–65232EN
4.1
EMERGENCY STOP
SIGNAL (INPUT) *ESP
<X0000#4, X1000#4,
G008#4>
