Power Mate 0 Connection manual Page 281
Connection manual
B–63443EN/02

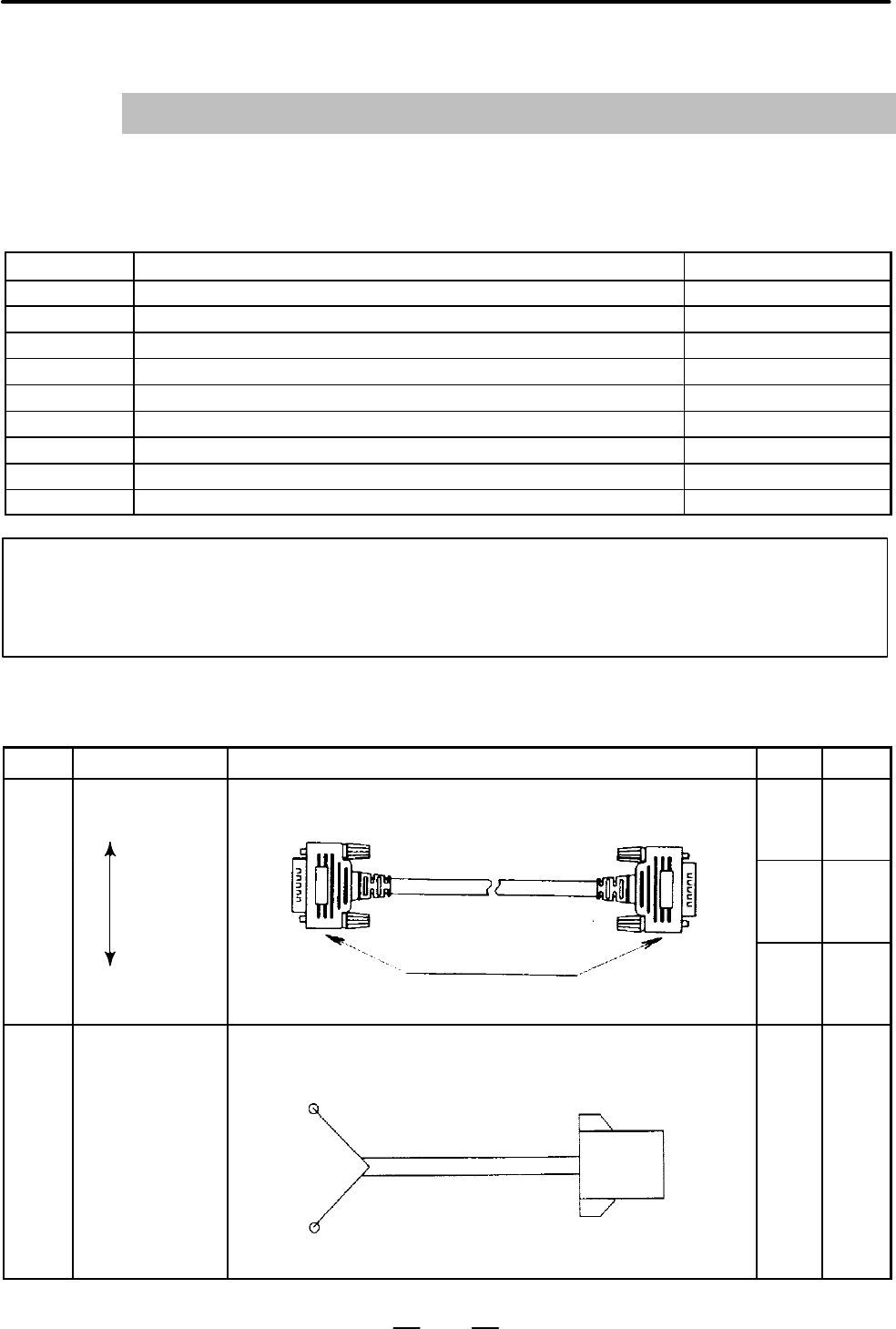

D. INTERFACE CABLE
APPENDIX
271
D
INTERFACE CABLE
Cables
Cable No.
Name and connection Maximum length (m)
J6 DPL/MDI cable between the M4 and DPL/MDI unit 40
J30 Power cable between the 24 V power supply and Power Mate, CRT/MDI, DPL/MDI
J40 Position coder cable between the JA12 and position coder 50
J41 Manual pulse cable between the JA13 and manual pulse generator 50
J42 Punch panel cable between the JD5 and an I/O unit relay connector 50
J45 CRT/MDI interface cable between the JD14 and JD13 50
J86, J87 Built–in I/O cable between CB128, or CB129 and power magnetics cabinet 50
J93 1st axis servo cable (type B interface) between JS1 and servo amplifier 50
J94 2nd axis servo cable (type B interface) between JS2 and servo amplifier 50
NOTE
Each maximum allowable cable length relates to the use of the cable for an interface signal.
For some cables (such as that for a pulse coder) that contain a power cable, however, an
additional limit, based on a drop in the supply voltage, is imposed.
The following interface cables are provided.
Name Application Specifications Code Length
Cable for DPL/MDI
DPL/MDI
EMI–immune molded interface cable (by Oki Densen)
A02B–
0118–
K820
2m
J6
A02B–
0118–
K821
7m
Power Mate
D–SUB15 (male)
A02B–
0118–
K822
14m
J30
+24V power cable for
the CRT/MDI, CNC,
or DPL/MDI
Crimp terminal
T3–2
AMP JAPAN, LTD
2–178288–3
A02B–
0124–
K830
5m
