Series 16i/160i/160is/18i/180i/180is/ Maintenance manual Page 372

Maintenance manual

Page of 1105

/ 1105

4. STAND–ALONE TYPE i SERIES HARDWARE

B–63525EN/02

342

WARNING

Before starting the replacement of a fuse, remove the cause

of the fuse burn–out.

Accordingly, the replacement should be performed by a

person fully trained in maintenance and safety. If the

cabinet is opened to replace the fuse, take extreme care not

to touch any high–voltage area (marked with and

covered by a shock prevention cover). If the area is

uncovered, direct contact with this area will result in an

electric shock.

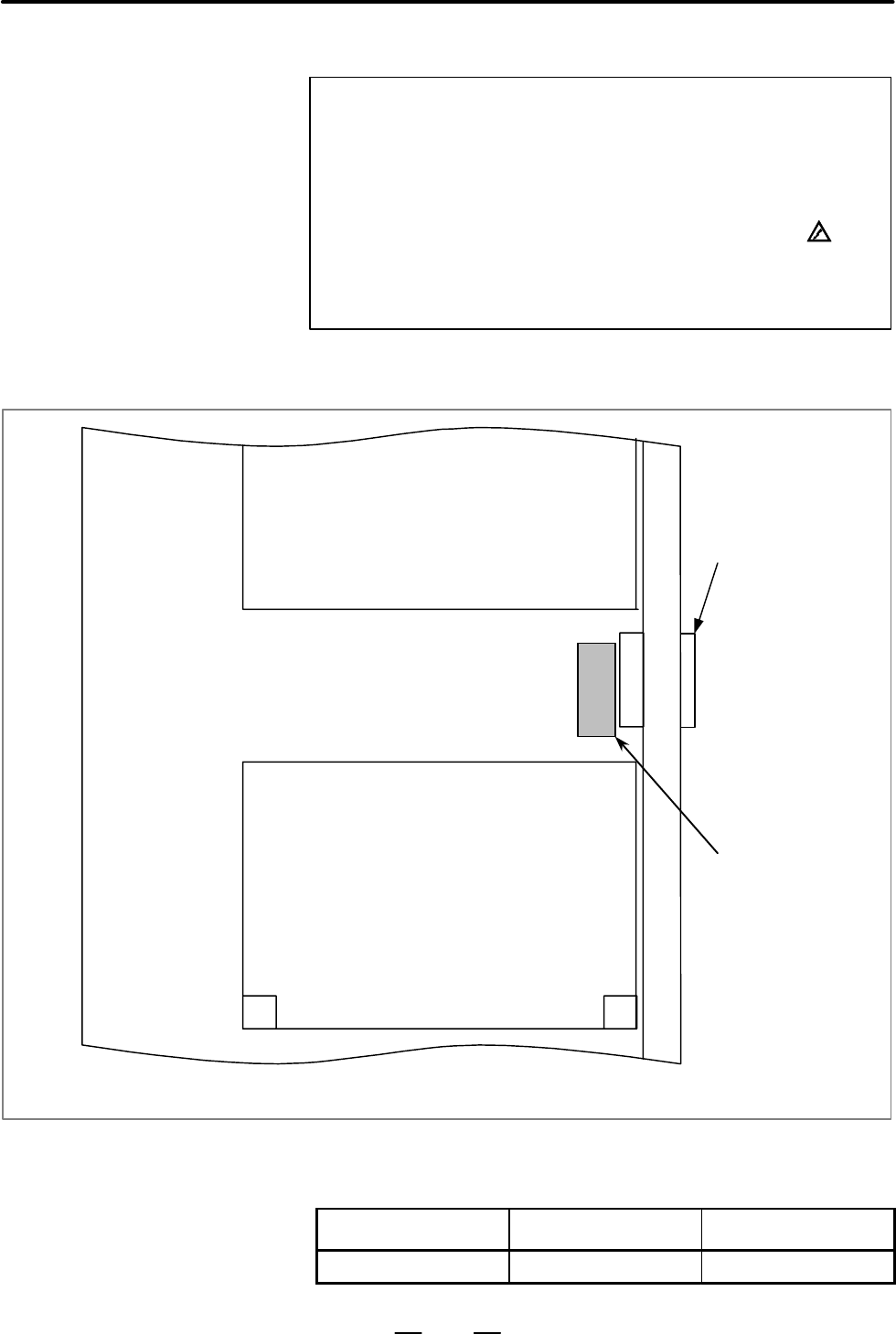

The fuse of the control unit is mounted on the main CPU board.

Axis control card

Fuse

CP1, CP2

Main CPU board

Display control card

Ordering information Rating Individual information

A02B–0265–K100 7.5A A60L–0001–0046#7.5

4.8

REPLACING THE

FUSE OF THE

CONTROL UNIT

D Mounting position of the

fuse of the control unit

D Ordering information of

the fuse
