5. MATTERS COMMON TO BOTH LCD–MOUNTED TYPE

AND STAND–ALONE TYPE i SERIES (HARDWARE)

B–63525EN/02

382

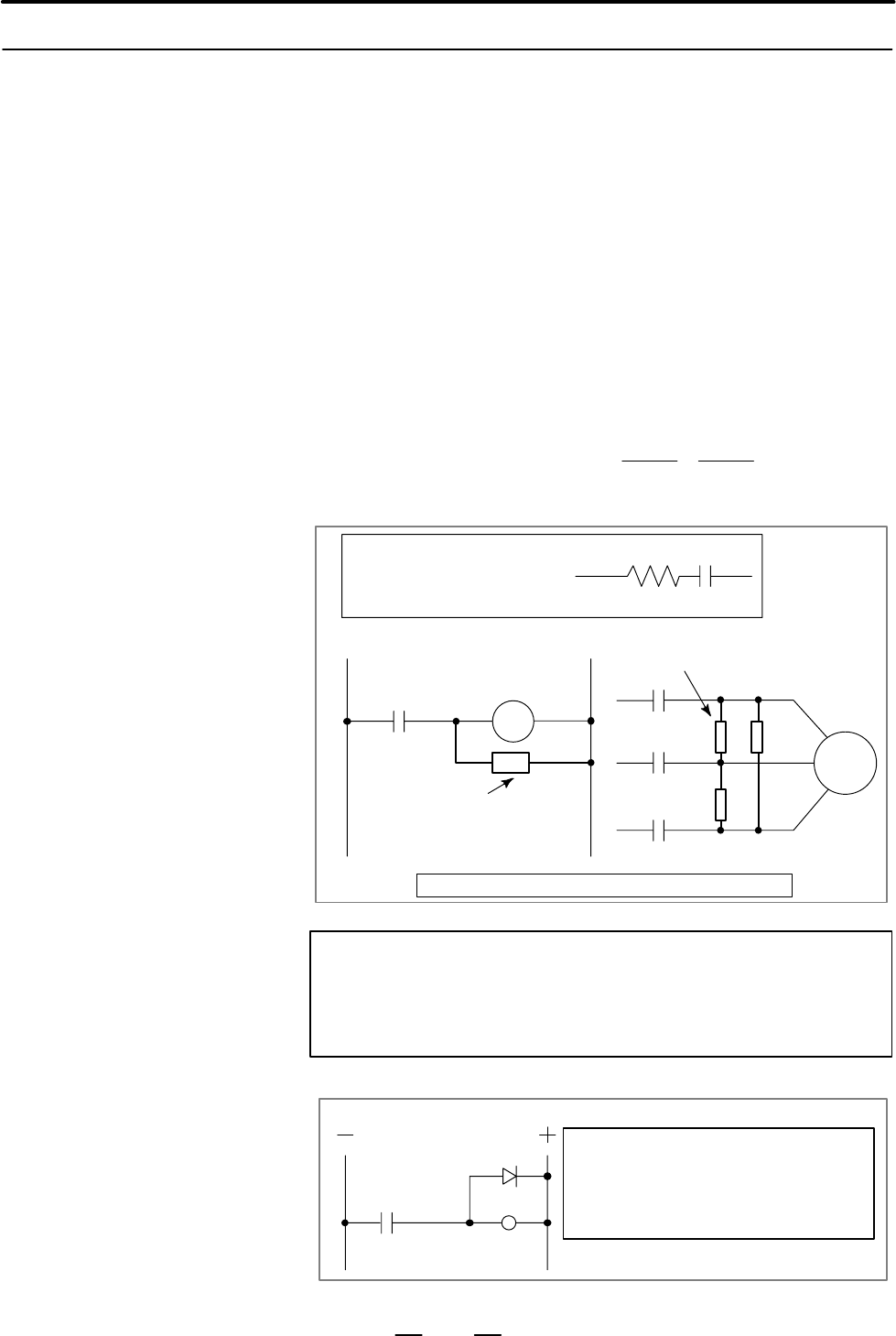

With a power magnetics cabinet, components such as an AC/DC solenoid

and AC/DC relay are used. When turned on and off, these components

generate a high–energy pulse voltage due to coil inductance.

Such a pulse voltage is induced into cables, for example, and can interfere

with electric circuitry.

D Select a CR–type spark killer (for use with AC circuitry) (A varistor

has a function for clamping the peak voltage of a pulse voltage, but

cannot suppress a spike–like voltage. For this reason, the use of a

CR–type spark killer is recommended.)

D As the CR values of a spark killer, use the following with the

steady–state coil current (I (A)) and DC resistance used as references:

1) Resistance (R): Coil DC resistance

2) Electrostatic capacitance (C):

(mF)

I: Coil steady–state current (A)

Equivalent circuit of spark killer

AC relay

Spark killer

Motor

Install a spark killer near a motor, relay, and coil.

Spark killer

NOTE

Use a CR–type noise suppressor. A varistor has a function

for clamping the peak voltage of a pulse voltage, but cannot

suppress a spike–like voltage.

Diode (used for DC circuitry)

Diode

DC relay

As a guideline, select a diode which has

a breakdown voltage about two times

greater than an applied voltage, and al-

lows the flow of a current about two

times higher.

5.8.4

Noise Suppressor

Notes on spark killer

selection
