B–63525EN/02

4. STAND–ALONE TYPE i SERIES HARDWARE

349

WARNING

The replacement described here should be performed by a

person fully trained in maintenance and safety. If the

cabinet is opened to replace the unit, take extreme care not

to touch any high–voltage area (marked with and

covered by a shock prevention cover). If the area is

uncovered, direct contact with this area will result in an

electric shock.

Backlight Ordering information Individual information

For 9.5″ LCD A02B–0281–K114 A61L–0001–0154#BLC

NOTE

The back–light of the 10.4I color LCD cannot be replaced.

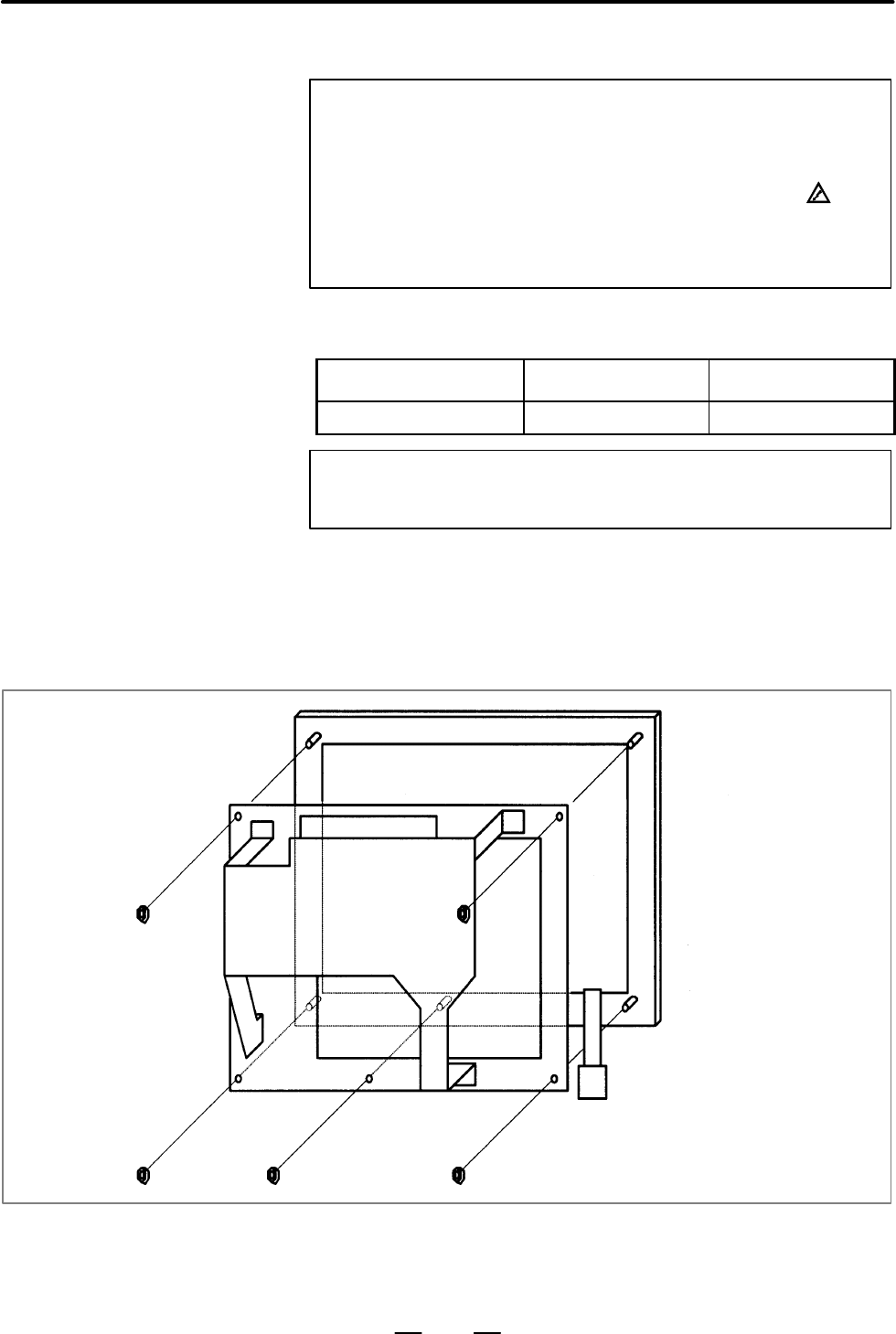

(1)Remove soft key cable connector CK2, then remove the escutcheon

from the LCD unit.

If the unit has a touch panel, remove touch panel signal cable connector

CN1 as well.

Escutcheon

Soft key cable

CK2

4.12

REPLACING THE

LCD BACKLIGHT

D Ordering information of

the backlight

D Replacing the backlight
