Series 16i/160i/160is/18i/180i/180is/ Maintenance manual Page 395

Maintenance manual
B–63525EN/02
5. MATTERS COMMON TO BOTH LCD–MOUNTED TYPE
AND STAND–ALONE TYPE i SERIES (HARDWARE)
365
2–2) For A02B–0236–K130
<1> Peel off the white film attached on the back (facing the
LCD) of the new protection sheet.

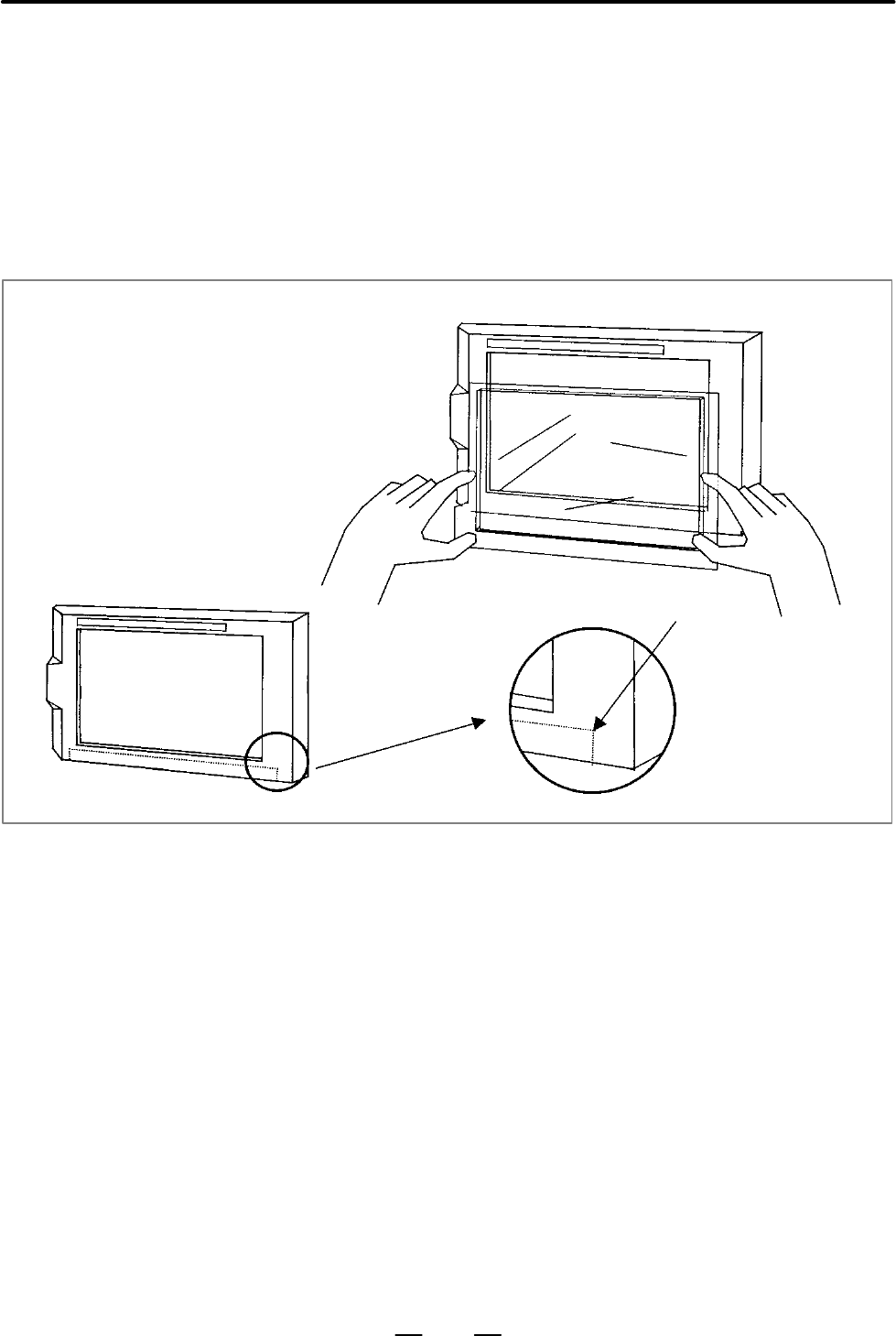

<2> Attach the protection sheet so that it is to the lower–left
of the replacement tab. At this time, align the overhang
edge at bottom of the escutcheon with the corresponding
part of the protection sheet. In addition, prevent dust
from entering between the LCD and the protection sheet.
Guide position
<3> Attach the four sides while pushing out air between the
touch panel and the protection sheet.
D Do not pull the protection sheet to correct its position
with the part of the sheet kept stuck to the touch panel.
<4> Press the adhesive parts of the four sides, and attach the
sheet completely.
D Check that the four corners and four sides of the
protection sheet do not float.
3) Checks after replacement
<1> Check that there is no wrinkle on the surface of the protection
sheet.
<2> After power–on, check that there is no touch panel portion kept
pressed.
<3> Press the touch panel, and check that correct operation takes
place.
