Series 16i/160i/160is/18i/180i/180is/ Maintenance manual Page 501

Maintenance manual
B–63525EN/02
7.INTERFACE BETWEEN CNC AND PMC
471
A ladder net can be read from the selection monitor screen. Use the
procedure below to read a ladder net.
(a) Specification of an address
1 Enter an address to be monitored. (Example: R14.7)
2 Press the [PICKUP] soft key.
3 The net where the address specified in 1 above is used for a coil
is read into the start of the screen.
(b)Specification of an address from the ladder net on the screen
1 Move the cursor to the relay, in a ladder net, which uses an
address to be monitored.
2 Press the [PICKUP] soft key.
3 The net where the address specified in 1 above is used for a coil
is read into the start of the screen, and the cursor moves to the
coil position.

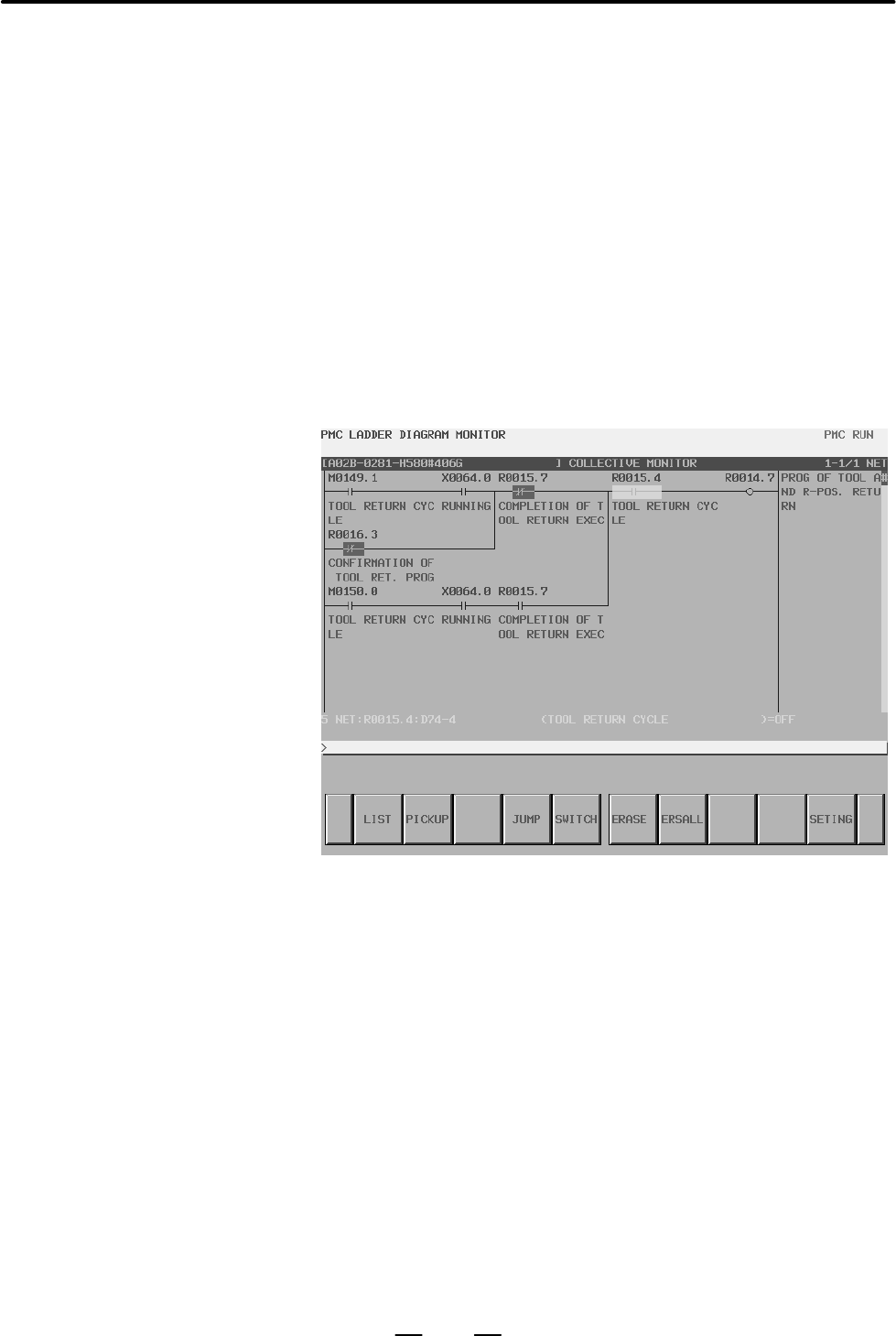

Selection monitor screen
A ladder net can be read from the ladder diagram display screen. Use the
procedure below to read a ladder net.
1 On the ladder diagram display screen, press the [SEARCH] soft
key to display the soft keys for search.
2 Move the cursor to a ladder net to be read.
3 Press the [PICKUP] soft key to read the net specified in 2 above to
the start of the selection monitor screen.
4 The ladder net read into the selection monitor screen is marked with
F at the left end of the net.
D Reading a ladder net on
the selection monitor
screen
D Reading a ladder net
from the ladder diagram
display screen
