Series 16i/160i/160is/18i/180i/180is/ Maintenance manual Page 512

Maintenance manual
7. INTERFACE BETWEEN CNC AND PMC
B–63525EN/02
482
After trace parameter setting, press the [START] soft key on the trace
screen. Trace operation is started.
The screens below are examples of execution in the period mode and
signal transition mode.

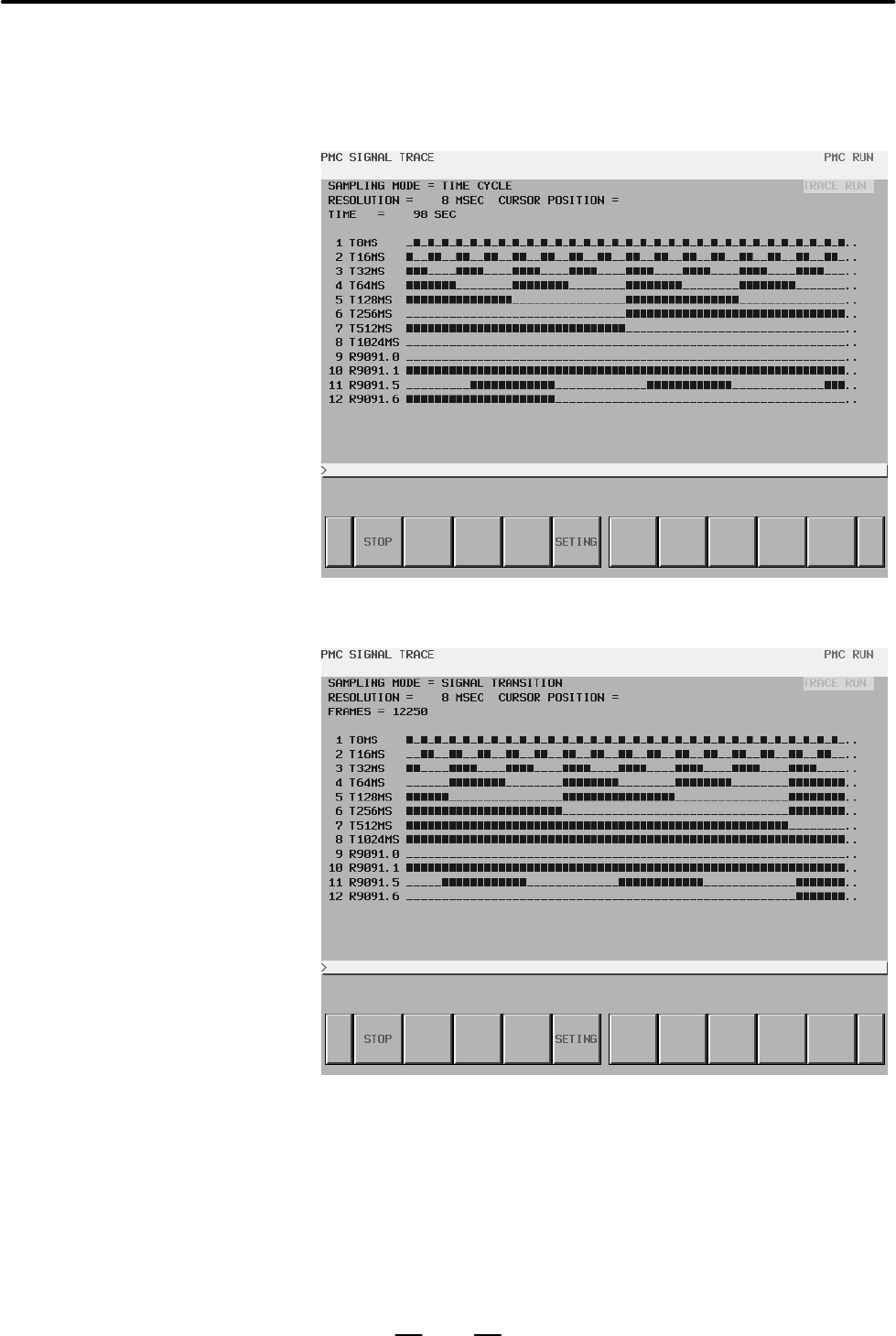

Signal trace execution screen (time cycle mode)
Signal trace execution screen (signal transition mode)
During trace execution, the results of trace operation are displayed in
real–time mode. When the trace stop condition set in the trace parameter
setting screen is satisfied, trace execution stops. Pressing the [STOP] soft
key also stops trace execution. In the signal transition mode, sampling
is performed when a signal transition is made. So, trace display is not
updated until a trigger signal transition is made.
Trace execution
