7.INTERFACE BETWEEN CNC AND PMC
463

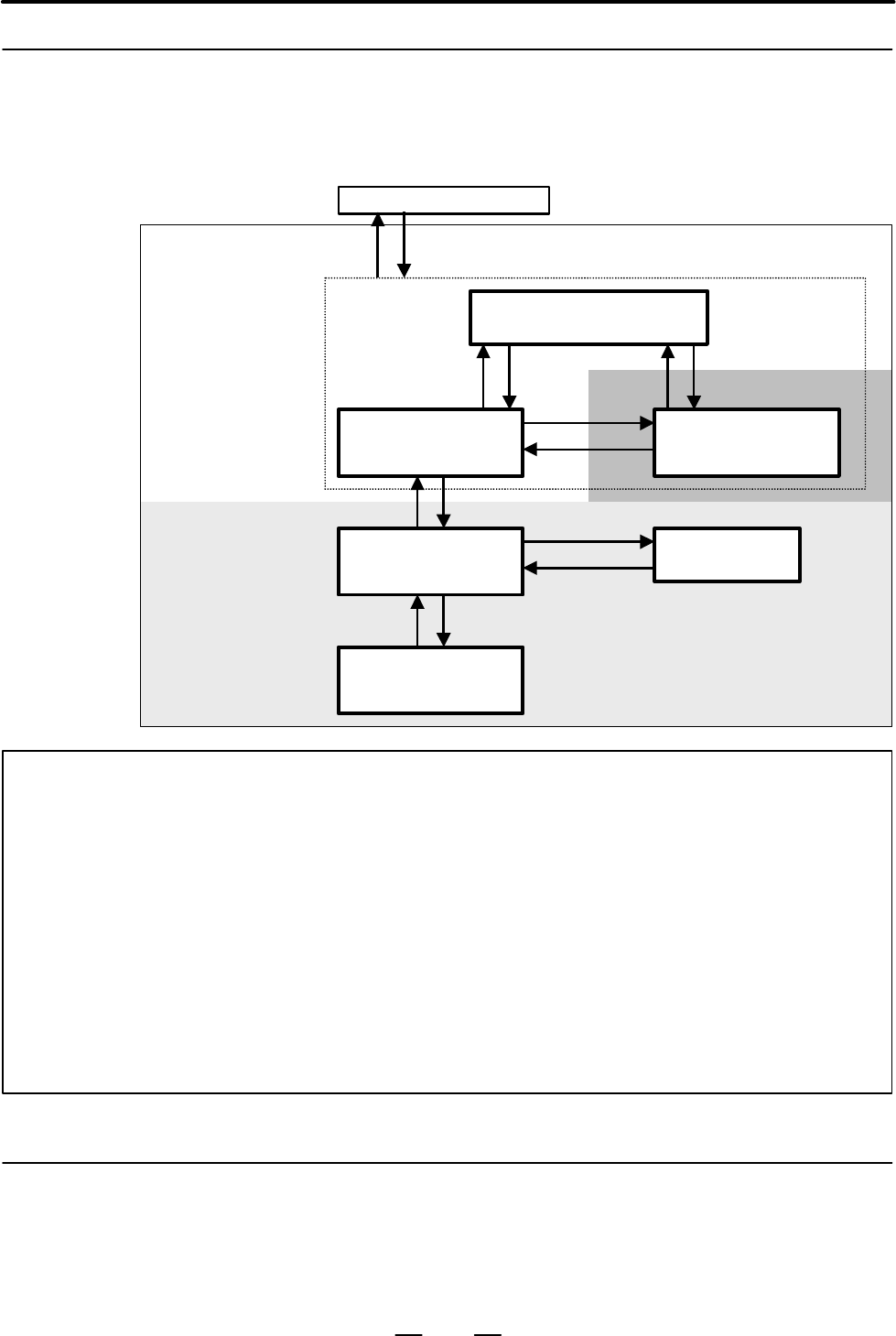

Screen transitions are made as shown below.
Display
Display function
(monitor)
PMC main menu
[LADDER DIAGRAM]
[<]
(NOTE 1)
[EDIT]
Ladder diagram
editing screen
Program list
editing screen
[LIST]
[ZOOM], [<]
Net editing screen
[MODIFY], [ADD]
[<]
Editing function
Ladder diagram
display screen
Program list
display screen
Selection monitor
screen
[SWITCH]
[ZOOM][LIST][ZOOM][LIST]
[<]
[SWITCH]
NOTE
1. When you press the [LADDER DIAGRAM] soft key, the screen previously displayed among the
ladder diagram display screen, selection monitor screen, and program list display screen is
displayed. However, when you press the [LADDER DIAGRAM] soft key for the first time after
turning on the power, the program list display screen is displayed. If a ladder program is
replaced by using the input/output function, the program list display screen is first displayed.
For details, see the description of the program list display screen.
2. The [EDIT] soft key on the ladder diagram display screen is displayed only when the
programmer function is enabled. (To enable the programmer function, specify “YES” for the
setting item “Enable Programmer Function” on the PMC parameter setting screen, or set
K900.1 to 1.) Alternatively, specify “YES” for “Enable Editing” or set K901.6 to 1. While the
online monitor function is enabled, the screen display cannot be switched to the ladder diagram
editing screen. (To disable the online monitor function, set “Not Used” for “RS–232C” and
“High–speed Interface” on the online monitor setting screen.
D Display subprogram switching [LIST]
D Search for addresses [SEARCH]
D Function instruction data table display [TABLE]
7.3.3
Ladder Diagram
Display/Editing
(PMC–SB7)
7.3.3.1
Ladder diagram display
screen
Previous page
Next page
