PROGRAMMING AND

OPERATION BY Symbolic FAPT

B–63304EN/02

3. EXECUTION OF

Symbolic FAPT

144

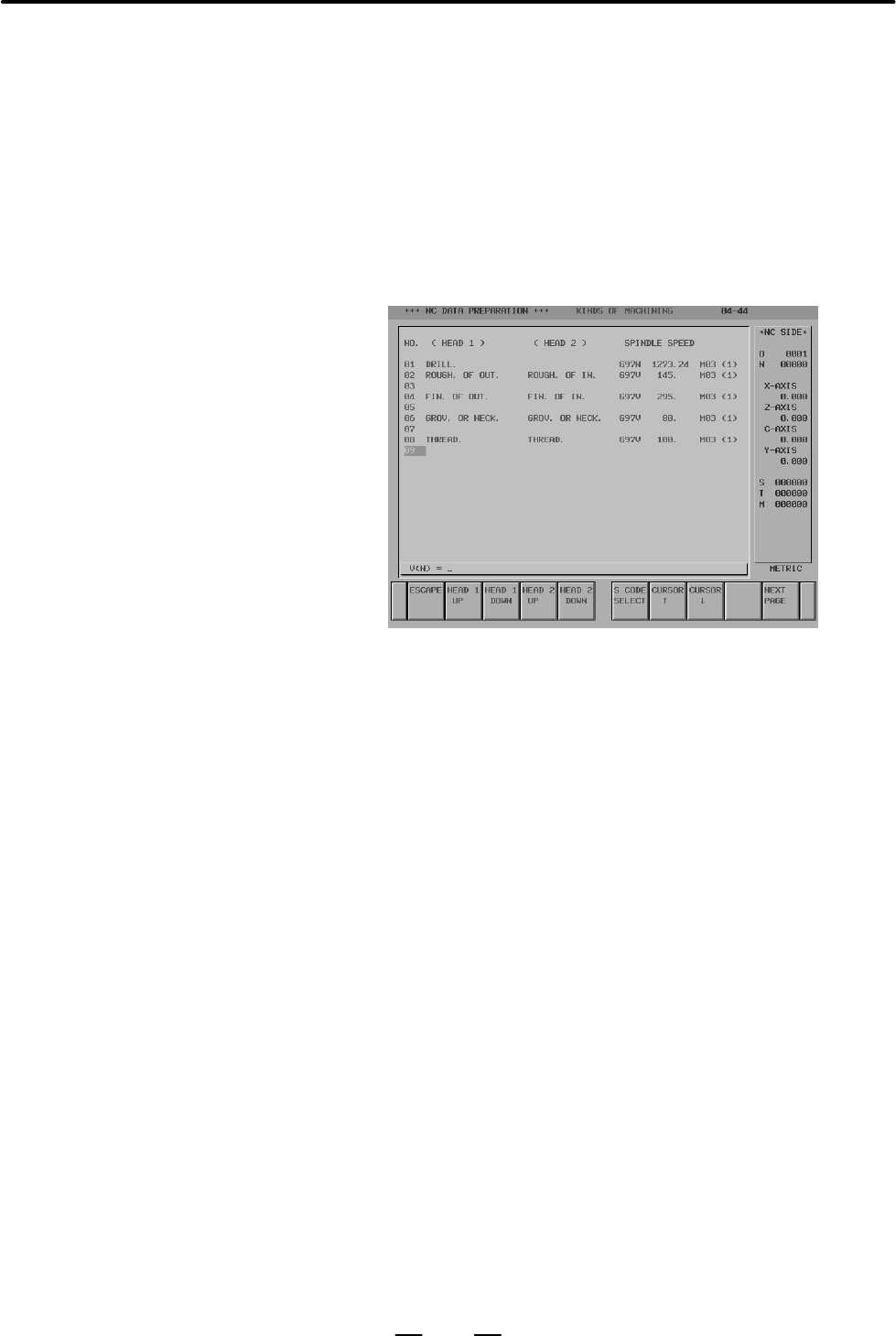

Thus, cutting operations for each turret are displayed. For the section on

spindle speed, “N” means spindle speed, “V” means cutting speed. For

simultaneous operation; No.2 and 3, “ROUGHING OF OUTER

FIGURE” and “ROUGHING OF INNER FIGURE”, operation No.8 and

9, “THREADING” and “DOWN” (or set the cursor to No.3 and depress

“HEAD 2 UP”), and then set the cursor to No.8 and depress the soft key,

“HEAD 1 DOWN” (or set the cursor to No.9 and depress “HEAD 2 UP”)

continuously. For changing the cutting speed of operation No.6,

“GROOVING”, 125 m/min for instance, set the cursor to No.6 and input

125 through keys for the question, V (N) =. When performing such

operations, the operation procedure is displayed as follows.

As for S code, an A code is output from either turret 1 or turret 2 when

a simultaneous operation is executed. Which turret is used can be

recognized by the speed indication on the upper screen. Whenever the

soft key, “S CODE SELECT” is depressed the value of turret 1 and 2 is

alternately displayed.

(2)SOFT KEY

The meaning of soft keys is as follows:

[ESCAPE] Processing of this screen is discontinued.. . . . . . . . . . .

[HEAD 1 UP] Allow the operation sequence of the turret. . . . . . . .

1 located with the cursor to go up by one

step.

[HEAD 1 DOWN] Allow the operation sequence of the turret. . . .

1 located with the cursor to go down by one

step.

[HEAD 2 UP] Allow the operation sequence of the turret. . . . . . . .

2 located with the cursor to go up by one

step.

[HEAD 2 DOWN] Allow the operation sequence of the turret. . . .

2 located with the cursor to go down by one

step.

[S CODE SELECT] When under simultaneous operation, select. . .

the turret for which the S Code has priority.

[CURSOR °] Move the cursor position backward.. . . . . . . . .

[CURSOR ±] Move the cursor position forward.. . . . . . . . .

[NEXT PAGE] Advance to the next screen (screen inquires. . . . . . .

details of the program number.)
