Symbol CAPi T Operators manual Page 723

Operators manual
B–63304EN/02
4. ANIMATED SIMULATION
SCREENS
ANIMATED SIMULATION FUNCTION II
703

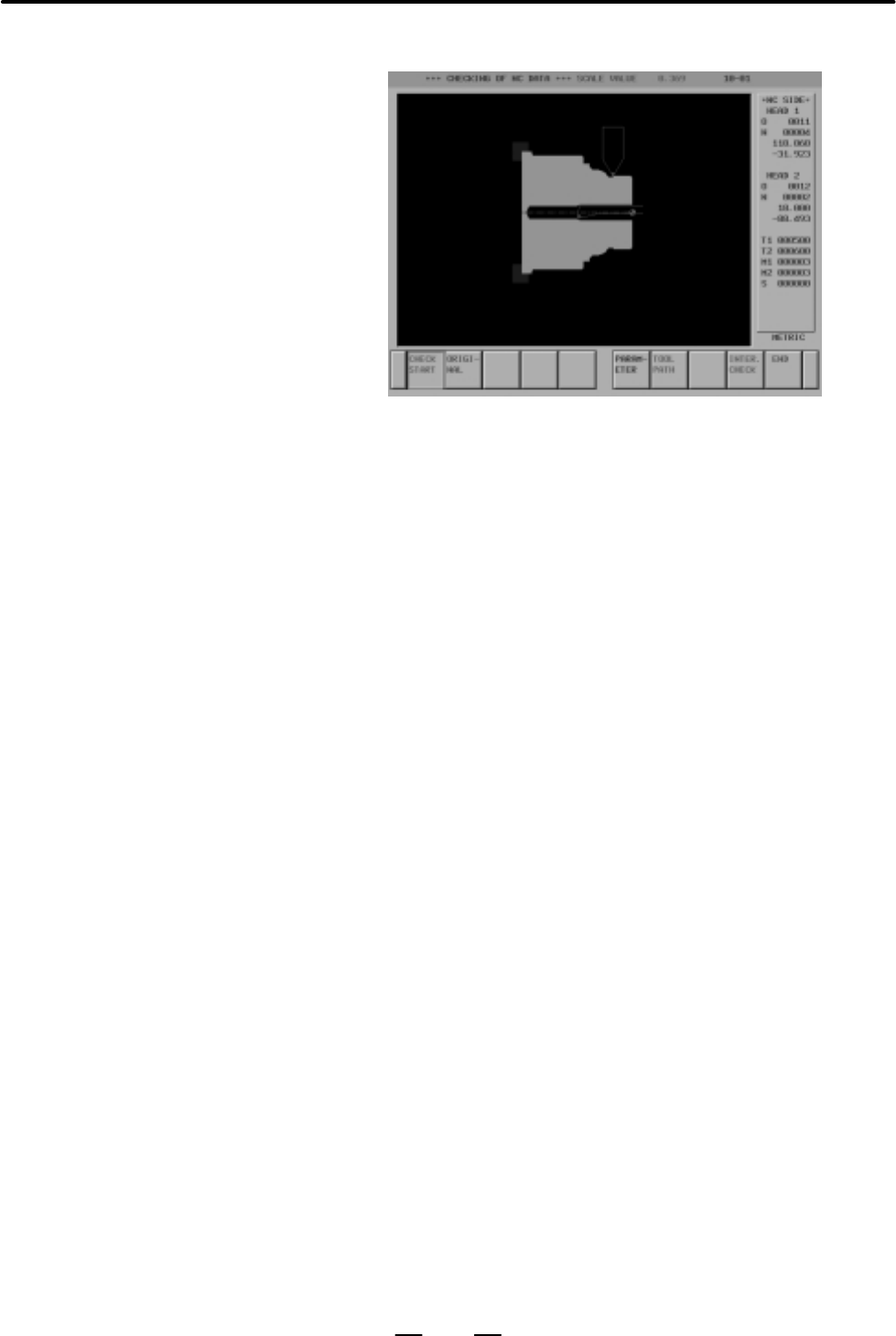

(1)Animated simulation is performed for the first and second turrets. (For
a two–path lathe, animated simulation with gradation is not
supported.)
(2)Normally, the first turret is displayed at the top of the screen and the
second turret is displayed at the bottom of the screen. Setting bit 1 of
system parameter No. 705 to 1 enables the position of the turrets to be
reversed.
(3)When the interference check function is on, interference between the
first and second turrets is checked, as well as interference between a
turret and a chuck or tailstock.
(4)For C–axis animated simulation, drawing is performed in the same
way as for a single–path lathe.
4.6
ANIMATED
SIMULATION FOR
TWO–PATH LATHE
