4. ANIMATED SIMULATION

SCREENS

ANIMATED SIMULATION FUNCTION II

701

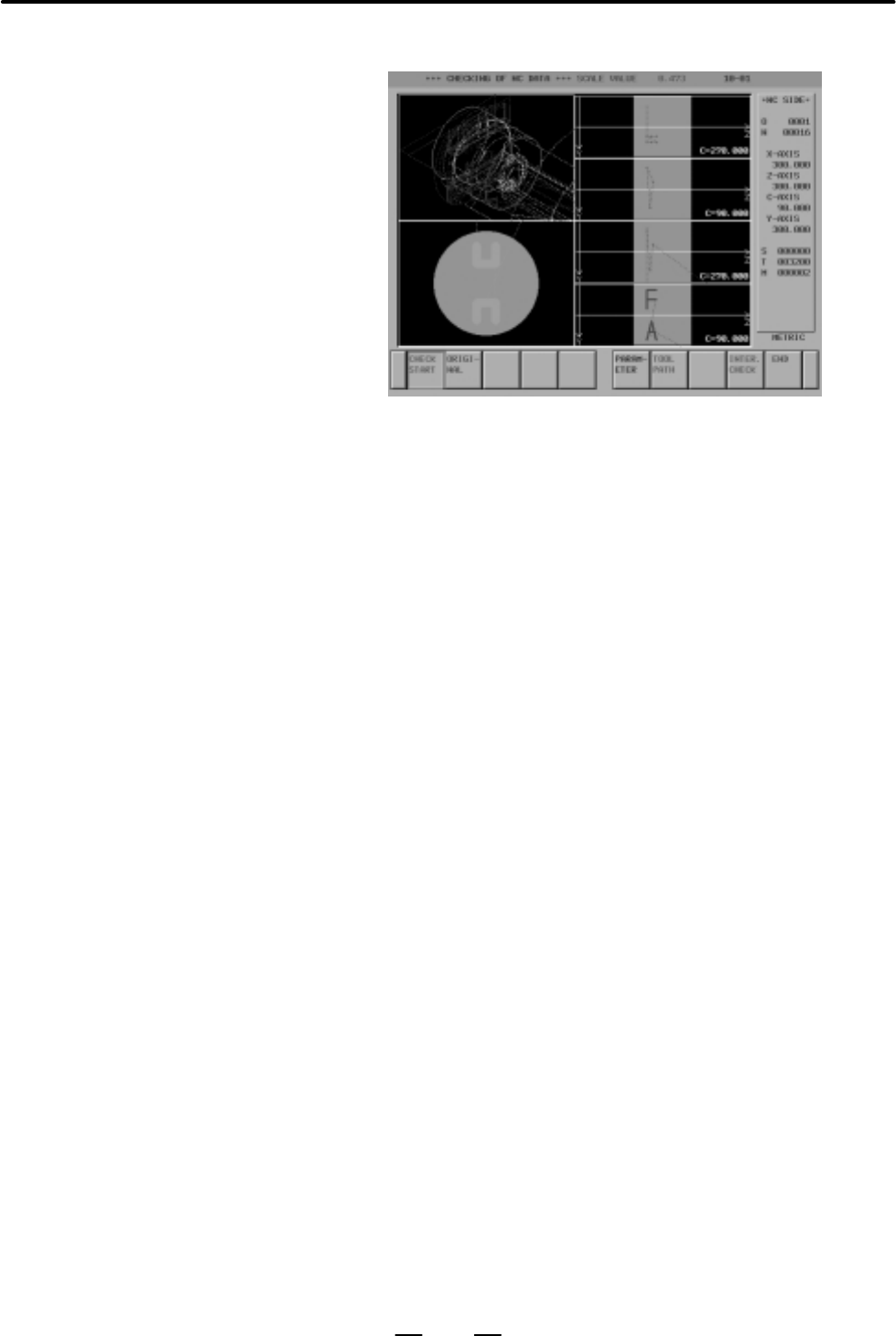

(1)After executing an M code set in system parameter No. 741, executing

the tool selection T code causes switching to the Y–axis machining

screen. This screen is displayed in the same way for animated

simulation with gradation.

(Y–axis side face drawing is updated when the phase angle is

changed.)

(2)The right half of the screen is used to display Y–axis side face

machining, the lower left quarter is used to display Y–axis end face

machining, and the upper left quarter is used to display

three–dimensional line drawing.

(3)For Y–axis side face machining, the screen is further divided into four

pieces. Each time the phase angle is updated, machining display is

scrolled.

(The latest machining result is always displayed at the bottom of the

screen.)

(4)Cutting is represented with a filled–in cross section of the tool tip.

Rapid traverse drawing is represented with a dotted line, regardless of

whether the tool path is set to on or off.

(5)Up to 32 milling tools can be used in Y–axis animated simulation

(including those for C–axis animated simulation). The maximum

usable tool number is 127.

4.4

Y–AXIS ANIMATED

SIMULATION
