Symbol CAPi T Operators manual Page 471

Operators manual

Page of 990

/ 990

B–63304EN/02

3. ANIMATED SIMULATION

FUNCTION (MENU 6)

C–AXIS FAPT FUNCTION

451

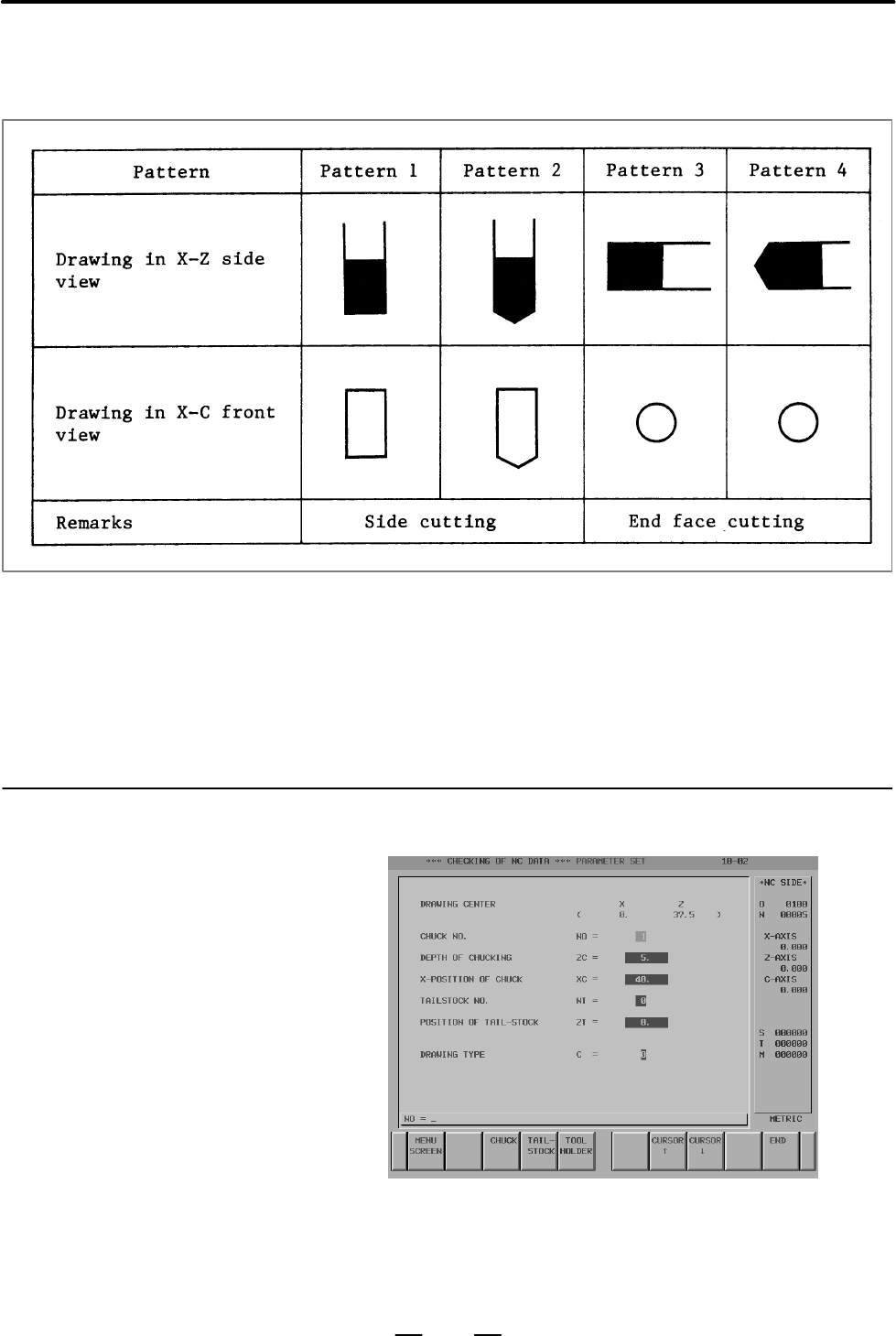

(3)Tool figure for milling machining

The following four patterns are prepared as the shape pattern of the

rotation tool for milling machining.

1) Drawing of a tool holder is done only in X–Z side view.

2) The center drill and the drill tool are drawn by pattern 2 and pattern

Tap and end mill tool are drawn by pattern 1 and pattern 3.

3) The painted out length of the tool tip on the X–Z side view is LT

value set to the tooling data. (In case of tapping tool, the length is

LT + LE.)

The next screen is displayed when the soft key “PARAMETER” is pushed

in C–axis FAPT animated screen.

The question “Drawing type C =” is displayed, when the condition in

C–axis FAPT animated screen explained in 3.2.1 is filled.

C = 1: C–axis FAPT animated screen

C = 0: Animated screen only by X–Z side view

3.2.2

Parameter Screen for

Animated Simulation
