C–AXIS FAPT FUNCTION

B–63304EN/02

1. PART FIGURE DEFINITION

(MENU 2)

428

(5)Warnings

WARNING

1 Be careful not to make the setting shown in Fig.1.5(b),

where a C–axis machining figure is on a plane which is not

machined. The system does not regard such setting as

being illegal.

If feed mode 2 is selected, the tool may strike against the

workpiece when holes b, c, and d are cut.

2 If the part figure definitions contain a C–axis part figure for

which a machining plane is entered, the process sequence

of machining definition must be determined carefully. In

Fig. 1.5 (a), for example, drilling must be specified after

milling. Even if drilling is programmed before milling, the

system does not regard this sequence as being illegal.

3 Whenever a machining method (2, 3) including pecking is

selected, and feed mode 1 is used for a C–axis drilling

process, pecking starts from the approach point, regardless

of the value set for the machining plane.

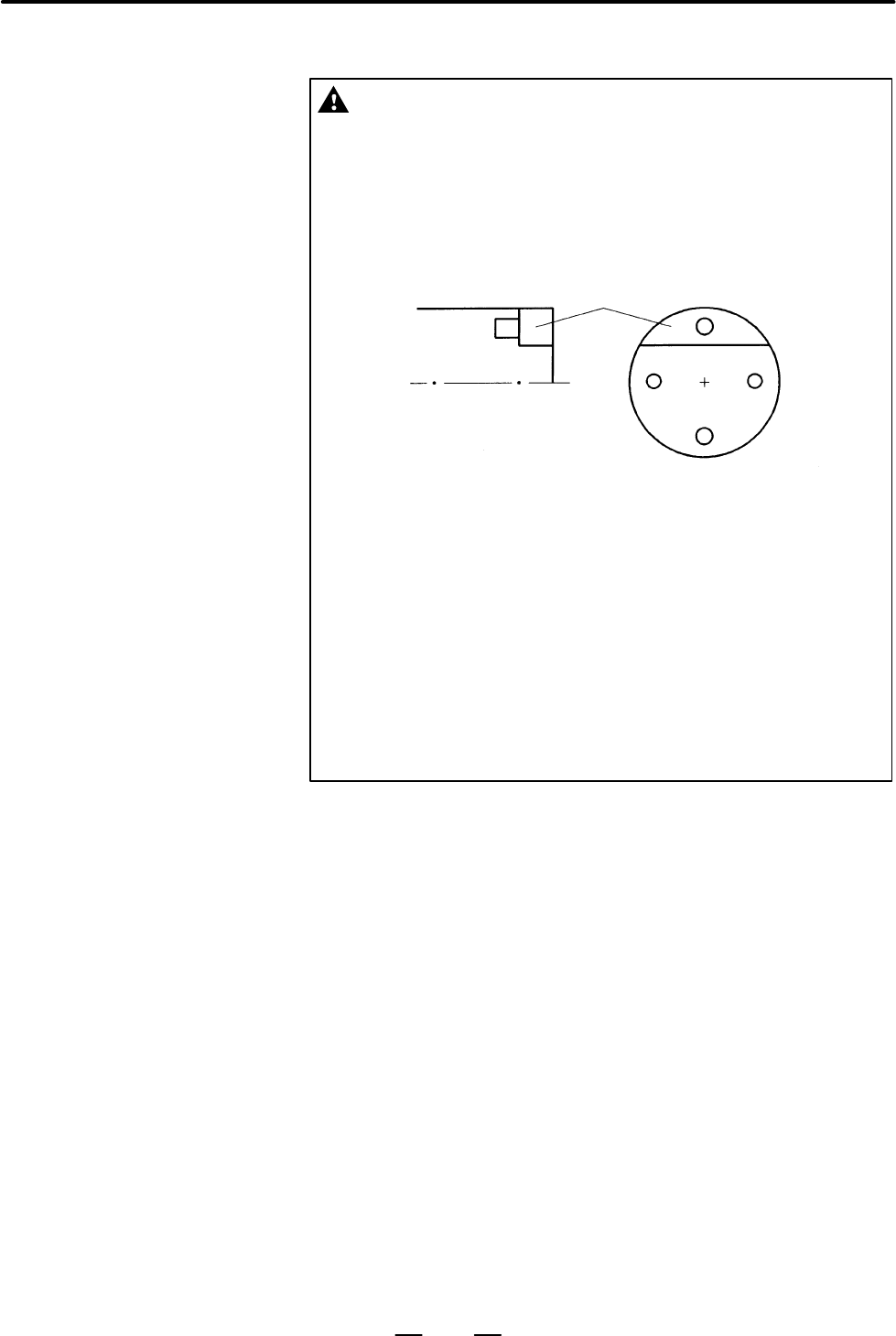

Fig. 1.5 (b)

Area cut by milling
