1. ANIMATED SIMULATION

FUNCTION B

ANIMATED SIMULATION FUNCTION B

715

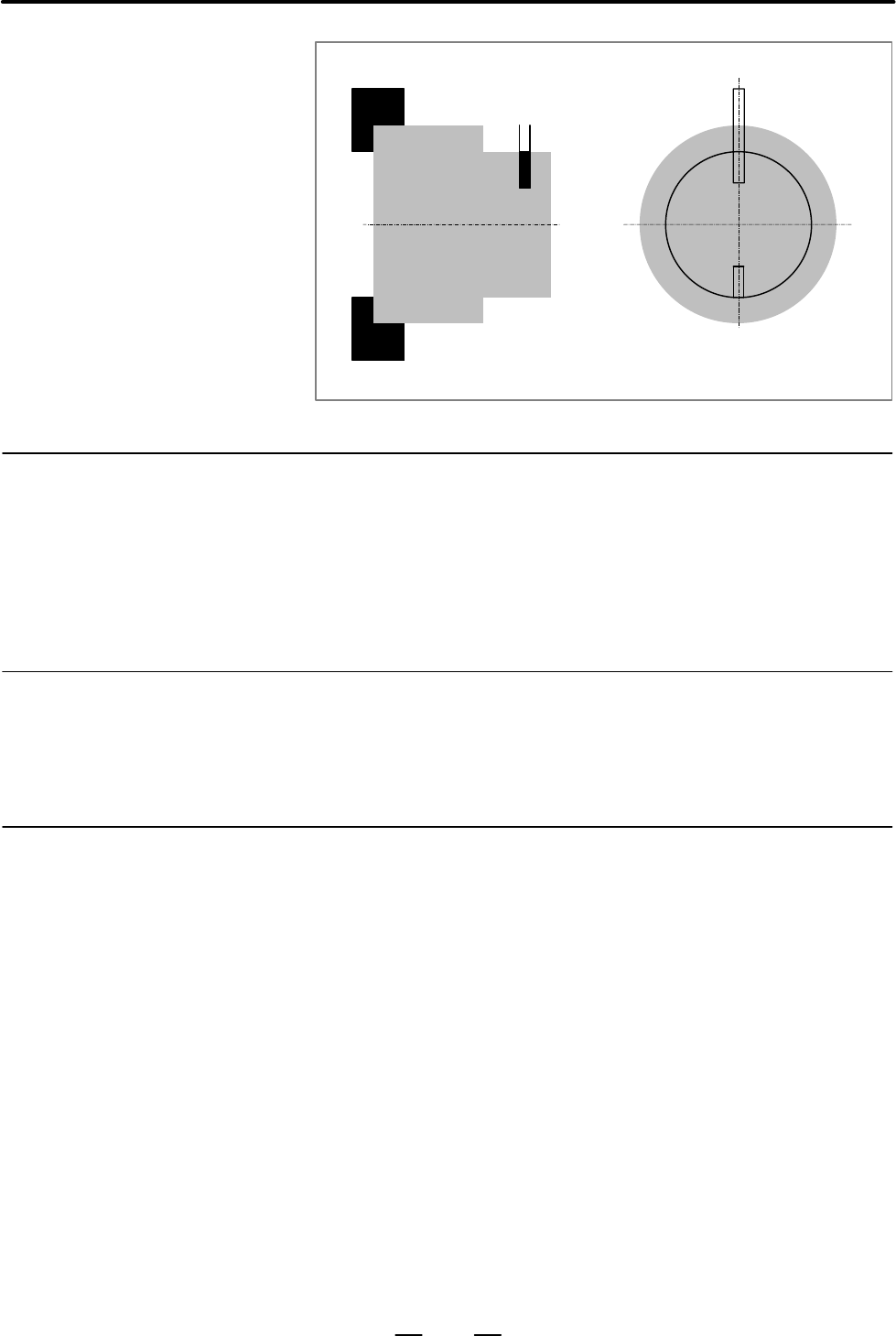

C–axis side drilling

During turning simulation, following interference is being monitored.

And if interference is detected, alam is indicated on the screen.

1) Interference between tool and chuck or tailstock.

2) Interference between tools of turret 1 and turret 2. (In case of two path

lathe simulation)

Interference is not checked during rapid traverse movement.

Direction of X–axis in the X–Z side view is determined in accordance

with the setting of the Drawing Format. Upward direction of X–axis in

the X–C front view always corresponds to the positive direction of

X–axsis, regardless of the setting of the Drawing Format.

In case of simulating 2–paths lathe, machining processes are simulated on

the screen as follows.

In the X–Z side view, tools of both turret 1 and turret 2 are drawn for both

turning and C–axis machining simulation. If simultaneous cutting by

both turret 1 and turret 2 tools, which can be programmed for only turning

process, is simulated, both turret 1 and turret 2 tools in this view move

simultaneously.

In the X–C front view, the motion of either one of the tools which is now

cutting the workpiece is simulated as described in section 2.1.5, only

while C–axis machining process. While turning process, no tool motion

is simulated in this view.

Refer to section 2.3, System Parameter, for the position of the turrets

which are drawn on the screen during the simulation.

1.1.6

Interference Check

1.1.7

Drawing Format

1.1.8

Simulation of 2–Paths

Lathe
