B–63304EN/02
2. CAUTIONS FOR USING
Symbolic FAPT
VARIOUS FUNCTIONS AND
PRECAUTIONS OF Symbolic FAPT
397

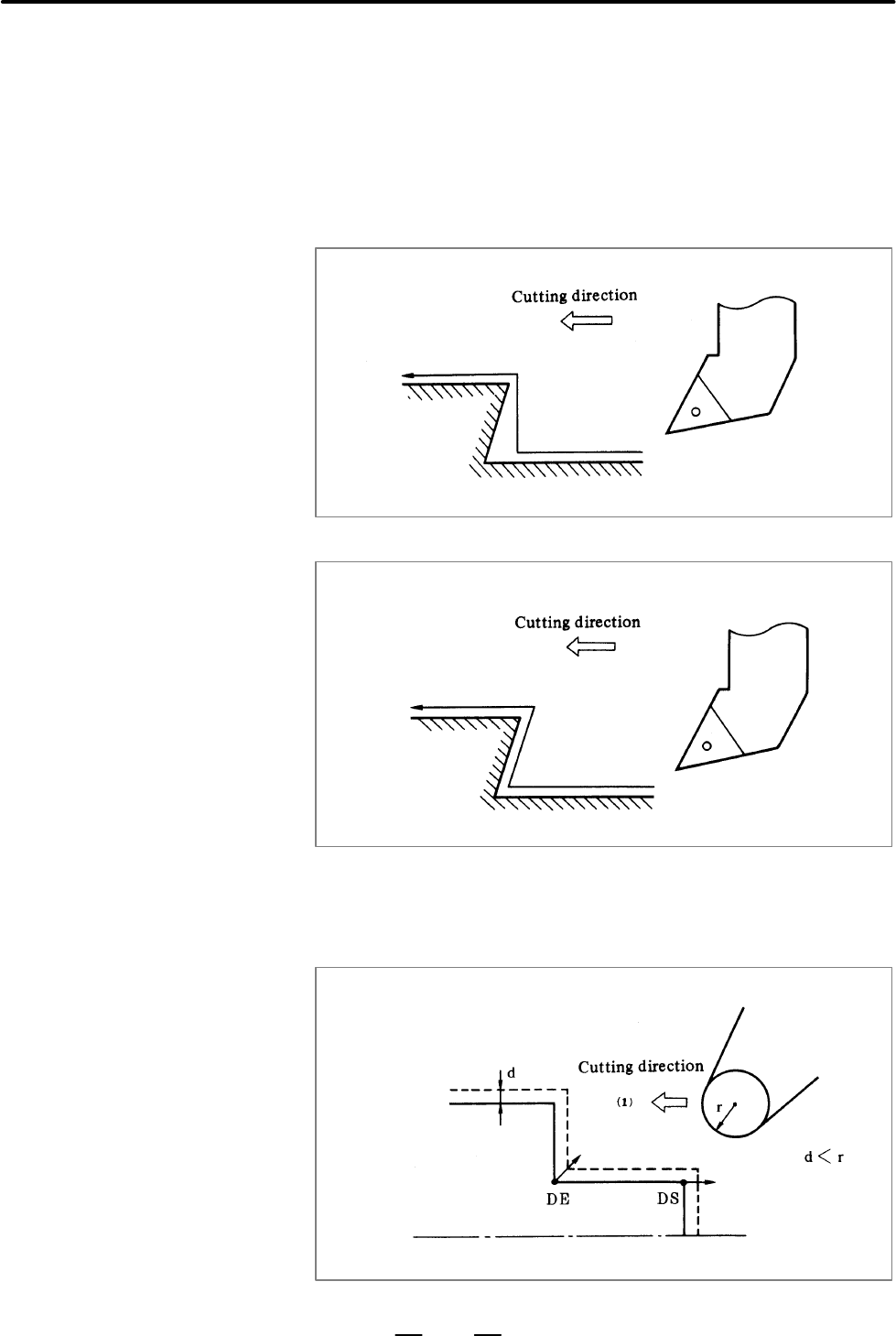

The overhung section can be cut as follows, using system parameter
No.0101.
System parameter No.0101 = 0: No pocketing is carried out.
1: Pocketing is carried out.
2: The bottom of overhung portion is
machined.
D For system parameter No.0101 = 0 or 1
D For system parameter No.0101 = 2
However, when system parameter No.0101 = 2, if the following
machining is defined, using a tool with a larger tool nose radius than the
surplus thickness, the portion remaining uncut occurs.
First cut the outer diameter portion. (1). . . . . . . .
2.10
CUTTING
OVERHUNG
PORTION
