B–63304EN/02
2. MACHINING DEFINITION
(MENU 4)
C–AXIS FAPT FUNCTION
431

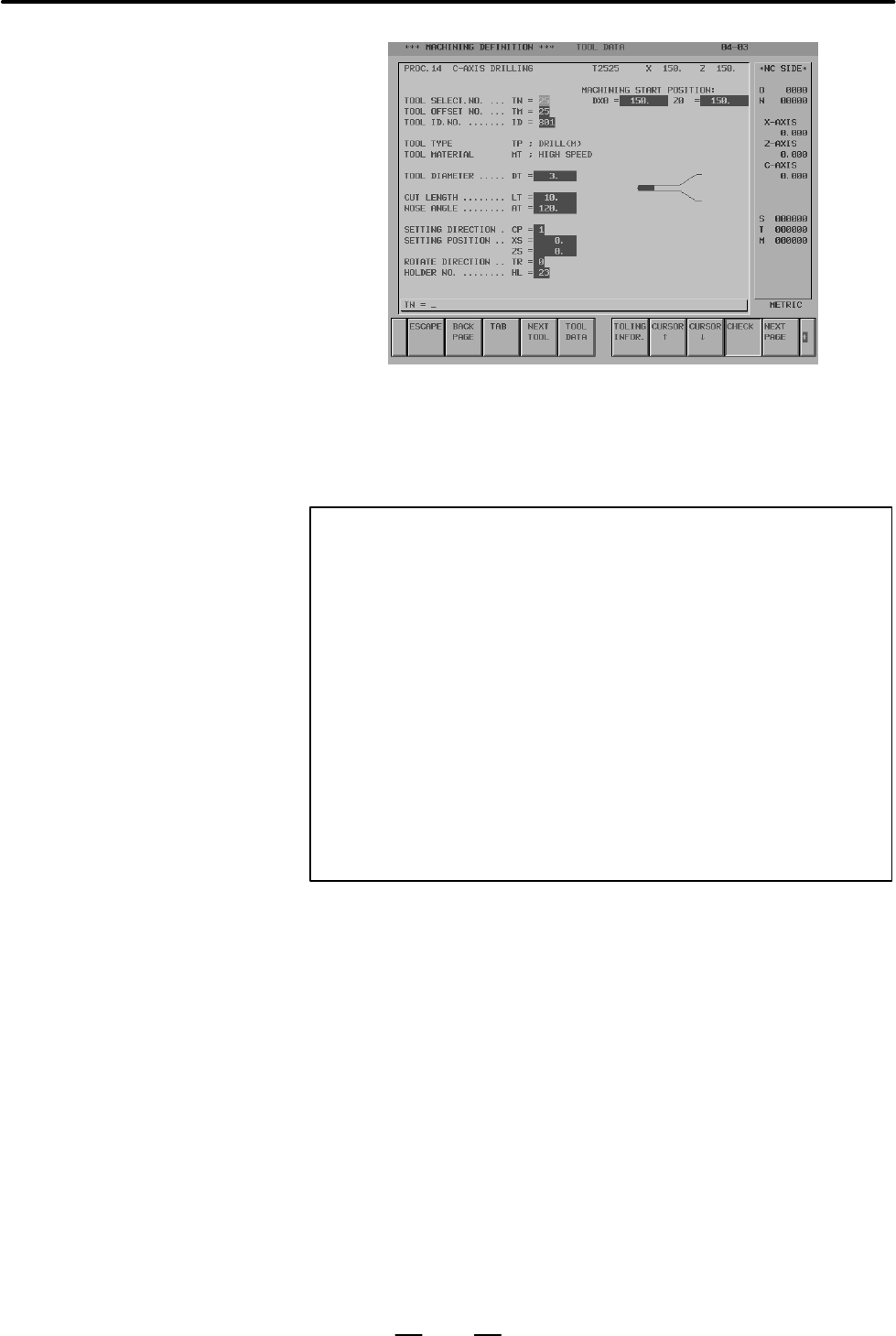

TURRET NO. TL = (Note 1) . . . . . . .
TOOL SELECT NO. TN =. .
TOOL OFFSET NO. TM =. .
TOOL ID NO. ID = (Note 2). . . . . . .
NOTE
1 The turret number prompt is displayed if there are more than
1 tool rests. The number of tool rests is to be set in No. MTF
1050.
2 The tool ID number (ID) to be input must have been
registered in tool data (see VI–2.1). If a tool ID number (ID)
not registered in tool data is input, a message “This ID is not
registered in tool data.” is displayed. Also if a tool ID number
having a tool type not compatible with the present process
is input, a message “The tool type of this ID is not compatible
with the present process.” is displayed. The registered tool
ID number is deleted from the tooling information if keyed
in as “DEL” “INPUT”.
When using a tool which has already been registered in the tooling
information, the other data is automatically displayed if the tool selection
number (TN) is input.
In new registration, the data of the tool configuration and that of setting
which have been registered in the tool data are displayed if the tool ID
number (ID) is input.
Display of tool figure data (The tool type (TP) and tool material (MT) are
displayed only; they cannot be changed.
(Center Drill)
TOOL TYPE TP; Center drill (M)
TOOL MATERIAL MT;
TOOL DIAMETER DT =. . . . . . . .
CUT WIDTH DS =. . . . . . . . . . . . .
CUT LENGTH LT = . . . . . . . . . . .
NOSE ANGLE AT =. . . . . . . . . . .
