C–AXIS FAPT FUNCTION

B–63304EN/02

2. MACHINING DEFINITION

(MENU 4)

436



In 16/18–TC, 16i/18i/21i–TA, and 16i/18i/21i–TB, the return speed in 

is twice the cutting speed in . In 15–TFB and 15–TTFB, the return

speed in  is the same as the cutting speed in . Reverse spindle

rotation is not performed at the bottom of the hole.

Note) The machining time is calculated, assuming that the return speed

in  is twice the cutting speed in .

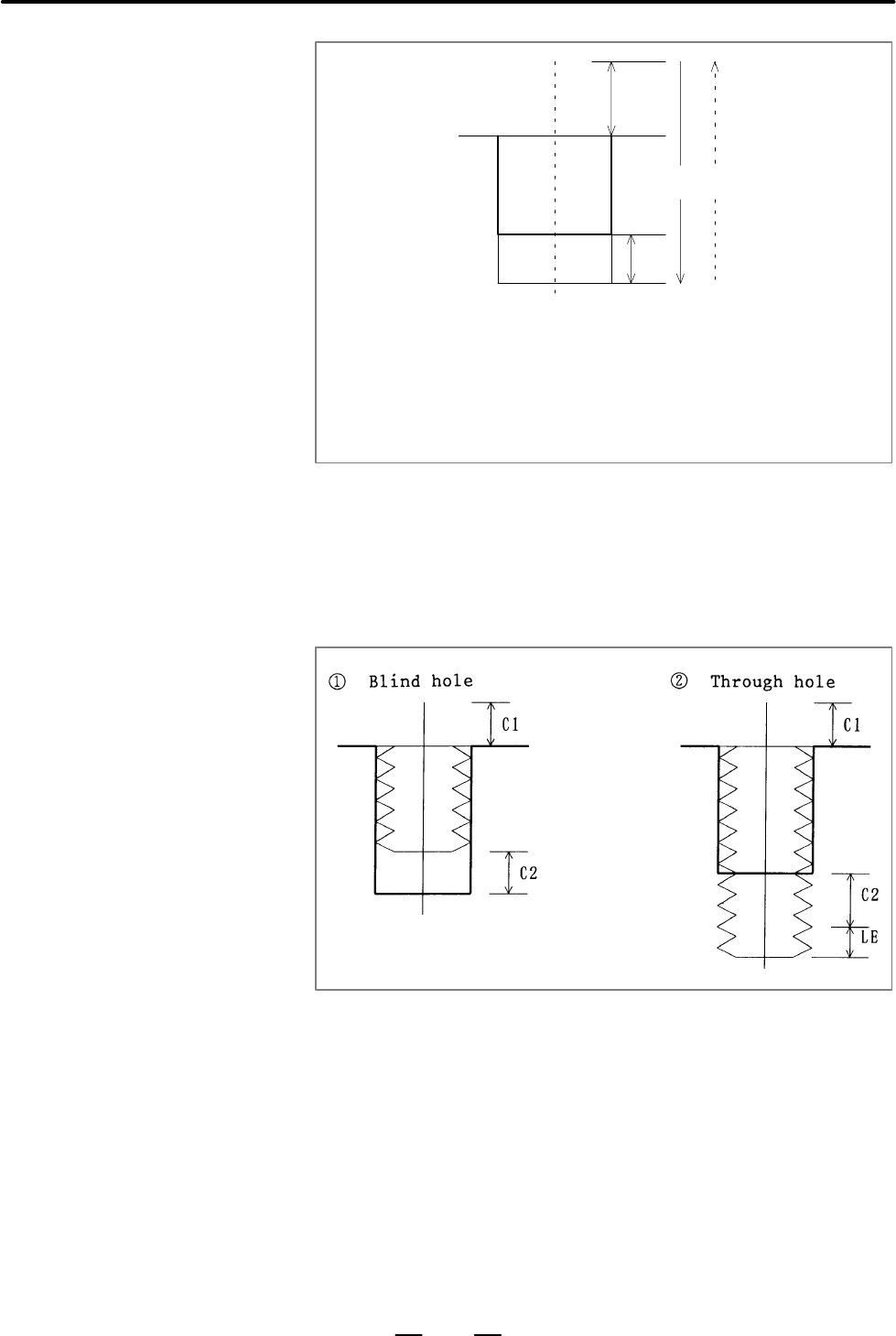

(3)Tapping

TYPE TP = Type of tapping . . . . . . . .

(1: Tapping cycle, 2: Rigid tapping cycle)

CLEARANCE C1 = Clearance 1 (mm or inch).

C2 = Clearance 2 (mm or inch)

RPM N = Tool rotation speed (rpm). . . . . . . . .
