CAP II FOR TWO–PATH LATHE

WITH TWO OPPOSING SPINDLES

B–63304EN/02

1. CAP II FOR TWO–PATH

LATHE WITH TWO

OPPOSING SPINDLES

748

D Set as “TL = 1” to specify the current machining step to be the

primary machining process. Set as “TL = 2” to specify it to be

the secondary machining process.

(b)Setting Tool Data for Turning process

D Set the tool data for the primary machining process referring to

the figures below noted as “Primary Turret”.

D Set the tool data for the secondary machining process referring

to the figures below noted as “Secondary Turret”.

Following tool figures are the examples in case drawing format 1

or 2 for lateral lathe is selected.

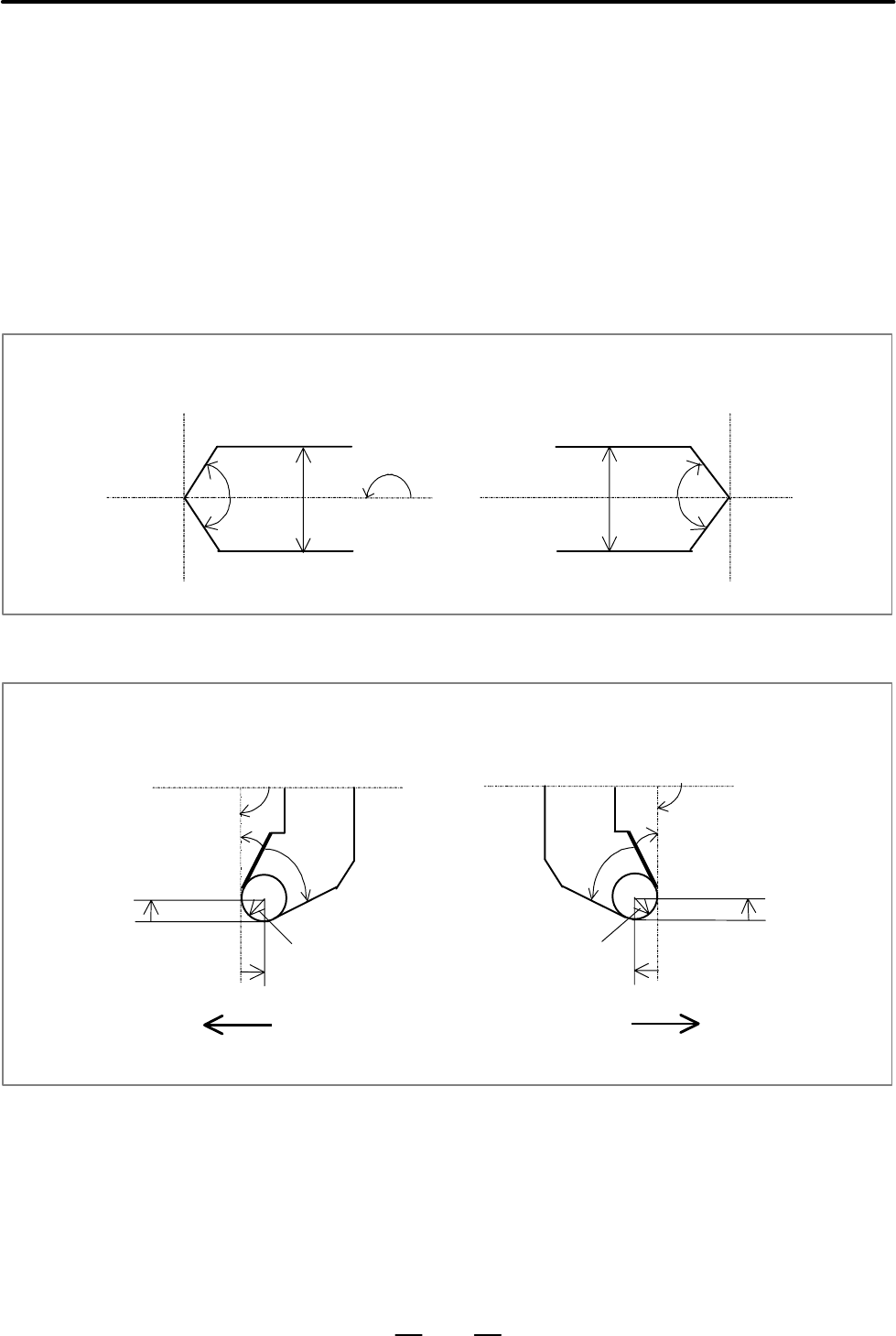

1) Center drilling/ Drilling

+DD

+AN

+DD

+AN

Primary Turret

Secondary Turret

AS = 180

AS = 0

2) OD Cutting

Normal tool

Cutting direction

Primary Turret Secondary Turret

AS=–90

AC–

AN–

XN+

ZN–

AC+

AN+

AS=–90

XN+

ZN+

Cutting direction

RN+
