PROGRAMMING AND
OPERATION BY Symbolic FAPT
B–63304EN/02
3. EXECUTION OF
Symbolic FAPT
64
NOTE
1 As a standard for a corner to be chamfered, set the
maximum angle to system parameter No.756. (Setting
range 0° t Angle x 180°) For example, if the angle is
set to 100, the cursor lights up as a chamfering corner with
100° or less angle. No cursor lights up for the portion more
than 100° angle.

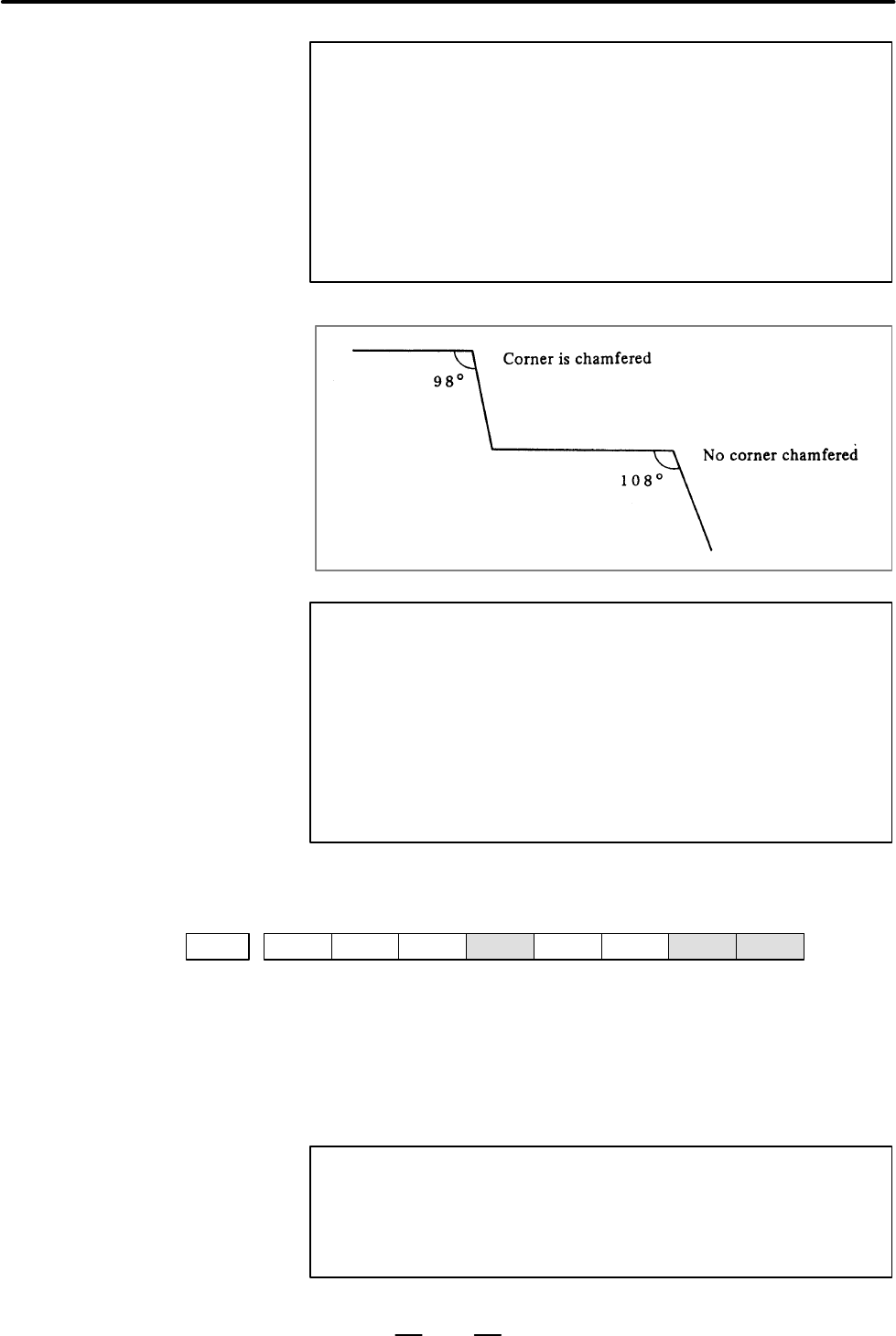

Example) when setting system parameter No.756 as 100:
NOTE
2 The initial value of Corner R amount can be set to system
parameter No.755. For example, if 0.2 is set to system
parameter No.755, when the control asks the chamfering
amount, the numeral 0.2 is entered as the initial value.
The inquiry for “SURFACE ROUGHNESS” can be omitted.
(System parameter No.0010) When omitted, “Standard
Surface Roughness” is adopted for surface roughness.
#7
010
#6 #5 #4 #3 #2 #1 #0
Bit 0 All surface roughness
Bit 1 Surface roughness for corner C
Bit 4 Surface roughness for corner R
0 : The inquiry is not omitted.
1 : The inquiry is omitted.
NOTE
3 No neck or groove portion is chamfered.
The corner for which thread cutting is designated is
chamfered.
Related system parameter
